CD74AC245 Series

Octal Non-Inverting Bus Transceivers with 3-State Outputs

Catalog

Octal Non-Inverting Bus Transceivers with 3-State Outputs

Part	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Package / Case	Package / Case [y]	Package / Case [y]	Output Type	Number of Bits per Element	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output High, Low	Number of Elements	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [x]	Package / Case	Package / Case
Texas Instruments CD74AC245M	20-SOIC	5.5 V	1.5 V	Surface Mount	20-SOIC	0.295 in	7.5 mm	3-State	8	125 °C	-55 °C	24 mA	1
Texas Instruments SN74AC245DWR	20-SOIC	6 V	2 V	Surface Mount	20-SOIC	0.295 in	7.5 mm	3-State	8			24 mA	1	85 °C	-40 °C
Texas Instruments SN74AC245PW	20-TSSOP	6 V	2 V	Surface Mount	20-TSSOP	4.4 mm		3-State	8			24 mA	1	85 °C	-40 °C	0.173 in

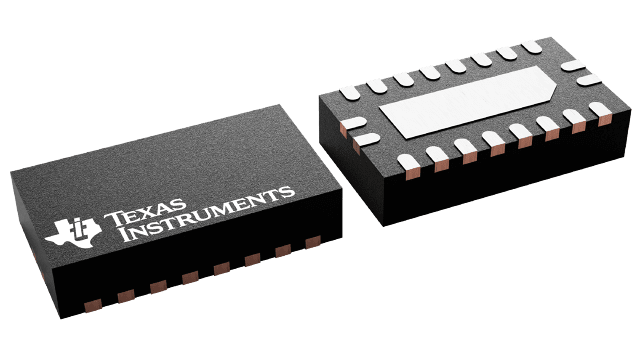

Texas Instruments SN74AC245RKSR	20-VQFN (2.5x4.5)	6 V	2 V	Surface Mount Wettable Flank	20-VFQFN Exposed Pad			3-State	8			24 mA	1	85 °C	-40 °C
Texas Instruments SN74AC245DW	20-SOIC	6 V	2 V	Surface Mount	20-SOIC	0.295 in	7.5 mm	3-State	8			24 mA	1	85 °C	-40 °C
Texas Instruments CD74AC245M96	20-SOIC	5.5 V	1.5 V	Surface Mount	20-SOIC	0.295 in	7.5 mm	3-State	8	125 °C	-55 °C	24 mA	1
Texas Instruments CD74AC245EE4	20-PDIP	5.5 V	1.5 V	Through Hole	20-DIP			3-State	8	125 °C	-55 °C	24 mA	1				7.62 mm	0.3 in
Texas Instruments CD74AC245E	20-PDIP	5.5 V	1.5 V	Through Hole	20-DIP			3-State	8	125 °C	-55 °C	24 mA	1				7.62 mm	0.3 in
Texas Instruments SN74AC245NSR	20-SO	6 V	2 V	Surface Mount	20-SOIC			3-State	8			24 mA	1	85 °C	-40 °C		5.3 mm	0.209 "
Texas Instruments CD74AC245EG4	20-PDIP	5.5 V	1.5 V	Through Hole	20-DIP			3-State	8	125 °C	-55 °C	24 mA	1				7.62 mm	0.3 in

Catalog

Octal Non-Inverting Bus Transceivers with 3-State Outputs

Key Features

• Buffered inputsTypical propagation delay4ns at VCC = 5V, TA = 25°C, CL = 50pFSCR-latchup-resistant CMOS process and circuit designSpeed of bipolar FAST™/AS/S with signiﬁcantly reduced power consumptionBalanced propagation delaysAC types feature 1.5V to 5.5V operation and balanced noise immunity at 30% of the supply± 24mA output drive currentFanout to 15 FAST™ ICsDrives 50Ω transmission lineBuffered inputsTypical propagation delay4ns at VCC = 5V, TA = 25°C, CL = 50pFSCR-latchup-resistant CMOS process and circuit designSpeed of bipolar FAST™/AS/S with signiﬁcantly reduced power consumptionBalanced propagation delaysAC types feature 1.5V to 5.5V operation and balanced noise immunity at 30% of the supply± 24mA output drive currentFanout to 15 FAST™ ICsDrives 50Ω transmission line

Description

The ’AC245 octal bus transceivers are designed for asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements. The devices allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated. The ’AC245 octal bus transceivers are designed for asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements. The devices allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated.
