172763 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

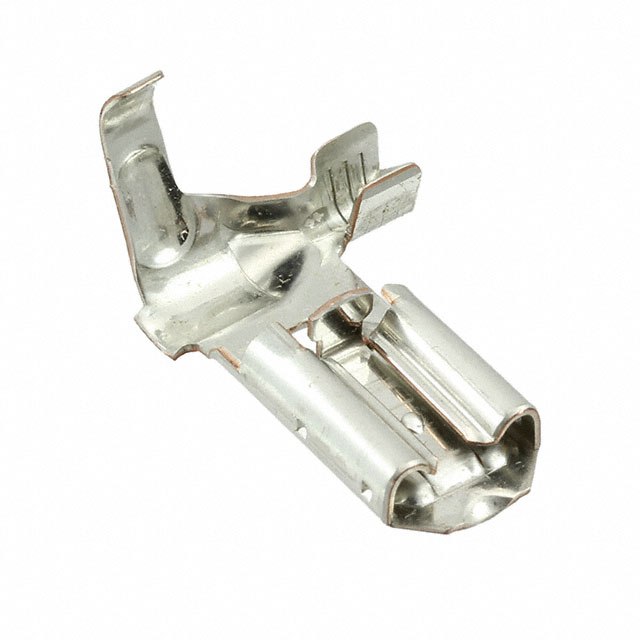

CONN QC RCPT 14-18AWG 0.250
| Part | Tab Width | Tab Width | Contact Finish | Tab Thickness | Tab Thickness | Tab Length | Tab Length | Contact Material | Insulation Diameter [Max] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Min] | Termination | Terminal Type | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] | Gender | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 6.35 mm | 0.25 in | Tin | 0.032 in | 0.81 mm | 7.8 mm | 0.307 in | Copper Alloy | 0.205 in | 5.21 mm | 2.79 mm | 0.11 in | Crimp | Angled - 90° Flag | Free Hanging (In-Line) Right Angle | 14 AWG | 18 AWG | Female | Non-Insulated |
