SAN.M08 Series
Manufacturer: LEMO
Beta
⌘K

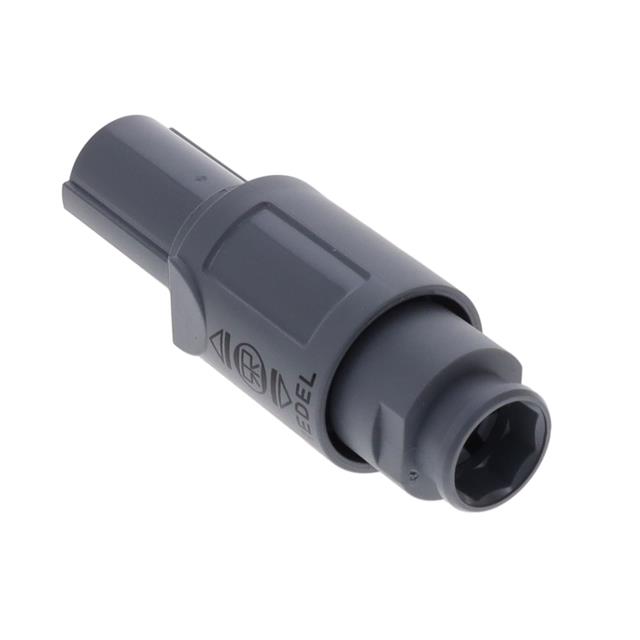

CONN PLUG MALE 8P GOLD SLDR CUP
| Part | Ingress Protection | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Insert Material | Primary Material | Shell Material | Features | Shell Size - Insert | Fastening Type | Shielding | Contact Finish - Mating | Applications | Number of Positions | Color | Backshell Material, Plating | Cable Opening | Cable Opening [Max] | Cable Opening [Min] | Orientation | Mounting Type | Cable Opening [Max] | Cable Opening [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | IP50 - Dust Protected | Plug Male Pins | 170 °C | -50 °C | 5 A | Polyetheretherketone (PEEK) | Plastic | Sulfone | Backshell | M08 | Push-Pull | Unshielded | Gold | Automotive Industrial Medical Testing Equipment & Measurement | 8 | Gray | Sulfone | 4 mm 5.2 mm | 0.205 in | 0.157 in | N (Normal) | Free Hanging (In-Line) | ||
LEMO | IP50 - Dust Protected | Plug Male Pins | 170 °C | -50 °C | 5 A | Polyetheretherketone (PEEK) | Plastic | Sulfone | Backshell | M08 | Push-Pull | Unshielded | Gold | Automotive Industrial Medical Testing Equipment & Measurement | 8 | Blue Gray | Sulfone | 0.256 in | 0.209 in | N (Normal) | Free Hanging (In-Line) | 6.5 mm | 5.3 mm | |
LEMO | IP50 - Dust Protected | Plug Male Pins | 170 °C | -50 °C | 5 A | Polyetheretherketone (PEEK) | Plastic | Sulfone | Backshell | M08 | Push-Pull | Unshielded | Gold | Automotive Industrial Medical Testing Equipment & Measurement | 8 | White | Sulfone | 0.256 in | 0.209 in | N (Normal) | Free Hanging (In-Line) | 6.5 mm | 5.3 mm | |
 LEMO | IP50 - Dust Protected | Plug Male Pins | 170 °C | -50 °C | 5 A | Polyetheretherketone (PEEK) | Plastic | Sulfone | Backshell | M08 | Push-Pull | Unshielded | Gold | Automotive Industrial Medical Testing Equipment & Measurement | 8 | Gray | Sulfone | 0.256 in | 0.209 in | N (Normal) | Free Hanging (In-Line) | 6.5 mm | 5.3 mm |
