TPS54610-EP Series
Enhanced Product 3-V To 6-V Input, 6-A Output Synchronous Buck Pwm Switcher W/ Integr. Fets
Manufacturer: Texas Instruments
Catalog
Enhanced Product 3-V To 6-V Input, 6-A Output Synchronous Buck Pwm Switcher W/ Integr. Fets
Key Features
• Controlled BaselineOne Assembly/Test Site, One Fabrication SiteExtended Temperature Performance of -55°C to 125°CEnhanced Diminishing Manufacturing Sources (DMS) SupportEnhanced Product-Change NotificationQualification Pedigree(1)30 m, 12 A Peak MOSFET Switches for High Efficiency at 6 A Continuous Output Source or Sink CurrentAdjustable Output Voltage Down to 0.9 V With 1% AccuracyWide PWM Frequency: Fixed 350 kHz, 550 kHz or Adjustable 280 kHz to 700 kHzSynchronizable to 700 kHzLoad Protected by Peak Current Limit and Thermal ShutdownIntegrated Solution Reduces Board Area and Component CountAPPLICATIONSLow-Voltage, High-Density Distributed Power SystemsPoint-of-Load Regulation for High-Performance DSPs, FPGAs, ASICs, and MicroprocessorsBroadband, Networking, and Optical Communications InfrastructurePortable Computing/Notebook PCs(1)Component qualification in accordance with JEDEC and industry standards to ensure reliable operation over an extended temperature range. This includes, but is not limited to, Highly Accelerated Stress Test (HAST) or biased 85/85, temperature cycle, autoclave or unbiased HAST, electromigration, bond intermetallic life, and mold compound life. Such qualification testing should not be viewed as justifying use of this component beyond specified performance and environmental limits.SWIFT, PowerPAD are trademarks of Texas Instruments.Controlled BaselineOne Assembly/Test Site, One Fabrication SiteExtended Temperature Performance of -55°C to 125°CEnhanced Diminishing Manufacturing Sources (DMS) SupportEnhanced Product-Change NotificationQualification Pedigree(1)30 m, 12 A Peak MOSFET Switches for High Efficiency at 6 A Continuous Output Source or Sink CurrentAdjustable Output Voltage Down to 0.9 V With 1% AccuracyWide PWM Frequency: Fixed 350 kHz, 550 kHz or Adjustable 280 kHz to 700 kHzSynchronizable to 700 kHzLoad Protected by Peak Current Limit and Thermal ShutdownIntegrated Solution Reduces Board Area and Component CountAPPLICATIONSLow-Voltage, High-Density Distributed Power SystemsPoint-of-Load Regulation for High-Performance DSPs, FPGAs, ASICs, and MicroprocessorsBroadband, Networking, and Optical Communications InfrastructurePortable Computing/Notebook PCs(1)Component qualification in accordance with JEDEC and industry standards to ensure reliable operation over an extended temperature range. This includes, but is not limited to, Highly Accelerated Stress Test (HAST) or biased 85/85, temperature cycle, autoclave or unbiased HAST, electromigration, bond intermetallic life, and mold compound life. Such qualification testing should not be viewed as justifying use of this component beyond specified performance and environmental limits.SWIFT, PowerPAD are trademarks of Texas Instruments.
Description
AI
As a member of the SWIFT™ family of dc/dc regulators, the TPS54610 low-input voltage high-output current synchronous buck PWM converter integrates all required active components. Included on the substrate with the listed features are a true, high-performance, voltage error amplifier that enables maximum performance and flexibility in choosing the output filter L and C components, an under-voltage-lockout circuit to prevent start-up until the input voltage reaches 3 V, an internally or externally set slow-start circuit to limit inrush currents, and a power good output useful for processor/logic reset, fault signaling, and supply sequencing.

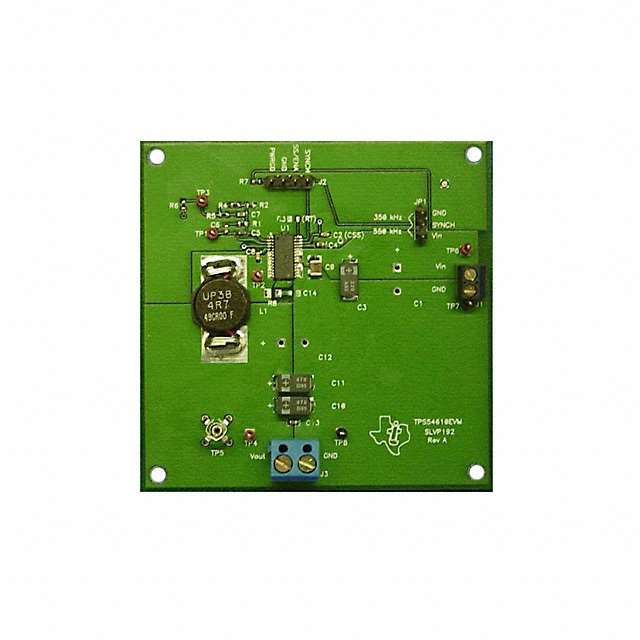

The TPS54610 is available in a thermally enhanced 28-pin TSSOP (PWP) PowerPAD™ package, which eliminates bulky heatsinks. Texas Instruments provides evaluation modules and the SWIFT™ designer software tool to aid in quickly achieving high-performance power supply designs to meet aggressive equipment development cycles.
As a member of the SWIFT™ family of dc/dc regulators, the TPS54610 low-input voltage high-output current synchronous buck PWM converter integrates all required active components. Included on the substrate with the listed features are a true, high-performance, voltage error amplifier that enables maximum performance and flexibility in choosing the output filter L and C components, an under-voltage-lockout circuit to prevent start-up until the input voltage reaches 3 V, an internally or externally set slow-start circuit to limit inrush currents, and a power good output useful for processor/logic reset, fault signaling, and supply sequencing.
The TPS54610 is available in a thermally enhanced 28-pin TSSOP (PWP) PowerPAD™ package, which eliminates bulky heatsinks. Texas Instruments provides evaluation modules and the SWIFT™ designer software tool to aid in quickly achieving high-performance power supply designs to meet aggressive equipment development cycles.
