226EM1 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Switch Travel	Switch Function	Actuator Orientation	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Termination Style	Circuit	Outline [x]	Outline [y]	Mounting Type	Illumination	Contact Rating @ Voltage	Actuator Length, Right Angle	Features	Operating Force

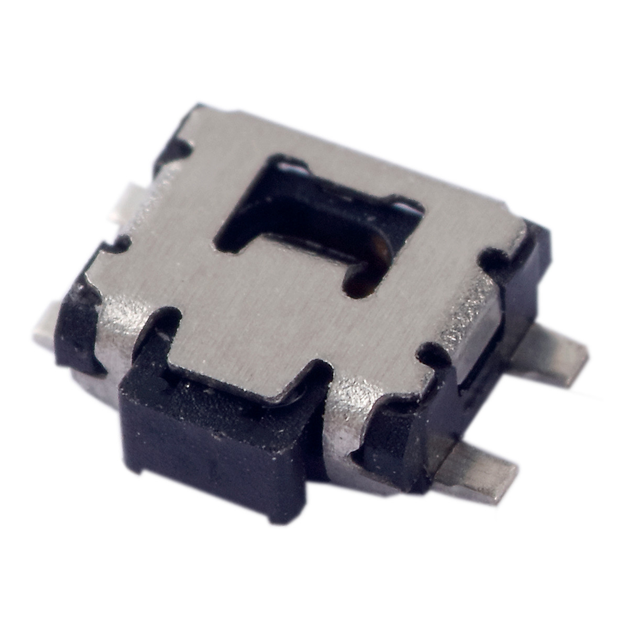

Tusonix a Subsidiary of CTS Electronic Components 226EM1SAAR	0.2 mm	Off-Mom	Side Actuated	Rectangular Button	85 °C	-40 °C	100000 Cycles	Gull Wing	SPST-NO	4.7 mm	2.9 mm	Surface Mount Right Angle	Non-Illuminated	0.05 A 12 VDC	3.55 mm	Tactile Feedback

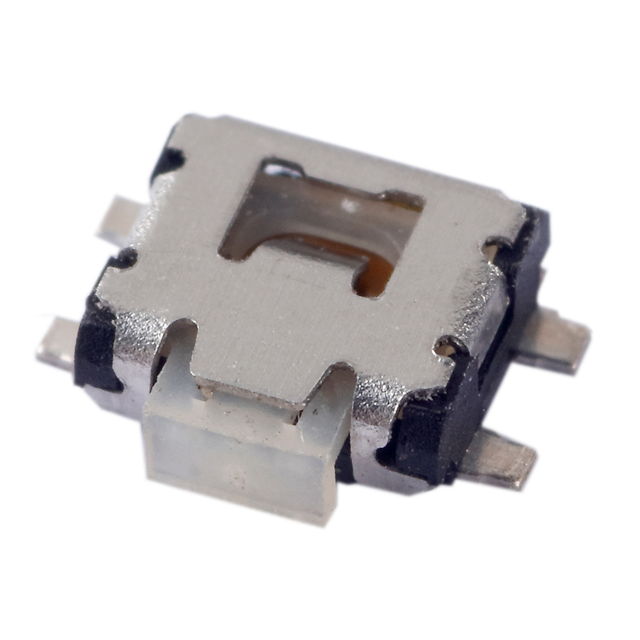

Tusonix a Subsidiary of CTS Electronic Components 226EM1SABR	0.2 mm	Off-Mom	Side Actuated	Rectangular Button	85 °C	-40 °C	100000 Cycles	Gull Wing	SPST-NO	4.7 mm	2.9 mm	Surface Mount Right Angle	Non-Illuminated	0.05 A 12 VDC	3.55 mm	Tactile Feedback	220 gf
