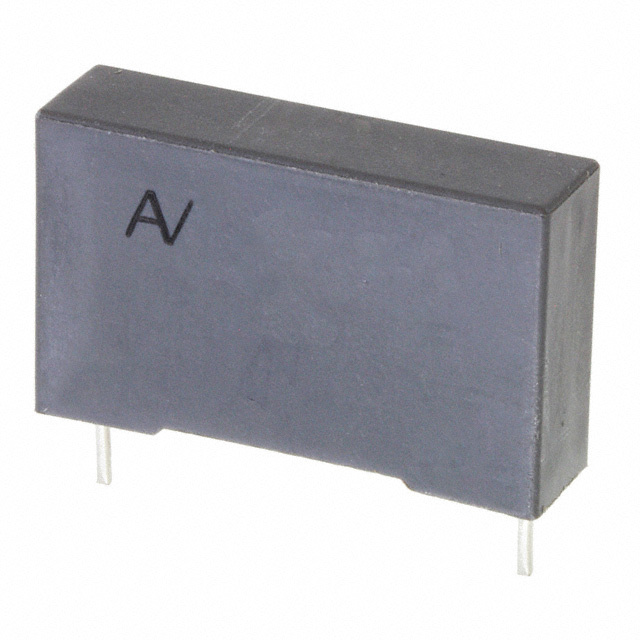

R75RI Series

Manufacturer: KEMET

Catalog

POWER FILM CAPACITOR, METALLIZED PP, RADIAL BOX - 2 PIN, 0.018 ΜF, ± 5%, HIGH FREQUENCY

Part	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Dielectric Material	Ratings	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Mounting Type	Package / Case	Voltage Rating - AC	Termination	Voltage Rating - DC	Voltage Rating - DC	Applications	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Size / Dimension [y]
KEMET R75RI218050H3J	5 %	0.295 in	0.709 in	18 mm	7.5 mm	Polypropylene (PP) Metallized	AEC-Q200	44.2 mOhms	-55 C	125 °C	0.018 µF	Through Hole	Radial	600 V	PC Pins	1250 V	1.25 kV	Automotive High Frequency Switching High Pulse DV/DT	15 mm	0.591 in
KEMET R75RI212050H3J	5 %	0.236 "	0.709 in	18 mm	6 mm	Polypropylene (PP) Metallized	AEC-Q200	66.3 mOhms	-55 C	125 °C	0.012 µF	Through Hole	Radial	600 V	PC Pins	1250 V	1.25 kV	Automotive High Frequency Switching High Pulse DV/DT	15 mm	0.591 in	0.476 "	12.1 mm
KEMET R75RI239050H3J	5 %	0.394 in	0.709 in	18 mm	10 mm	Polypropylene (PP) Metallized	AEC-Q200	20.4 mOhms	-55 C	125 °C	0.039 µF	Through Hole	Radial	600 V	PC Pins	1250 V	1.25 kV	Automotive High Frequency Switching High Pulse DV/DT	15 mm	0.591 in		16.1 mm	0.634 "
KEMET R75RI256050H3J	5 %	0.433 in	0.709 in	18 mm	11 mm	Polypropylene (PP) Metallized	AEC-Q200	19.9 mOhms	-55 C	125 °C	56000 pF	Through Hole	Radial	600 V	PC Pins	1250 V	1.25 kV	Automotive High Frequency Switching High Pulse DV/DT	15 mm	0.591 in	0.752 "	19.1 mm
KEMET R75RI2150DQ30J	5 %	0.236 "	0.709 in	18 mm	6 mm	Polypropylene (PP) Metallized	AEC-Q200		-55 C	105 ░C	15000 pF	Through Hole	Radial	600 V	PC Pins	1250 V	1.25 kV	Automotive High Frequency Switching High Pulse DV/DT	15 mm	0.591 in	0.476 "	12.1 mm
KEMET R75RI227050H3J	5 %	0.295 in	0.709 in	18 mm	7.5 mm	Polypropylene (PP) Metallized	AEC-Q200	29.5 mOhms	-55 C	125 °C	0.027 µF	Through Hole	Radial	600 V	PC Pins	1250 V	1.25 kV	Automotive High Frequency Switching High Pulse DV/DT	15 mm	0.591 in			0.575 in	14.6 mm
KEMET R75RI182050H3J	5 %	0.197 "	0.709 in	18 mm		Polypropylene (PP) Metallized	AEC-Q200	97 mOhm	-55 C	125 °C		Through Hole	Radial	600 V	PC Pins	1250 V	1.25 kV	Automotive High Frequency Switching High Pulse DV/DT	15 mm	0.591 in	0.437 in			11.1 mm	5 mm
KEMET R75RI210050H3J	5 %	0.197 "	0.709 in	18 mm		Polypropylene (PP) Metallized	AEC-Q200	79.6 mOhms	-55 C	125 °C	10000 pF	Through Hole	Radial	600 V	PC Pins	1250 V	1.25 kV	Automotive High Frequency Switching High Pulse DV/DT	15 mm	0.591 in	0.437 in			11.1 mm	5 mm
