MURS1640 Series

Catalog

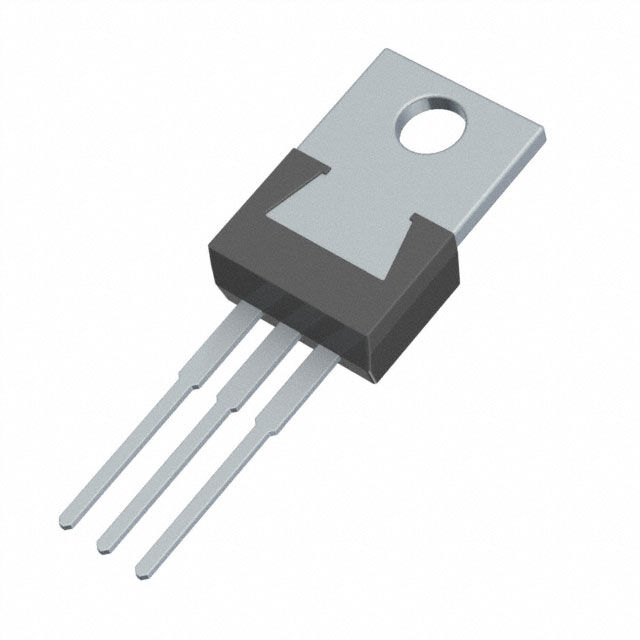

DIODE ARRAY GP 400V 16A TO-220AB

Part	Package / Case	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Technology	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Reverse Recovery Time (trr)	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Diode Configuration	Current - Average Rectified (Io) (per Diode)
Micro Commercial Components MURS1640CT-BP	TO-220-3	150 °C	-55 °C	10 µA	Standard	1.25 V	Through Hole	35 ns	TO-220AB	400 V	200 mA 500 ns	1 Pair Common Cathode	16 A
Micro Commercial Components MURS1640FCTA-BP	TO-220-3 Isolated Tab	150 °C	-55 °C	5 µA	Standard	1.25 V	Through Hole	35 ns	ITO-220AB	400 V	200 mA 500 ns	1 Pair Common Cathode	16 A
Micro Commercial Components MURS1640CT-BP	TO-220-3	150 °C	-55 °C	10 µA	Standard	1.25 V	Through Hole	35 ns	TO-220AB	400 V	200 mA 500 ns	1 Pair Common Cathode	16 A
