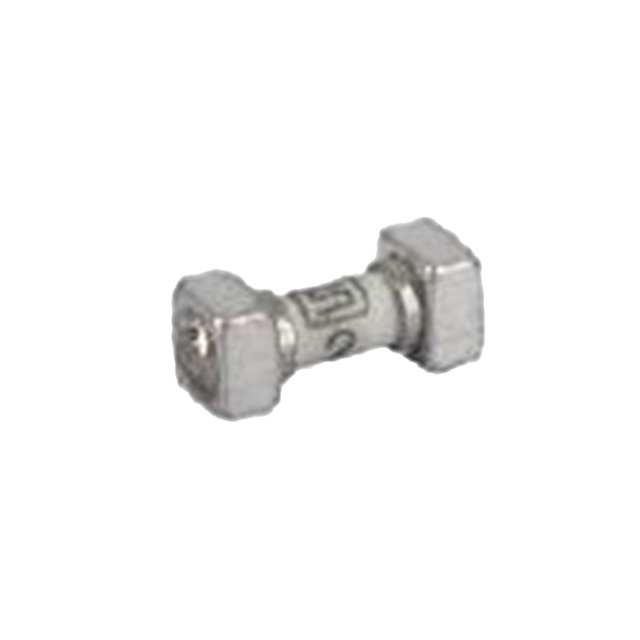

MKF Series

Catalog

SURFACE MOUNT FUSES MKF SURFACE MOUNT FUSE 0.063A

Part	Current Rating (Amps)	Mounting Type	Fuse Type	Operating Temperature [Min]	Operating Temperature [Max]	Response Time	Voltage Rating - DC	Package / Case	Melting I²t	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Breaking Capacity @ Rated Voltage	Voltage Rating - AC	Melting I˛t
SCHURTER Inc. 7010.9900.03	63 mA	Surface Mount	Board Mount (Cartridge Style Excluded)	-55 C	85 °C	Fast Blow	125 VDC	2-SMD Square End Block	0.00022 I²t	0.276 "	7 mm	0.1 in	0.1 "	0.1 in	2.54 mm	300 A	125 V
SCHURTER Inc. 7010.9907.03	1.5 A	Surface Mount	Board Mount (Cartridge Style Excluded)	-55 C	85 °C	Fast Blow	125 VDC	2-SMD Square End Block	0.25	0.276 "	7 mm	0.1 in	0.1 "	0.1 in	2.54 mm	300 A	125 V
SCHURTER Inc. 7010.9903.03	375 mA	Surface Mount	Board Mount (Cartridge Style Excluded)	-55 C	85 °C	Fast Blow	125 VDC	2-SMD Square End Block	0.012	0.276 "	7 mm	0.1 in	0.1 "	0.1 in	2.54 mm	300 A	125 V	0.012
SCHURTER Inc. 7010.9908.03	2 A	Surface Mount	Board Mount (Cartridge Style Excluded)	-55 C	85 °C	Fast Blow	125 VDC	2-SMD Square End Block	0.72	0.276 "	7 mm	0.1 in	0.1 "	0.1 in	2.54 mm	300 A	125 V
