CM35-1 Series

Catalog

TEM 12.19X5.99X1.65MM

Part	Voltage - Max	Maximum Power Dissipation (Qmax)	Type	Resistance	Current - Max	Height	Size / Dimension Shape	Size / Dimension Width	Size / Dimension Length	Delta Tmax	Number of Stages	Features	Operating Temperature
Marlow Industries, Inc. CM35-1.9-08AN	4.2 V	5.2 W	TEC (Thermoelectric Cooler)	1.87 Ohms	1.9 A	1.71 mm	Rectangular	5.99 mm	12.19 mm	71 °C	1	Exterior Metallization (Both Sides) Lead Wires	85 °C

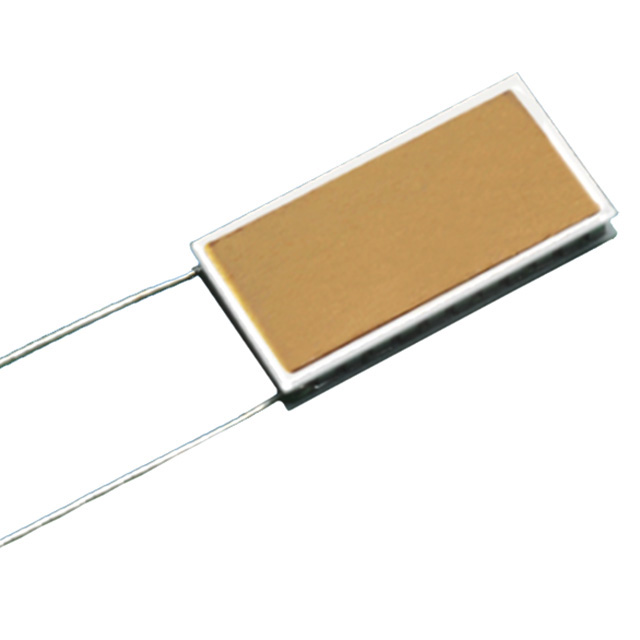

Marlow Industries, Inc. CM35-1.9-01AC	4.2 V	5.2 W	TEC (Thermoelectric Cooler)	1.87 Ohms	1.9 A	1.65 mm	Rectangular	5.99 mm	12.19 mm	71 °C	1	Exterior Metallization (Both Sides) Lead Wires	85 °C
Marlow Industries, Inc. CM35-1.9-04AC	4.2 V	5.2 W	TEC (Thermoelectric Cooler)	1.87 Ohms	1.9 A	1.65 mm	Rectangular	5.99 mm	12.19 mm	71 °C	1	Exterior Metallization (Both Sides) Lead Wires	85 °C
Marlow Industries, Inc. CM35-1.9-07AC	4.2 V	5.2 W	TEC (Thermoelectric Cooler)	1.87 Ohms	1.9 A	1.65 mm	Rectangular	5.99 mm	12.19 mm	71 °C	1	Exterior Metallization (Both Sides Pre-Tinned) Lead Wires	85 °C
Marlow Industries, Inc. CM35-1.9-05AC	4.2 V	5.2 W	TEC (Thermoelectric Cooler)	1.87 Ohms	1.9 A	1.65 mm	Rectangular	5.99 mm	12.19 mm	71 °C	1	Exterior Metallization (Both Sides Pre-Tinned) Lead Wires	85 °C
Marlow Industries, Inc. CM35-1.9-09AN	4.2 V	5.2 W	TEC (Thermoelectric Cooler)	1.87 Ohms	1.9 A	1.67 mm	Rectangular	5.99 mm	12.19 mm	71 °C	1	Lead Wires	85 °C
Marlow Industries, Inc. CM35-1.9-06AC	4.2 V	5.2 W	TEC (Thermoelectric Cooler)	1.87 Ohms	1.9 A	1.65 mm	Rectangular	5.99 mm	12.19 mm	71 °C	1	Exterior Metallization (Both Sides Pre-Tinned) Lead Wires	85 °C
