3130-4 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PC PIN CIRC .025DIA GOLD

Part	Terminal Style	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Board Thickness	Board Thickness	Length - Above Flange [x]	Length - Above Flange [x]	Insulation	Contact Finish	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Termination	Terminal Type	Length - Below Flange [x]	Length - Below Flange [x]	Length - Overall [x]	Length - Overall [x]
Mill-Max Manufacturing Corp. 3130-4-00-21-00-00-08-0	Single End	1.32 mm	0.052 in	Brass Alloy	1.57 mm	0.062 in	20 µin	0.51 µm	Through Hole	3.18 mm	0.125 "	4.55 mm	0.179 in	Non-Insulated	Gold	0.64 mm	0.025 in	Swage	PC Pin	3.68 mm	0.145 "	8.76 mm	0.345 in

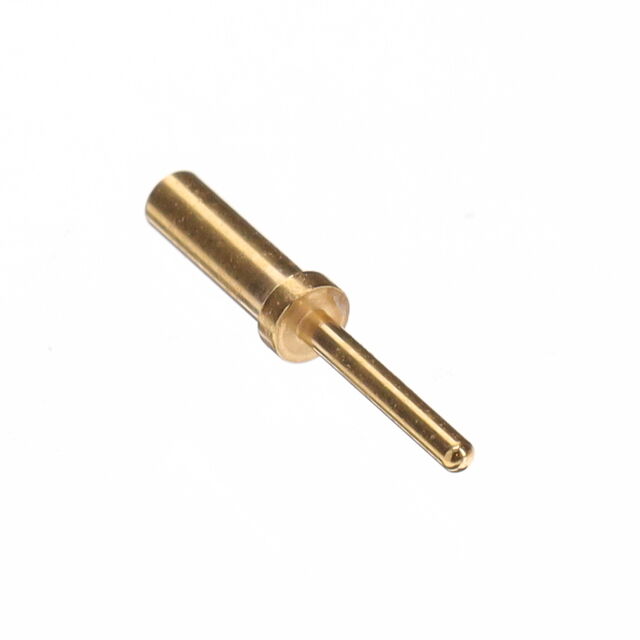

Mill-Max Manufacturing Corp. 3130-4-00-15-00-00-08-0	Single End	1.32 mm	0.052 in	Brass Alloy	1.57 mm	0.062 in	10 Áin	0.25 Ám	Through Hole	3.18 mm	0.125 "	4.55 mm	0.179 in	Non-Insulated	Gold	0.64 mm	0.025 in	Swage	PC Pin	3.68 mm	0.145 "	8.76 mm	0.345 in
Mill-Max Manufacturing Corp. 3130-4-00-01-00-00-08-0	Single End	1.32 mm	0.052 in	Brass Alloy	1.57 mm	0.062 in	200 Áin	5.08 Ám	Through Hole	3.18 mm	0.125 "	4.55 mm	0.179 in	Non-Insulated	Tin-Lead	0.64 mm	0.025 in	Swage	PC Pin	3.68 mm	0.145 "	8.76 mm	0.345 in
Mill-Max Manufacturing Corp. 3130-4-00-34-00-00-08-0	Single End	1.32 mm	0.052 in	Brass Alloy	1.57 mm	0.062 in	50 µin	1.27 µm	Through Hole	3.18 mm	0.125 "	4.55 mm	0.179 in	Non-Insulated	Gold	0.64 mm	0.025 in	Swage	PC Pin	3.68 mm	0.145 "	8.76 mm	0.345 in
Mill-Max Manufacturing Corp. 3130-4-00-80-00-00-08-0	Single End	1.32 mm	0.052 in	Brass Alloy	1.57 mm	0.062 in	200 Áin	5.08 Ám	Through Hole	3.18 mm	0.125 "	4.55 mm	0.179 in	Non-Insulated	Tin	0.64 mm	0.025 in	Swage	PC Pin	3.68 mm	0.145 "	8.76 mm	0.345 in
