3422.0003 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

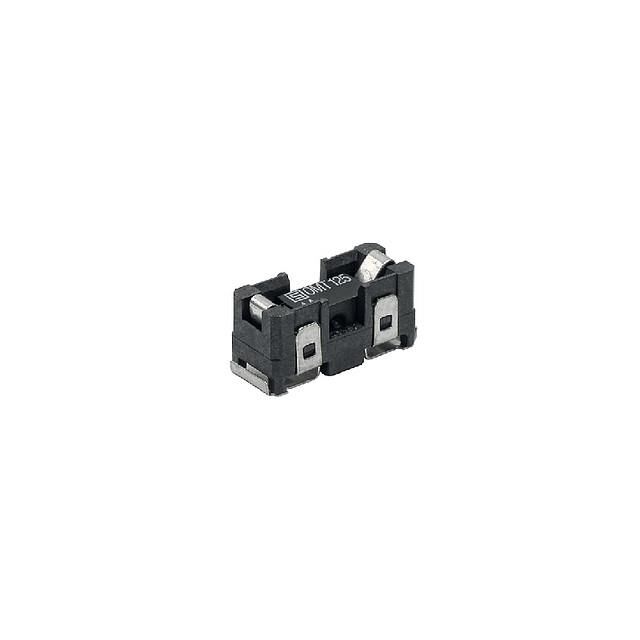

FUSE BRD MNT 63MA 63VAC/VDC 2SMD
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Melting I²t | Response Time | Fuse Type | Voltage Rating - AC | Breaking Capacity @ Rated Voltage | Voltage Rating - DC | Package / Case | Mounting Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 85 °C | -40 C | 6 mm | 0.472 in | 0.205 " | 5.2 mm | 0.236 in | 12 mm | 0.00011 | Fast Blow | Board Mount (Cartridge Style Excluded) | 63 V | 50 A | 63 VDC | 2-SMD Square End Block with Holder | Requires Holder Surface Mount | 63 mA |
 SCHURTER Inc. | 85 °C | -40 C | 6 mm | 0.472 in | 0.205 " | 5.2 mm | 0.236 in | 12 mm | 0.00011 | Fast Blow | Board Mount (Cartridge Style Excluded) | 63 V | 50 A | 63 VDC | 2-SMD Square End Block with Holder | Requires Holder Surface Mount | 63 mA |
