9935 Series
Manufacturer: Belden Inc.
Beta
⌘K

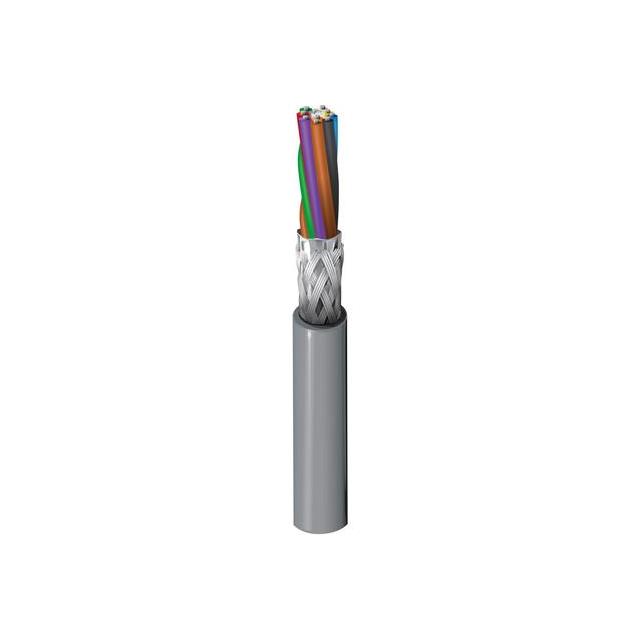

CABLE 10COND 24AWG CHROME
| Part | Shield Coverage | Shield Material | Jacket Color | Length | Length | Features | Ratings | Wire Gauge | Conductor Insulation | Jacket (Insulation) Material | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Number of Conductors [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | Chrome | 304.8 m | 1000 ft | Drain Wire | UL Style 2919 | 24 AWG | Foam Polyethylene (FPE) | Poly-Vinyl Chloride (PVC) | Braid Foil | 0.306 in | 7.77 mm | 0.035 in | 0.889 mm | Multi-Conductor | 80 °C | -30 ░C | Copper Tinned | 7 | 32 AWG | Computer | 10 |
Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | Chrome | 152.4 m | 500 ft | Drain Wire | UL Style 2919 | 24 AWG | Foam Polyethylene (FPE) | Poly-Vinyl Chloride (PVC) | Braid Foil | 0.306 in | 7.77 mm | 0.035 in | 0.889 mm | Multi-Conductor | 80 °C | -30 ░C | Copper Tinned | 7 | 32 AWG | Computer | 10 |
