090152 Series

Manufacturer: Molex

Catalog

CONN RCPT 24POS 0.1 GOLD PCB R/A

Part	Number of Positions	Termination	Contact Finish - Post	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Insulation Height	Insulation Height	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Fastening Type	Insulation Color	Current Rating (Amps)	Insulation Material	Connector Type	Number of Rows	Contact Shape	Contact Material	Voltage Rating	Number of Positions
Molex 0901522224	24	Solder	Tin	Female Socket	105 ░C	-55 °C	0.1 in	2.54 mm	0.114 in	2.9 mm	15 µin	0.38 µm	All	3 µm	118.1 µin	Automotive General Purpose Lighting Medical Telecommunications	5.85 mm	0.23 in	Through Hole Right Angle	2.54 mm	0.1 in	Gold	Push-Pull	Black	3 A	Polyester Glass Filled	Receptacle	2	Square	Phosphor Bronze	350 V

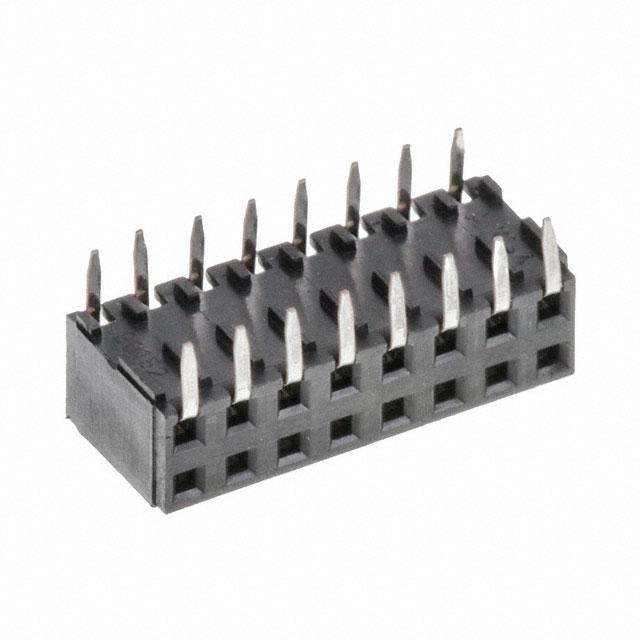

Molex 0901522116		Solder	Tin	Female Socket	105 ░C	-55 °C	0.1 in	2.54 mm	0.114 in	2.9 mm	40 µin	1.02 µm	All	1.02 Ám	40 Áin	Automotive General Purpose Lighting Medical Telecommunications	5.85 mm	0.23 in	Through Hole Right Angle	2.54 mm	0.1 in		Push-Pull	Black	3 A	Polyester Glass Filled	Receptacle	2	Square	Phosphor Bronze	350 V	16
Molex 0901522218	18	Solder	Tin	Female Socket	105 ░C	-55 °C	0.1 in	2.54 mm	0.114 in	2.9 mm	15 µin	0.38 µm	All	3 µm	118.1 µin	Automotive General Purpose Lighting Medical Telecommunications	5.85 mm	0.23 in	Through Hole Right Angle	2.54 mm	0.1 in	Gold	Push-Pull	Black	3 A	Polyester Glass Filled	Receptacle	2	Square	Phosphor Bronze	350 V

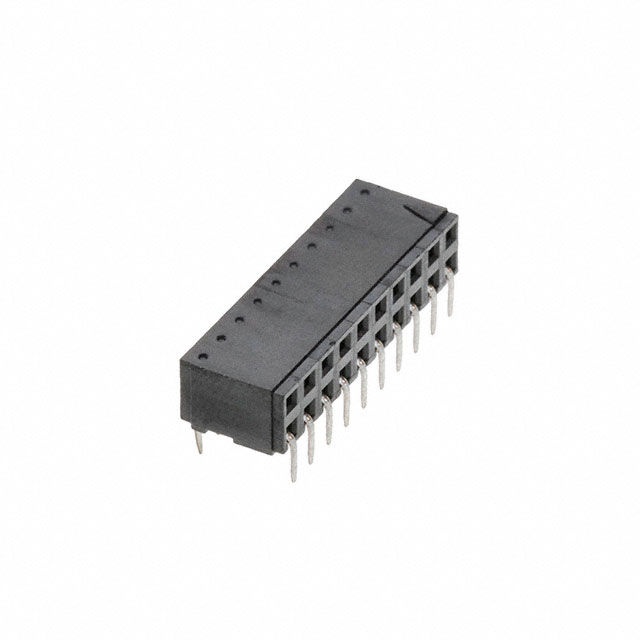

Molex 0901522120	20	Solder	Tin	Female Socket	105 ░C	-55 °C	0.1 in	2.54 mm	0.114 in	2.9 mm	40 µin	1.02 µm	All	1.02 Ám	40 Áin	Automotive General Purpose Lighting Medical Telecommunications	5.85 mm	0.23 in	Through Hole Right Angle	2.54 mm	0.1 in		Push-Pull	Black	3 A	Polyester Glass Filled	Receptacle	2	Square	Phosphor Bronze	350 V
Molex 0901522214	14	Solder	Tin	Female Socket	105 ░C	-55 °C	0.1 in	2.54 mm	0.114 in	2.9 mm	15 µin	0.38 µm	All	3 µm	118.1 µin	Automotive General Purpose Lighting Medical Telecommunications	5.85 mm	0.23 in	Through Hole Right Angle	2.54 mm	0.1 in	Gold	Push-Pull	Black	3 A	Polyester Glass Filled	Receptacle	2	Square	Phosphor Bronze	350 V
Molex 0901522250	50	Solder	Tin	Female Socket	105 ░C	-55 °C	0.1 in	2.54 mm	0.114 in	2.9 mm	15 µin	0.38 µm	All	3 µm	118.1 µin	Automotive General Purpose Lighting Medical Telecommunications	5.85 mm	0.23 in	Through Hole Right Angle	2.54 mm	0.1 in	Gold	Push-Pull	Black	3 A	Polyester Glass Filled	Receptacle	2	Square	Phosphor Bronze	350 V
Molex 0901522126	26	Solder	Tin	Female Socket	105 ░C	-55 °C	0.1 in	2.54 mm	0.114 in	2.9 mm	40 µin	1.02 µm	All	1.02 Ám	40 Áin	Automotive General Purpose Lighting Medical Telecommunications	5.85 mm	0.23 in	Through Hole Right Angle	2.54 mm	0.1 in		Push-Pull	Black	3 A	Polyester Glass Filled	Receptacle	2	Square	Phosphor Bronze	350 V
Molex 0901522216		Solder	Tin	Female Socket	105 ░C	-55 °C	0.1 in	2.54 mm	0.114 in	2.9 mm	15 µin	0.38 µm	All	3 µm	118.1 µin	Automotive General Purpose Lighting Medical Telecommunications	5.85 mm	0.23 in	Through Hole Right Angle	2.54 mm	0.1 in	Gold	Push-Pull	Black	3 A	Polyester Glass Filled	Receptacle	2	Square	Phosphor Bronze	350 V	16
Molex 0901522134	34	Solder	Tin	Female Socket	105 ░C	-55 °C	0.1 in	2.54 mm	0.114 in	2.9 mm	40 µin	1.02 µm	All	1.02 Ám	40 Áin	Automotive General Purpose Lighting Medical Telecommunications	5.85 mm	0.23 in	Through Hole Right Angle	2.54 mm	0.1 in		Push-Pull	Black	3 A	Polyester Glass Filled	Receptacle	2	Square	Phosphor Bronze	350 V
Molex 0901522206	6	Solder	Tin	Female Socket	105 ░C	-55 °C	0.1 in	2.54 mm	0.114 in	2.9 mm	15 µin	0.38 µm	All	3 µm	118.1 µin	Automotive General Purpose Lighting Medical Telecommunications	5.85 mm	0.23 in	Through Hole Right Angle	2.54 mm	0.1 in	Gold	Push-Pull	Black	3 A	Polyester Glass Filled	Receptacle	2	Square	Phosphor Bronze	350 V
