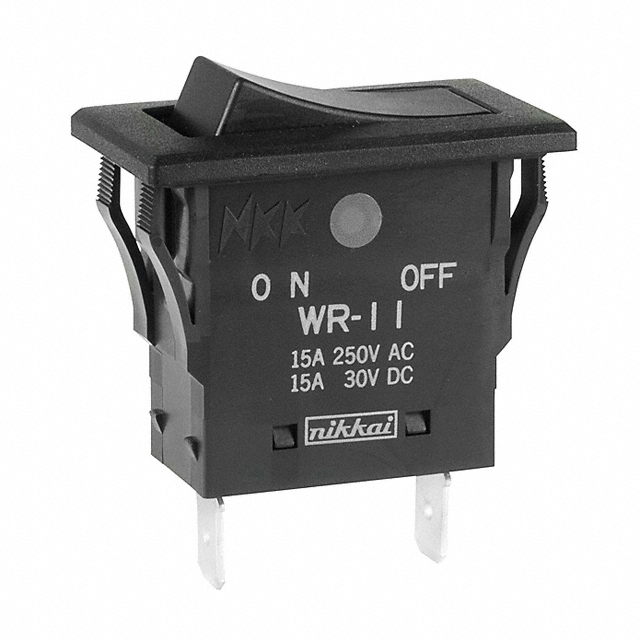

WR11AF Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROCKER SPST 15A 125V
| Part | Electrical Life | Mechanical Life | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Switch Function | Mounting Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Features | Circuit | Actuator Type | Actuator Marking | Voltage Rating - DC | Termination Style | Color - Actuator/Cap | Current Rating (Amps) | Voltage Rating - AC | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 15000 Cycles | 30000 Steps | 85 °C | -25 °C | IP67 - Dust Tight Waterproof | On-Off | Panel Mount Snap-In | 34.2 mm | 17.2 mm | Epoxy Sealed Terminals | SPST | Concave (Curved) | No Marking | 30 V | Quick Connect - 0.250" (6.3mm) | Black | 15 A | 125 V | EN UL |
NKK Switches | 15000 Cycles | 30000 Steps | 85 °C | -25 °C | IP67 - Dust Tight Waterproof | On-Off | Panel Mount Snap-In | 34.2 mm | 17.2 mm | Epoxy Sealed Terminals | SPST | Concave (Curved) | No Marking | 30 V | Quick Connect - 0.250" (6.3mm) | Black | 15 A | 125 V | EN UL |
 NKK Switches | 15000 Cycles | 30000 Steps | 85 °C | -25 °C | IP67 - Dust Tight Waterproof | On-Off | Panel Mount Snap-In | 34.2 mm | 17.2 mm | Epoxy Sealed Terminals | SPST | Concave (Curved) | No Marking | 30 V | Quick Connect - 0.250" (6.3mm) | Black | 15 A | 125 V | EN UL |
NKK Switches | 15000 Cycles | 30000 Steps | 85 °C | -25 °C | IP67 - Dust Tight Waterproof | On-Off | Panel Mount Snap-In | 34.2 mm | 17.2 mm | Epoxy Sealed Terminals | SPST | Concave (Curved) | No Marking | 30 V | Quick Connect - 0.250" (6.3mm) | Black | 15 A | 125 V | EN UL |
