0391-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .065-.082 SOLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall [x]	Length - Overall [x]	Flange Diameter	Flange Diameter	Contact Material	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Socket Depth	Socket Depth	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Type	Contact Finish	Termination	Contact Finish Thickness	Contact Finish Thickness

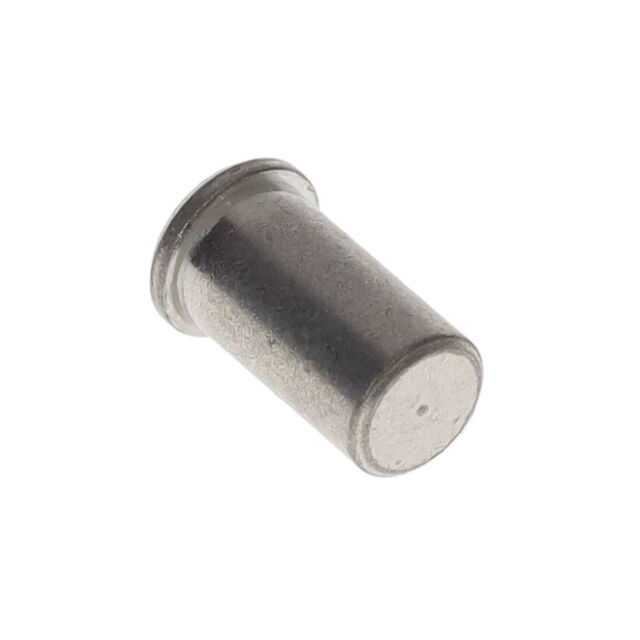

Mill-Max Manufacturing Corp. 0391-0-15-01-07-27-10-0	-55 C	125 °C	0.309 in	7.85 mm	4.8 mm	0.189 in	Beryllium Copper	2.08 mm	0.082 "	0.065 "	1.65 mm	2.72 mm	0.107 in	6.6 mm	0.26 "	4.04 mm	0.159 in	No Tail	Gold	Solder	30 Áin	0.76 Ám

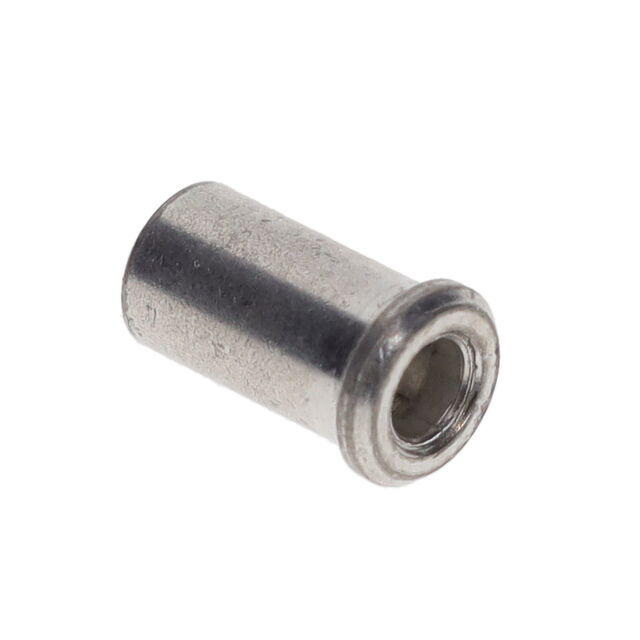

Mill-Max Manufacturing Corp. 0391-0-15-80-07-80-10-0	-55 C	125 °C	0.309 in	7.85 mm	4.8 mm	0.189 in	Beryllium Copper	2.08 mm	0.082 "	0.065 "	1.65 mm	2.24 mm	0.088 "	6.6 mm	0.26 "	4.04 mm	0.159 in	No Tail	Tin	Solder	200 Áin	5.08 Ám

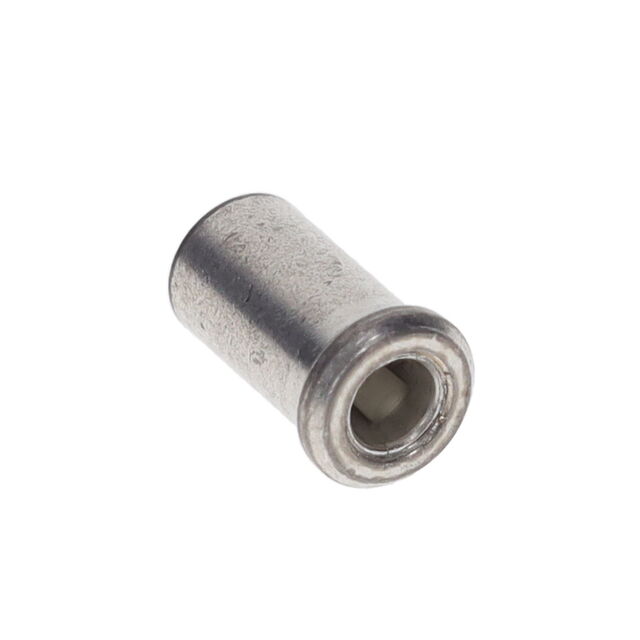

Mill-Max Manufacturing Corp. 0391-0-15-01-07-01-10-0	-55 C	125 °C	0.309 in	7.85 mm	4.8 mm	0.189 in	Beryllium Copper	2.08 mm	0.082 "	0.065 "	1.65 mm	2.72 mm	0.107 in	6.6 mm	0.26 "	4.04 mm	0.159 in	No Tail	Tin-Lead	Solder	200 Áin	5.08 Ám
Mill-Max Manufacturing Corp. 0391-0-15-80-07-14-10-0	-55 C	125 °C	0.309 in	7.85 mm	4.8 mm	0.189 in	Beryllium Copper	2.08 mm	0.082 "	0.065 "	1.65 mm	2.24 mm	0.088 "	6.6 mm	0.26 "	4.04 mm	0.159 in	No Tail	Gold	Solder	10 Áin	0.25 Ám

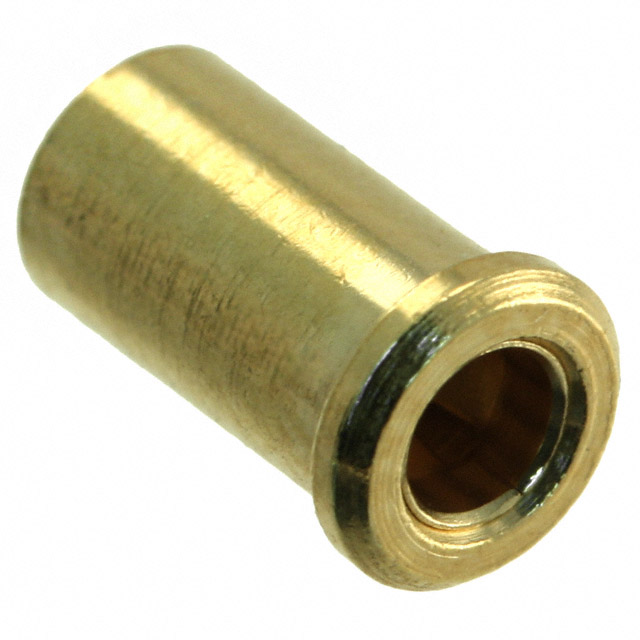

Mill-Max Manufacturing Corp. 0391-0-15-15-07-27-10-0	-55 C	125 °C	0.309 in	7.85 mm	4.8 mm	0.189 in	Beryllium Copper	2.08 mm	0.082 "	0.065 "	1.65 mm	2.72 mm	0.107 in	6.6 mm	0.26 "	4.04 mm	0.159 in	No Tail	Gold	Solder	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 0391-0-15-01-07-14-10-0	-55 C	125 °C	0.309 in	7.85 mm	4.8 mm	0.189 in	Beryllium Copper	2.08 mm	0.082 "	0.065 "	1.65 mm	2.72 mm	0.107 in	6.6 mm	0.26 "	4.04 mm	0.159 in	No Tail	Gold	Solder	10 Áin	0.25 Ám
