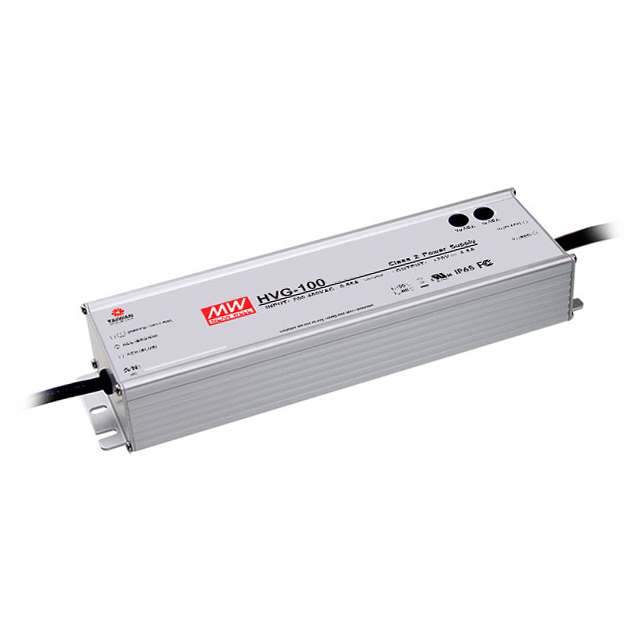

HVG-100 Series

Catalog

LED DRIVER CC/CV AC/DC 9-15V 5A

Part	Mounting Type	Voltage - Output [Min]	Voltage - Output [Max]	Power (Watts)	Termination Style	Efficiency	Current - Output (Max)	Dimming	Features	Ratings	Voltage - Input (Max) [Max]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Topology	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Voltage - Isolation	Number of Outputs	Current - Output (Max) [Max]
MEAN WELL USA Inc. HVG-100-15B	Chassis Mount	9 V	15 V	75 W	Wire Leads	89 %	5 A	Analog PWM	OCP OTP OVP SCP	IP67	528 VAC	Constant Current Voltage	90 °C	-40 C	AC DC Converter	1.52 in	212 mm	2.68 in	8.35 in	68 mm	38.5 mm	180 VAC	3750 VDC	1
MEAN WELL USA Inc. HVG-100-20B	Chassis Mount			96 W	Wire Leads	90 %		Analog PWM	OCP OTP OVP SCP	IP67	528 VAC	Constant Current Voltage	90 °C	-40 C	AC DC Converter	1.52 in	212 mm	2.68 in	8.35 in	68 mm	38.5 mm	180 VAC	3750 VDC	1	4.8 A
MEAN WELL USA Inc. HVG-100-30A	Chassis Mount	27 V	33 V	96 W	Wire Leads	91 %			OCP OTP OVP SCP	IP65	528 VAC	Constant Current Voltage	90 °C	-40 C	AC DC Converter	1.52 in	212 mm	2.68 in	8.35 in	68 mm	38.5 mm	180 VAC	3750 VDC	1	3.2 A
MEAN WELL USA Inc. HVG-100-42A	Chassis Mount	38 V	46 V	96 W	Wire Leads	90.5 %			OCP OTP OVP SCP	IP65	528 VAC	Constant Current Voltage	90 °C	-40 C	AC DC Converter	1.52 in	212 mm	2.68 in	8.35 in	68 mm	38.5 mm	180 VAC	3750 VDC	1	2.28 A
MEAN WELL USA Inc. HVG-100-20A	Chassis Mount	17 V	22 V	96 W	Wire Leads	90 %			OCP OTP OVP SCP	IP65	528 VAC	Constant Current Voltage	90 °C	-40 C	AC DC Converter	1.52 in	212 mm	2.68 in	8.35 in	68 mm	38.5 mm	180 VAC	3750 VDC	1	4.8 A
MEAN WELL USA Inc. HVG-100-30B	Chassis Mount	15 V	30 VDC	96 W	Wire Leads	91 %		Analog PWM	OCP OTP OVP SCP	IP67	528 VAC	Constant Current Voltage	90 °C	-40 C	AC DC Converter	1.52 in	212 mm	2.68 in	8.35 in	68 mm	38.5 mm	180 VAC	3750 VDC	1	3.2 A
MEAN WELL USA Inc. HVG-100-42B	Chassis Mount	21 V	42 V	96 W	Wire Leads	90.5 %		Analog PWM	OCP OTP OVP SCP	IP67	528 VAC	Constant Current Voltage	90 °C	-40 C	AC DC Converter	1.52 in	212 mm	2.68 in	8.35 in	68 mm	38.5 mm	180 VAC	3750 VDC	1	2.28 A
MEAN WELL USA Inc. HVG-100-54A	Chassis Mount	49 V	58 V	96 W	Wire Leads	91 %			OCP OTP OVP SCP	IP65	528 VAC	Constant Current Voltage	90 °C	-40 C	AC DC Converter	1.52 in	212 mm	2.68 in	8.35 in	68 mm	38.5 mm	180 VAC	3750 VDC	1	1.77 A
MEAN WELL USA Inc. HVG-100-36B	Chassis Mount	18 V	36 V	95 W	Wire Leads	90.5 %		Analog PWM	OCP OTP OVP SCP	IP67	528 VAC	Constant Current Voltage	90 °C	-40 C	AC DC Converter	1.52 in	212 mm	2.68 in	8.35 in	68 mm	38.5 mm	180 VAC	3750 VDC	1	2.65 A
MEAN WELL USA Inc. HVG-100-36A	Chassis Mount	33	40	95 W	Wire Leads	90.5 %			OCP OTP OVP SCP	IP65	528 VAC	Constant Current Voltage	90 °C	-40 C	AC DC Converter	1.52 in	212 mm	2.68 in	8.35 in	68 mm	38.5 mm	180 VAC	3750 VDC	1	2.65 A
