LAM3B1 Series
Manufacturer: Panduit Corp
Beta
⌘K

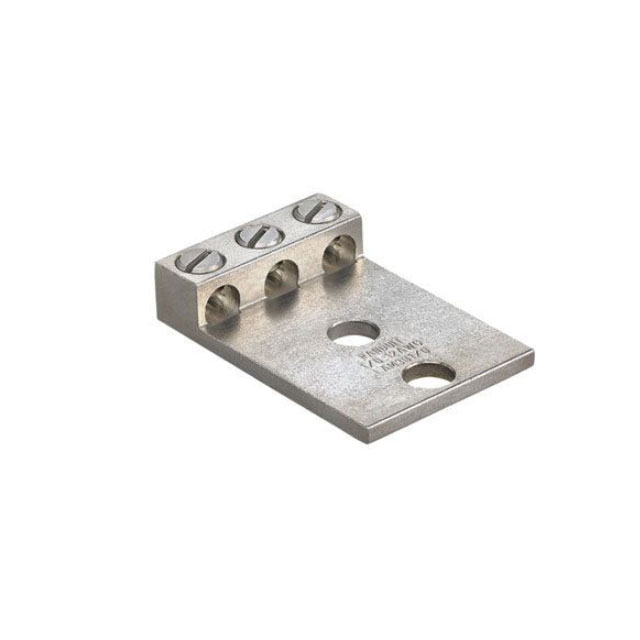

LUG TERMINAL, TWO STUD HOLE, PAN-LUG LAM3B SERIES, SCREW, 0 AWG, MECHANICAL LUG, M10
| Part | Contact Finish | Contact Material | Insulation | Tab Thickness [custom] | Tab Thickness [custom] | Terminal Style | Wire Gauge [Max] | Wire Gauge [Min] | Stud/Tab Size | Mounting Type | Terminal Type | Termination | Features | Width - Outer Edges [x] | Width - Outer Edges [x] | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | Tin | Aluminum | Non-Insulated | 0.25 in | 6.35 mm | Two Stud Holes | 14 | 1/0 | 0.375 Stud | Free Hanging (In-Line) | Lug Grounding | Screw | 3 Cable Entries With Screw | 50.8 mm | 2 in | 2.91 in | 73.91 mm |
