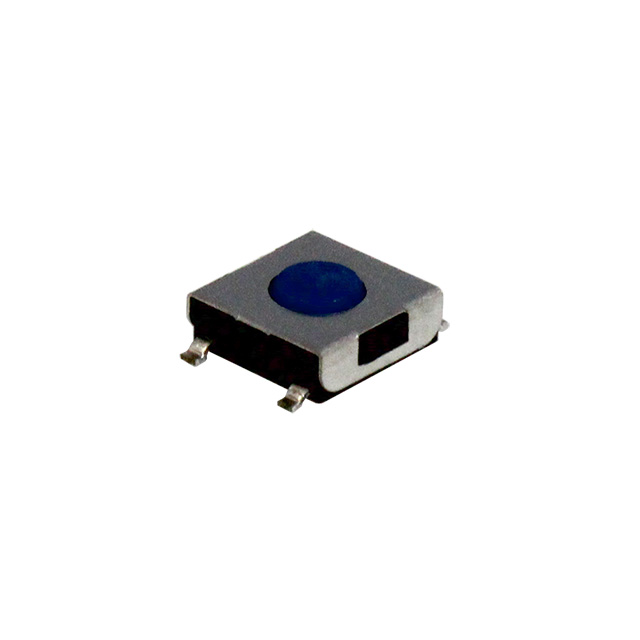

CS11102 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Actuator Material	Switch Travel	Actuator Type	Switch Function	Outline [x]	Outline [y]	Actuator Orientation	Contact Rating @ Voltage	Operating Force	Mounting Type	Circuit	Actuator Height off PCB, Vertical [z]	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Illumination
CIT Relay and Switch CS11102.0	Polyamide (PA46) Nylon 4/6	0.25 mm	Flush	Off-Mom	6.2 mm	6.2 mm	Top Actuated	0.05 A 50 VDC	160 gf	Surface Mount	SPST-NO	2 mm	Gull Wing	85 °C	-40 C	Non-Illuminated
CIT Relay and Switch CS11102.5	Polyamide (PA46) Nylon 4/6	0.25 mm	Standard	Off-Mom	6.2 mm	6.2 mm	Top Actuated	0.05 A 50 VDC	160 gf	Surface Mount	SPST-NO	2.5 mm	Gull Wing	85 °C	-40 C	Non-Illuminated
CIT Relay and Switch CS11102.3	Polyamide (PA46) Nylon 4/6	0.25 mm	Standard	Off-Mom	6.2 mm	6.2 mm	Top Actuated	0.05 A 50 VDC	160 gf	Surface Mount	SPST-NO	2.3 mm	Gull Wing	85 °C	-40 C	Non-Illuminated
