633-062 Series
Manufacturer: EDAC Inc.
Beta
⌘K

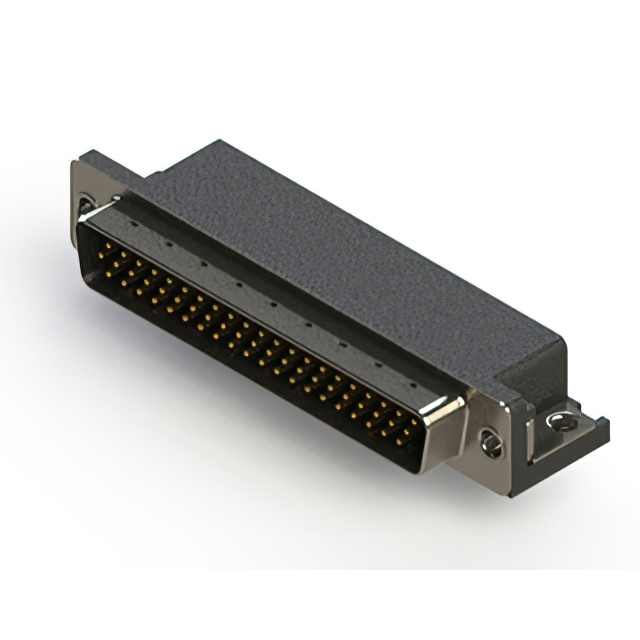

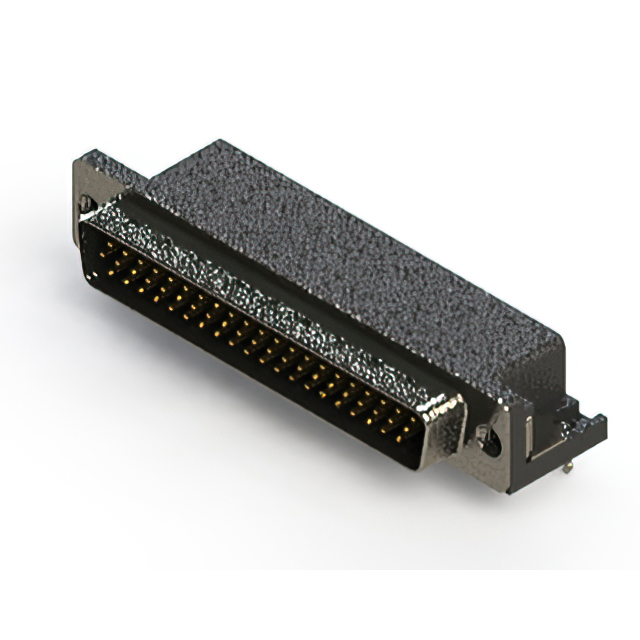

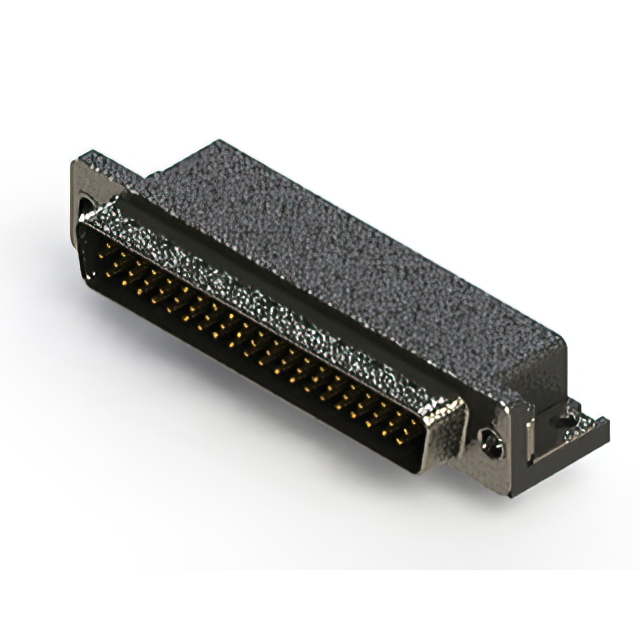

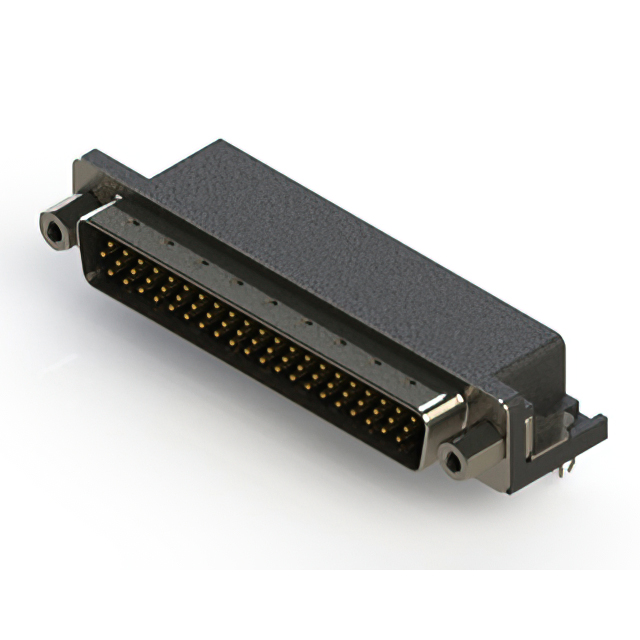

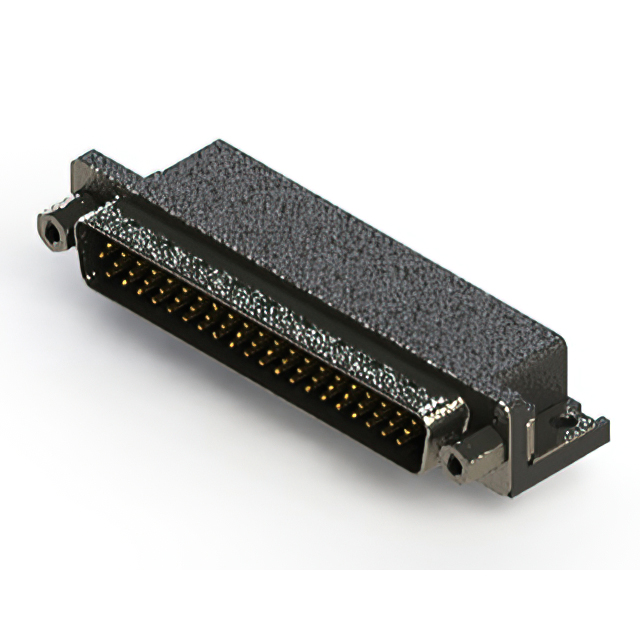

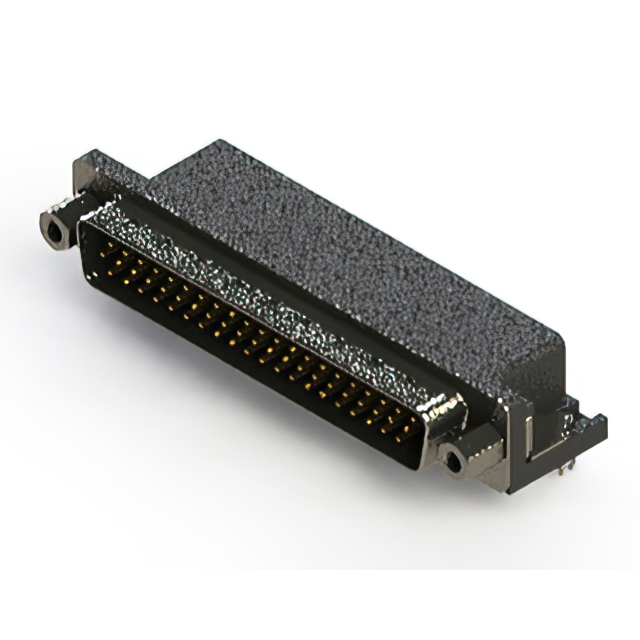

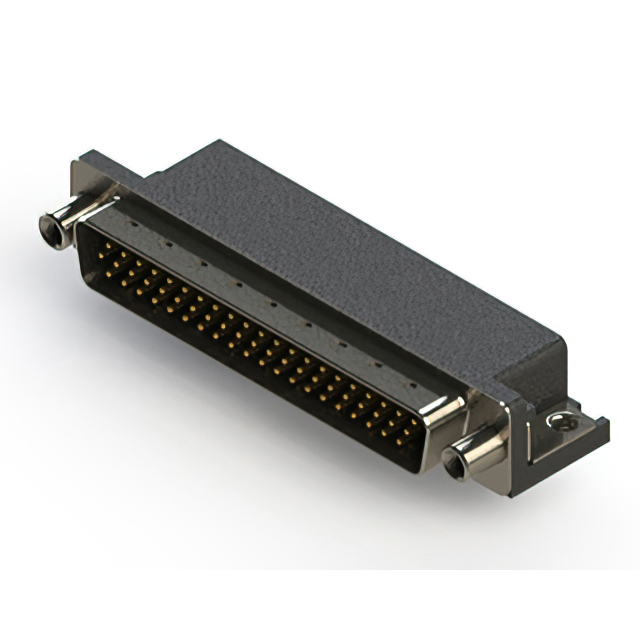

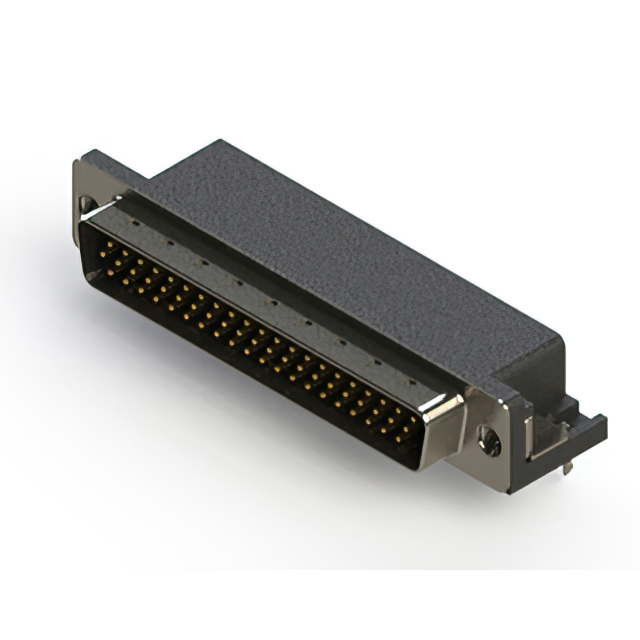

633 SERIES RIGHT ANGLE D-SUB PLU
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Material | Contact Finish Thickness | Current Rating (Amps) | Contact Finish | Contact Type | Connector Type | Number of Rows [custom] | Features | Shell Material, Finish | Material Flammability Rating | Backset Spacing | Backset Spacing | Mounting Type | Number of Positions | Flange Feature | Connector Style | Shell Size, Connector Layout | Shell Size, Connector Layout | Termination | Color | Flange Feature | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Copper Alloy | Flash | 3 A | Gold | Signal | Plug Male Pins | 3 | Board Lock Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | UL94 V-0 | 8.89 mm | 0.35 in | Board Edge Right Angle Through Hole | 62 | Housing/Shell (M3) | D-Sub High Density | C DC | 4 | Solder | ||||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Flash | 3 A | Gold | Signal | Plug Male Pins | 3 | Board Lock Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | UL94 V-0 | 8.89 mm | 0.35 in | Board Edge Right Angle Through Hole | 62 | 4-40 Mating Side Female Screwlock | D-Sub High Density | C DC | 4 | Solder | ||||
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Copper Alloy | Flash | 3 A | Gold | Signal | Plug Male Pins | 3 | Board Lock Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | UL94 V-0 | 8.89 mm | 0.35 in | Board Edge Right Angle Through Hole | 62 | Housing/Shell | D-Sub High Density | C DC | 4 | Solder | Black Blue | 4-40 | ||
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Copper Alloy | Flash | 3 A | Gold | Signal | Plug Male Pins | 3 | Board Lock Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | UL94 V-0 | 8.89 mm | 0.35 in | Board Edge Right Angle Through Hole | 62 | 4-40 | D-Sub High Density | C DC | 4 | Solder | ||||
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Copper Alloy | 3 A | Gold | Signal | Plug Male Pins | 3 | Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | UL94 V-0 | 8.89 mm | 0.35 in | Board Edge Right Angle Through Hole | 62 | 4-40 Mating Side Female Screwlock | D-Sub High Density | C DC | 4 | Solder | 0.38 µm | 15 µin | |||
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Copper Alloy | 3 A | Gold | Signal | Plug Male Pins | 3 | Board Lock Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | UL94 V-0 | 8.89 mm | 0.35 in | Board Edge Right Angle Through Hole | 62 | Housing/Shell (M3) | D-Sub High Density | C DC | 4 | Solder | 0.76 Ám | 30 Áin | |||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Flash | 3 A | Gold | Signal | Plug Male Pins | 3 | Board Lock Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | UL94 V-0 | 8.89 mm | 0.35 in | Board Edge Right Angle Through Hole | 62 | 4-40 Mating Side Female Screwlock | D-Sub High Density | C DC | 4 | Solder | ||||
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Copper Alloy | Flash | 3 A | Gold | Signal | Plug Male Pins | 3 | Board Lock Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | UL94 V-0 | 8.89 mm | 0.35 in | Board Edge Right Angle Through Hole | 62 | Housing/Shell (Unthreaded) | D-Sub High Density | C DC | 4 | Solder | ||||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | 3 A | Gold | Signal | Plug Male Pins | 3 | Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | UL94 V-0 | 8.89 mm | 0.35 in | Board Edge Right Angle Through Hole | 62 | Housing/Shell (Unthreaded) | D-Sub High Density | C DC | 4 | Solder | 0.76 Ám | 30 Áin | |||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Flash | 3 A | Gold | Signal | Plug Male Pins | 3 | Board Lock Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | UL94 V-0 | 8.89 mm | 0.35 in | Board Edge Right Angle Through Hole | 62 | Housing/Shell | D-Sub High Density | C DC | 4 | Solder | 4-40 |
