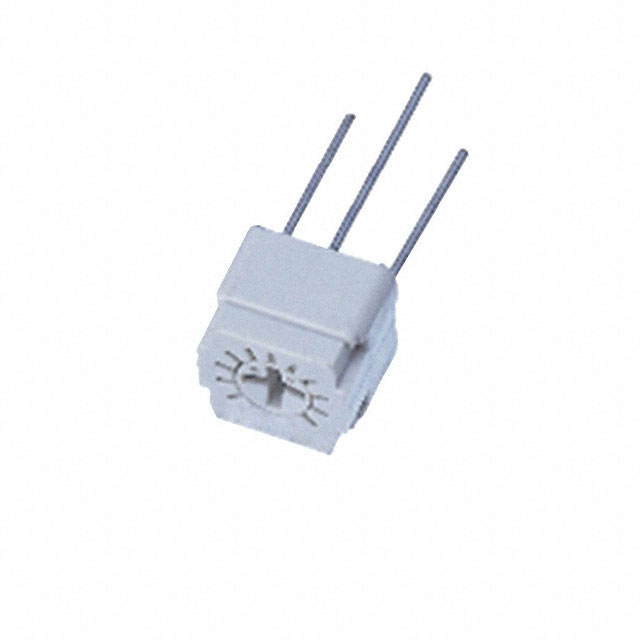

FT63ET Series

Manufacturer: Nidec Components Corporation

Catalog

TRIMMER 20 OHM 0.5W PC PIN TOP

Part	Power (Watts)	Power (Watts)	Number of Turns	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Resistive Material	Temperature Coefficient	Resistance	Adjustment Type	Mounting Type	Termination Style
Nidec Components Corporation FT-63ETV200	0.5 W	0.5 W	1	10 %	0.276 in	7 mm	7 mm	0.276 "	Cermet	150 ppm/°C	20 Ohms	Top Adjustment	Through Hole	PC Pins
Nidec Components Corporation FT-63ETH102	0.5 W	0.5 W	1	10 %	0.276 in	8.2 mm	7 mm	0.323 in	Cermet	100 ppm/°C	1000 Ohms	Side Adjustment	Through Hole	PC Pins
Nidec Components Corporation FT-63ETV104	0.5 W	0.5 W	1	10 %	0.276 in	7 mm	7 mm	0.276 "	Cermet	100 ppm/°C	100 kOhms	Top Adjustment	Through Hole	PC Pins
Nidec Components Corporation FT-63ETH502	0.5 W	0.5 W	1	10 %	0.276 in	8.2 mm	7 mm	0.323 in	Cermet	100 ppm/°C	5 kOhms	Side Adjustment	Through Hole	PC Pins
Nidec Components Corporation FT-63ETV204	0.5 W	0.5 W	1	10 %	0.276 in	7 mm	7 mm	0.276 "	Cermet	100 ppm/°C	200000 Ohms	Top Adjustment	Through Hole	PC Pins
Nidec Components Corporation FT-63ETV102	0.5 W	0.5 W	1	10 %	0.276 in	7 mm	7 mm	0.276 "	Cermet	100 ppm/°C	1000 Ohms	Top Adjustment	Through Hole	PC Pins
Nidec Components Corporation FT-63ETH302	0.5 W	0.5 W	1	10 %	0.276 in	8.2 mm	7 mm	0.323 in	Cermet	100 ppm/°C	3 kOhms	Side Adjustment	Through Hole	PC Pins
Nidec Components Corporation FT-63ETV105	0.5 W	0.5 W	1	10 %	0.276 in	7 mm	7 mm	0.276 "	Cermet	100 ppm/°C	1 MOhms	Top Adjustment	Through Hole	PC Pins
Nidec Components Corporation FT-63ETP203	0.5 W	0.5 W	1	10 %	0.276 in	7 mm	7 mm	0.276 "	Cermet	100 ppm/°C	20 kOhms	Top Adjustment	Through Hole	PC Pins
Nidec Components Corporation FT-63ETH503	0.5 W	0.5 W	1	10 %	0.276 in	8.2 mm	7 mm	0.323 in	Cermet	100 ppm/°C	50000 Ohms	Side Adjustment	Through Hole	PC Pins
