WI-M-16 Series

Catalog

TEST LEAD 16AWG 1100V RED 25'

Part	Cable Type	Conductor Strand [custom]	Conductor Strand [diameter]	Wire Gauge	Conductor Material	Jacket Color	Length [x]	Length [x]	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature	Length	Length
Mueller Electric Co WI-M-16-25-2	Test Lead	266	0.0031 in	16 AWG	Copper	Red	7.62 m	25 ft	1100 V	0.126 in	3.2 mm	200 °C

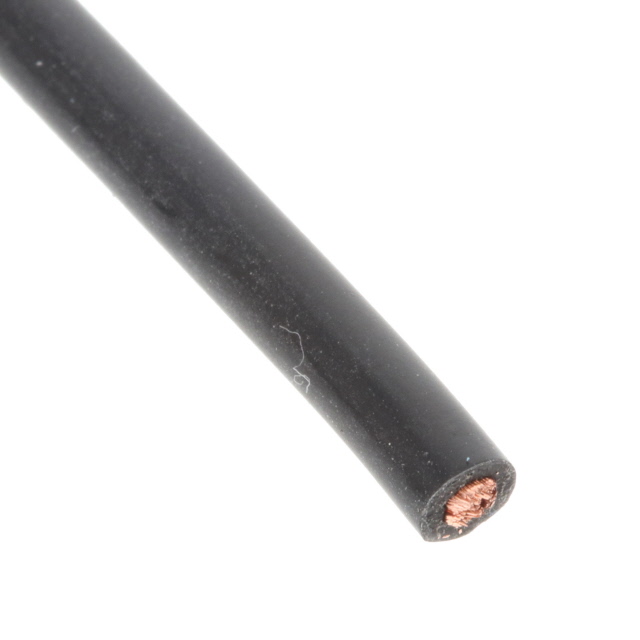

Mueller Electric Co WI-M-16-10-0	Test Lead	266	0.0031 in	16 AWG	Copper	Black			1100 V	0.126 in	3.2 mm	200 °C	3.05 m	10 ft

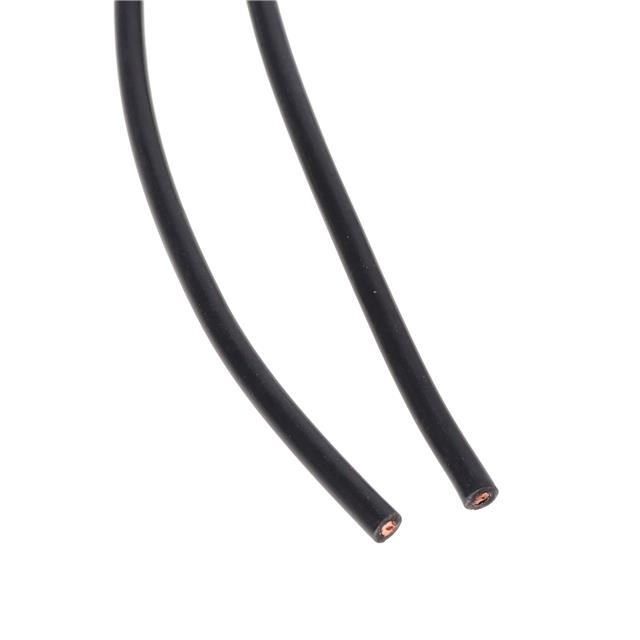

Mueller Electric Co WI-M-16-25-0	Test Lead	266	0.0031 in	16 AWG	Copper	Black	7.62 m	25 ft	1100 V	0.126 in	3.2 mm	200 °C
Mueller Electric Co WI-M-16-10-2	Test Lead	266	0.0031 in	16 AWG	Copper	Red			1100 V	0.126 in	3.2 mm	200 °C	3.05 m	10 ft
