KHHD015 Series

Catalog

DC DC CONVERTER 3.3V

Part	Features	Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Voltage - Input (Max) [Max]	Efficiency	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Package / Case	Mounting Type	Voltage - Output 1	Voltage - Isolation	Applications	Control Features	Power (Watts)	Approval Agency

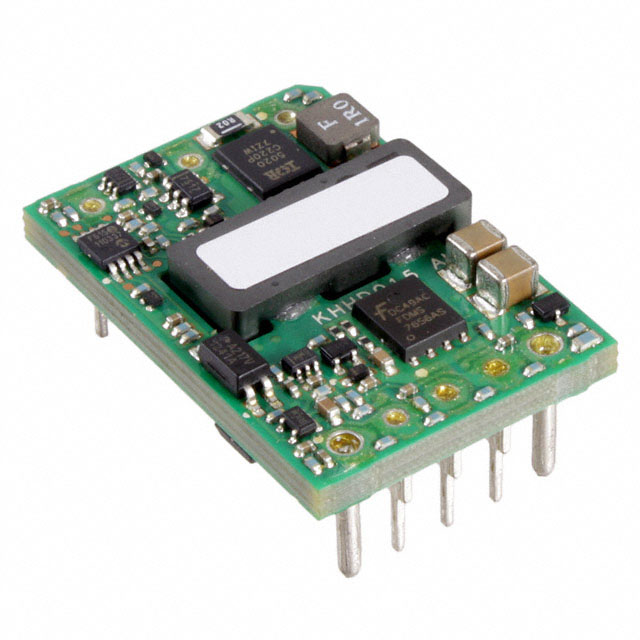

OmniOn Power™ KHHD015A0F641Z	OCP OTP OVP Remote On/Off UVLO	Isolated Module	9.3 mm	1.3 in	22.9 mm	0.9 in	33 mm	0.37 in	1	-40 °C	85 °C	Sixteenth Brick	75 V	90.5 %	15 A	18 V	Sixteenth Brick	Through Hole	3.3 V	2250 VDC	ITE (Commercial)
OmniOn Power™ KHHD015A0F641Z	OCP OTP OVP Remote On/Off UVLO	Isolated Module	9.3 mm	1.3 in	22.9 mm	0.9 in	33 mm	0.37 in	1	-40 °C	85 °C	Sixteenth Brick	75 V	90.5 %	15 A	18 V	Sixteenth Brick	Through Hole	3.3 V	2250 VDC	ITE (Commercial)

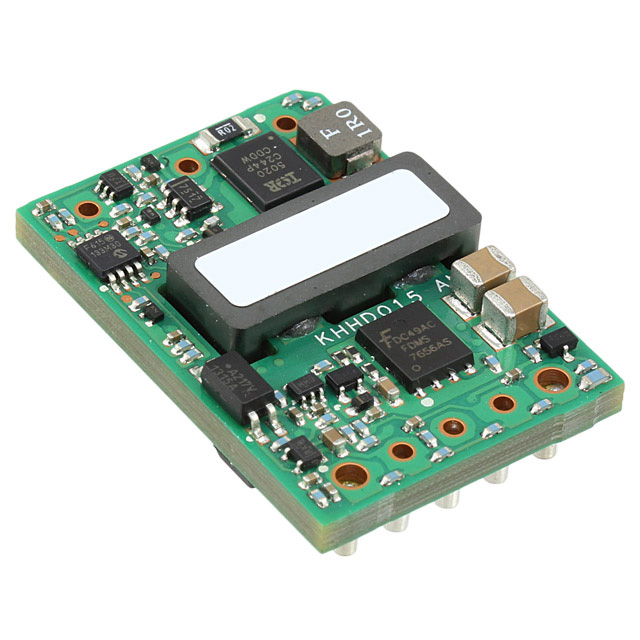

OmniOn Power™ KHHD015A0F41-SRZ	OCP OTP OVP Remote On/Off UVLO	Isolated Module	9.3 mm	1.3 in	22.9 mm	0.9 in	33 mm	0.37 in	1	-40 C	85 °C		75 V	90.5 %	15 A	18 V	8-SMD Module	Surface Mount	3.3 V	2250 VDC	ITE (Commercial)	Active Low Enable	50 W	CE CSA UL
