745-018 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 18POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Card Type	Gender	Contact Finish Thickness	Contact Finish Thickness	Read Out	Mounting Type	Pitch	Pitch	Termination	Number of Positions/Bay/Row	Contact Type	Color	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Number of Rows [custom]	Termination Rows	Number of Positions/Bay/Row [custom]	Number of Rows

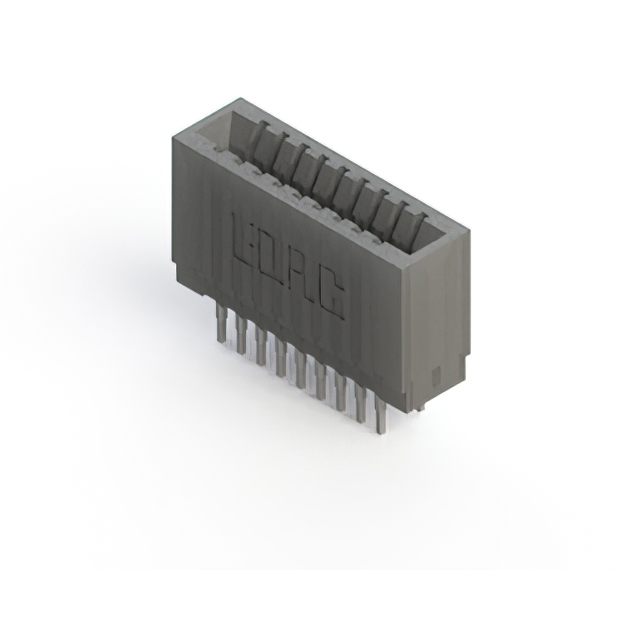

EDAC Inc. 745-018-540-201	Polyester Thermoplastic	2	Gold	-40 C	105 ░C	Copper Alloy	Non Specified - Dual Edge	Female	30 Áin	0.76 Ám	Dual	Through Hole	0.1 "	2.54 mm	Press-Fit Wire Wrap	9	Cantilever	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	18	2

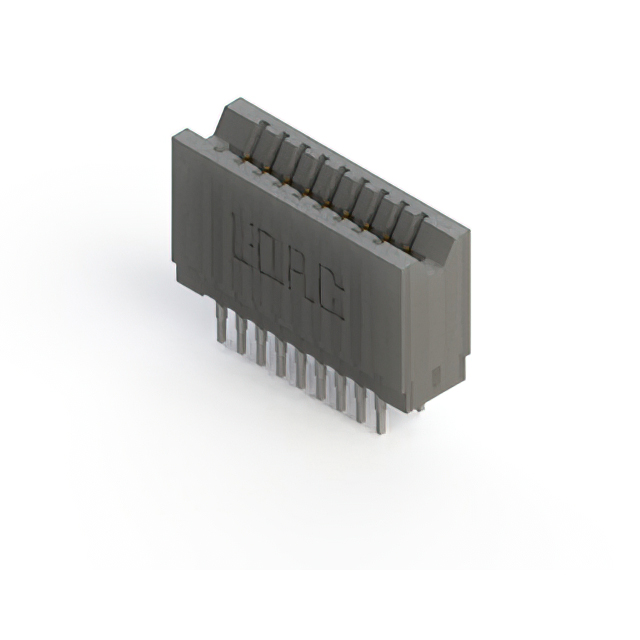

EDAC Inc. 745-018-545-206	Polyester Thermoplastic	2	Gold	-40 C	105 ░C	Copper Alloy	Non Specified - Dual Edge	Female	30 Áin	0.76 Ám	Dual	Through Hole	0.1 "	2.54 mm	Press-Fit	9	Cantilever	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	18	2
EDAC Inc. 745-018-520-101	Polyester Thermoplastic		Gold	-40 C	105 ░C	Copper Alloy	Non Specified - Single Edge	Female	30 Áin	0.76 Ám	Single	Through Hole	0.1 "	2.54 mm	Press-Fit		Cantilever	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	18		1	18	1

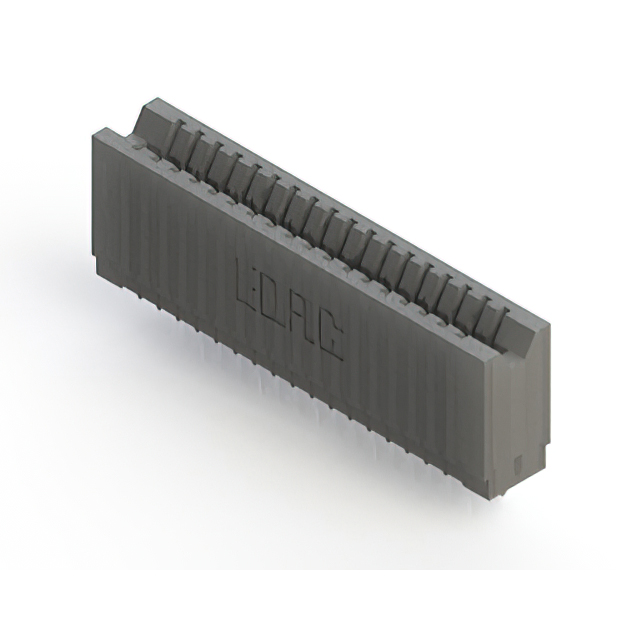

EDAC Inc. 745-018-520-106	Polyester Thermoplastic		Gold	-40 C	105 ░C	Copper Alloy	Non Specified - Single Edge	Female	30 Áin	0.76 Ám	Single	Through Hole	0.1 "	2.54 mm	Press-Fit		Cantilever	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	18		1	18	1
EDAC Inc. 745-018-525-206	Polyester Thermoplastic	2	Gold	-40 C	105 ░C	Copper Alloy	Non Specified - Dual Edge	Female	30 Áin	0.76 Ám	Dual	Through Hole	0.1 "	2.54 mm	Press-Fit	9	Cantilever	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	18	2
EDAC Inc. 745-018-525-106	Polyester Thermoplastic		Gold	-40 C	105 ░C	Copper Alloy	Non Specified - Single Edge	Female	30 Áin	0.76 Ám	Single	Through Hole	0.1 "	2.54 mm	Press-Fit		Cantilever	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	18		1	18	1

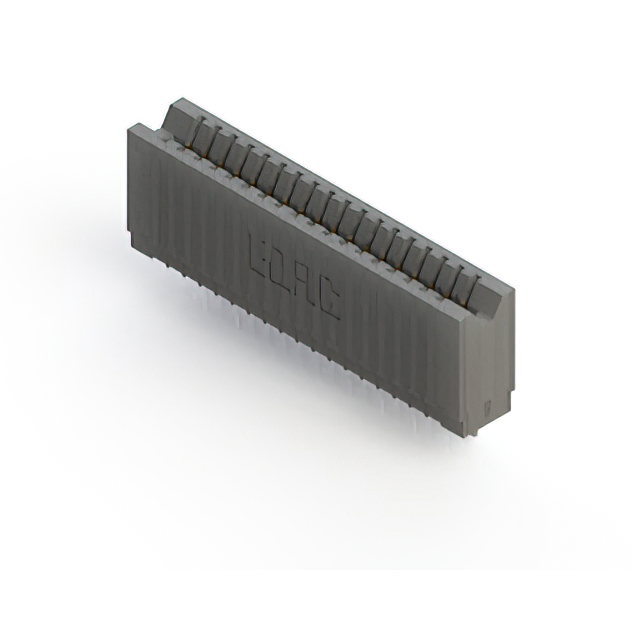

EDAC Inc. 745-018-545-106	Polyester Thermoplastic		Gold	-40 C	105 ░C	Copper Alloy	Non Specified - Single Edge	Female	30 Áin	0.76 Ám	Single	Through Hole	0.1 "	2.54 mm	Press-Fit		Cantilever	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	18		1	18	1

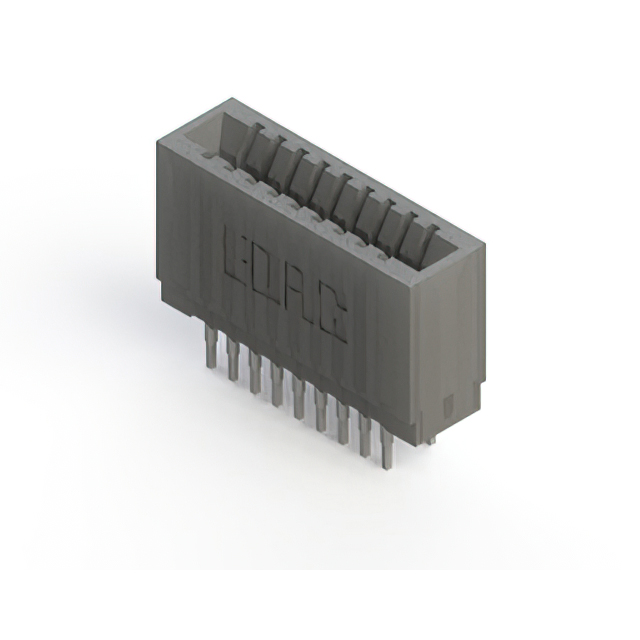

EDAC Inc. 745-018-522-201	Polyester Thermoplastic	2	Gold	-40 C	105 ░C	Copper Alloy	Non Specified - Dual Edge	Female	30 Áin	0.76 Ám	Dual	Through Hole	0.1 "	2.54 mm	Press-Fit	9	Cantilever	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	18	2
EDAC Inc. 745-018-545-101	Polyester Thermoplastic		Gold	-40 C	105 ░C	Copper Alloy	Non Specified - Single Edge	Female	30 Áin	0.76 Ám	Single	Through Hole	0.1 "	2.54 mm	Press-Fit		Cantilever	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	18		1	18	1
EDAC Inc. 745-018-525-101	Polyester Thermoplastic		Gold	-40 C	105 ░C	Copper Alloy	Non Specified - Single Edge	Female	30 Áin	0.76 Ám	Single	Through Hole	0.1 "	2.54 mm	Press-Fit		Cantilever	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	18		1	18	1
