100DP6 Series

Manufacturer: E-Switch

Catalog

SWITCH TOGGLE SP3T 0.4VA 20V

Part	Actuator Material	Electrical Life (Cycles)	Operating Temperature (Max)	Operating Temperature (Min)	Actuator Type	Current Rating	Switch Function	Illumination	Mounting Type	Voltage Rating - AC	Actuator Length	Circuit	Voltage Rating - DC	Termination Style	Features	Bushing Thread	Panel Cutout Diameter	Panel Cutout Shape	Termination Length
E-Switch 100DP6T2B4M6RE	Brass Chrome Plated	40000	85 °C	-30 °C	Standard Round	0.4 VA	On-On-On	Non-Illuminated	Right Angle Through Hole	20 V	5.08 mm	SP3T	20 V	PC Pin	Jumper needed to achieve triple throw	Unthreaded

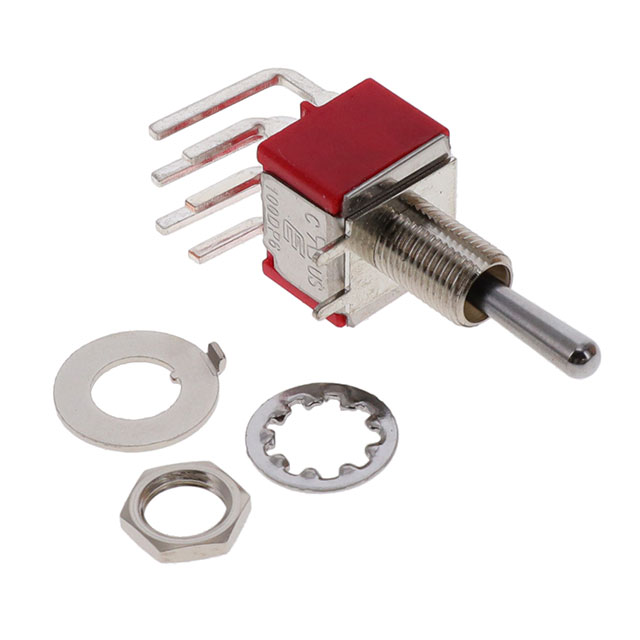

E-Switch 100DP6T1B1M6QEH	Brass Chrome Plated	40000	85 °C	-30 °C	Standard Round	5 A	On-On-On	Non-Illuminated	Panel Mount Right Angle	120 V	10.41 mm	SP3T	28 V	PC Pin	Jumper needed to achieve triple throw	1/4-40	0.25 "	Circular
E-Switch 100DP6T3B2VS3QE	Brass Chrome Plated	40000	85 °C	-30 °C	Standard Round	5 A	On-On-On	Non-Illuminated	Through Hole	120 V	13.97 mm	SP3T	28 V	PC Pin	Jumper needed to achieve triple throw	Unthreaded
E-Switch 100DP6T2B2M7RE	Brass Chrome Plated	40000	85 °C	-30 °C	Standard Round	0.4 VA	On-On-On	Non-Illuminated	Right Angle Through Hole Vertical	20 V	5.08 mm	SP3T	20 V	PC Pin	Jumper needed to achieve triple throw	Unthreaded
E-Switch 100DP6T1B6M1QE	Brass Chrome Plated	40000	85 °C	-30 °C	Standard Round	5 A	On-On-On	Non-Illuminated	Panel Mount	120 V	9.91 mm	SP3T	28 V	Solder Lug	Jumper needed to achieve triple throw	1/4-40	0.25 "	Circular
E-Switch 100DP6T6B15M3QEH	Brass Chrome Plated	40000	85 °C	-30 °C	Flat Anti-Rotation	5 A	On-On-On	Non-Illuminated	Panel Mount	120 V	12.29 mm	SP3T	28 V	Quick Connect	Jumper needed to achieve triple throw	1/4-40	0.25 "	Circular	0.062 in
E-Switch 100DP6T1B4M2QE	Brass Chrome Plated	40000	85 °C	-30 °C	Standard Round	5 A	On-On-On	Non-Illuminated	Through Hole	120 V	10.41 mm	SP3T	28 V	PC Pin	Jumper needed to achieve triple throw	Unthreaded

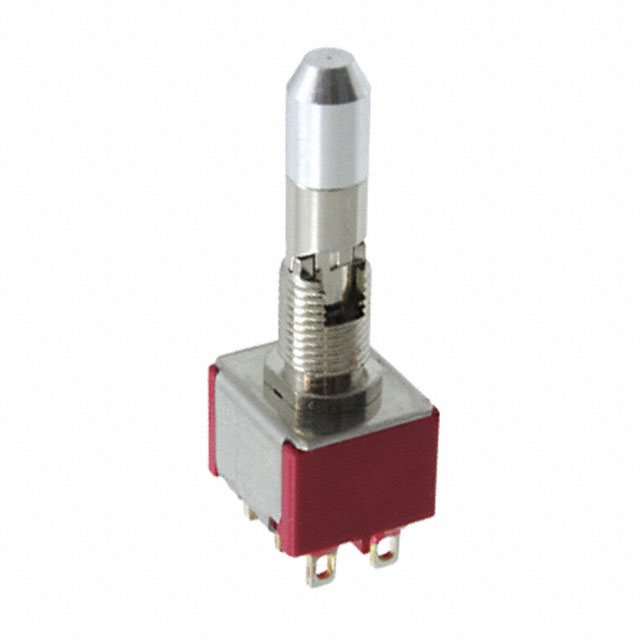

E-Switch 100DP6K2B25M1QE	Brass Chrome Plated	40000	85 °C	-30 °C	Locking Lever	5 A	On-On-On	Non-Illuminated	Panel Mount	120 V	14.73 mm	SP3T	28 V	Solder Lug	Jumper needed to achieve triple throw	1/4-40	0.25 "	Circular
E-Switch 100DP6T6B11M1REH	Brass Chrome Plated	40000	85 °C	-30 °C	Flat Anti-Rotation	0.4 VA	On-On-On	Non-Illuminated	Panel Mount	20 V	12.3 mm	SP3T	20 V	Solder Lug	Jumper needed to achieve triple throw	1/4-40	0.25 "	Circular
E-Switch 100DP6T8B13M1QEH	Brass Chrome Plated	40000	85 °C	-30 °C	Standard Round	5 A	On-On-On	Non-Illuminated	Panel Mount	120 V	18 mm	SP3T	28 V	Solder Lug	Jumper needed to achieve triple throw	15/32-32	11.91 mm	Circular
