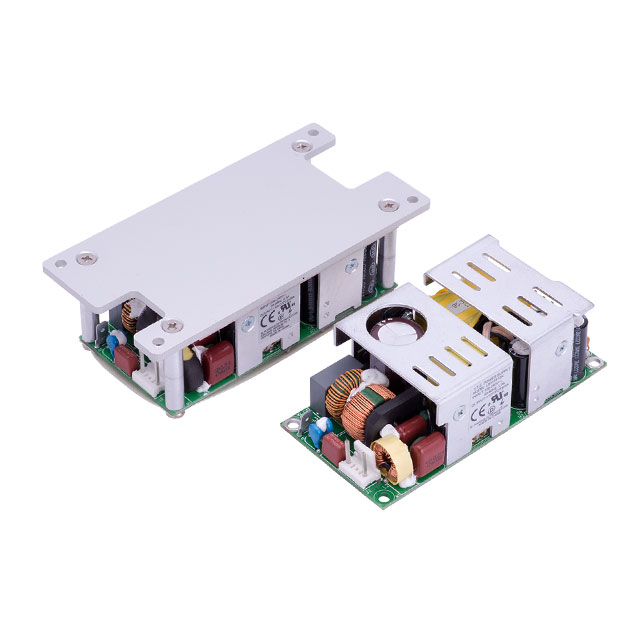

LB115S56 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K
AC/DC POWER SUPPLY SINGLE-OUT 56V 1.34(CONVECTION)A/2.05(FORCED AIR)A 115W 8-PIN
| Part | Minimum Load Required | Type | Features | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output 1 | Efficiency | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Applications | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Isolation | Power (Watts) | Power (Watts) | Number of Outputs | Mounting Type | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | Open Frame | Universal Input | CE | 70 °C | -20 °C | 1.34 A | 90 % | 32.1 mm | 2 in | 101.6 mm | 1.26 " | 50.8 mm | 4 " | ITE (Commercial) | 264 VAC | 90 VAC | 3000 V | 75 W | 115 W | 1 | Chassis Mount | 56 V |
