10HV16N Series
Manufacturer: KEMET
Beta
⌘K

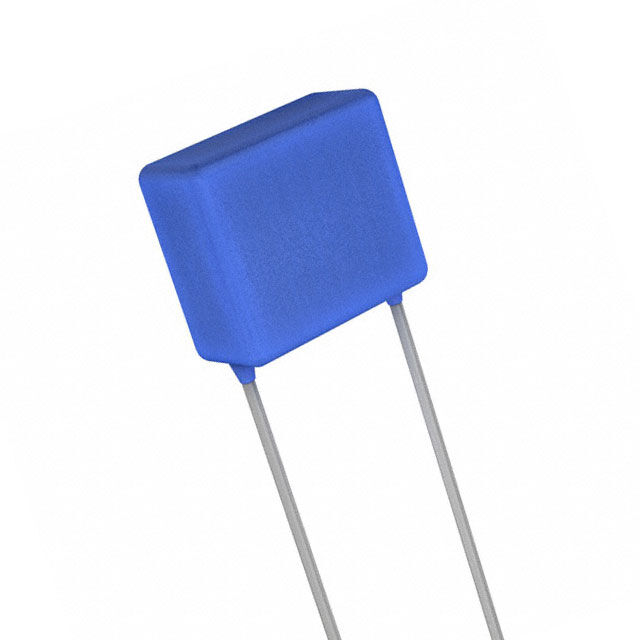

CAP CER 10000PF 1KV NP0 RADIAL
| Part | Lead Style | Applications | Temperature Coefficient | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Tolerance | Voltage - Rated | Voltage - Rated | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Capacitance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Lead Spacing | Lead Spacing | Package / Case | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | Straight | Downhole | C0G NP0 | 200 °C | -55 C | Through Hole | 10 % | 1 kV | 1000 V | 0.7 " | 17.78 mm | 10000 pF | 0.35 in | 20.83 mm | 8.89 mm | 0.82 " | 0.7 in | 17.78 mm | Radial | High Temperature High Voltage |
