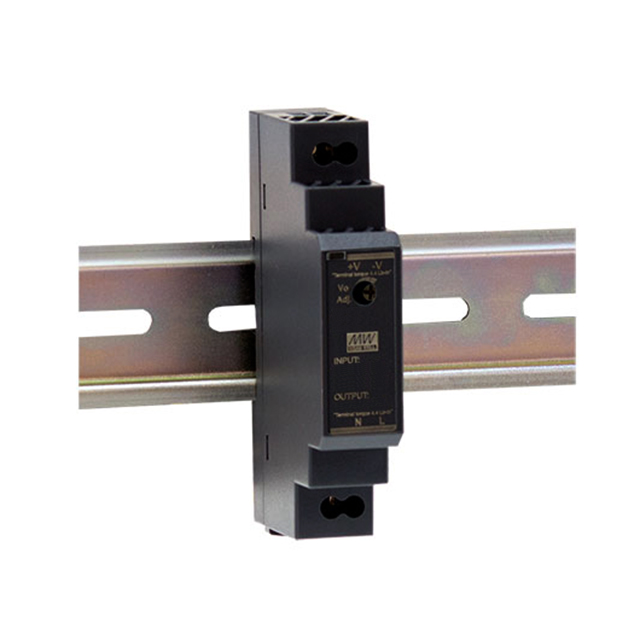

HDR-15 Series

Catalog

AC/DC DIN RAIL SUPPLY 24V 15W

Part	Features	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Voltage - Isolation	Voltage - Output 1	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Applications	Number of Outputs	DC Voltage - Input (Max) [Max]	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Current - Output (Max) [Max]	Efficiency	Input Type	DC Voltage - Input (Min) [Min]
MEAN WELL USA Inc. HDR-15-24	Adjustable Output Universal Input	-30 °C	70 °C	CB CE cULus cURus TUV	4000 V	24 V	15 W	0.69 "	54.5 mm	90 mm	3.54 "	2.15 "	17.5 mm	Industrial ITE (Commercial)	1	370 V	264 VAC	85 VAC	630 mA	86 %	AC or DC	120 V
MEAN WELL USA Inc. HDR-15-15	Adjustable Output Universal Input	-30 °C	70 °C	CB CE cULus cURus TUV	4000 V	15 V	15 W	0.69 "	54.5 mm	90 mm	3.54 "	2.15 "	17.5 mm	Industrial ITE (Commercial)	1	370 V	264 VAC	85 VAC	1 A	85.5 %	AC or DC	120 V
MEAN WELL USA Inc. HDR-15-48	Adjustable Output Universal Input	-30 °C	70 °C	CB CE cULus cURus TUV	4000 V	48 V	15 W	0.69 "	54.5 mm	90 mm	3.54 "	2.15 "	17.5 mm	Industrial ITE (Commercial)	1	370 V	264 VAC	85 VAC	320 mA	87 %	AC or DC	120 V
MEAN WELL USA Inc. HDR-15-5	Adjustable Output Universal Input	-30 °C	70 °C	CB CE cULus cURus TUV	4000 V	5 V	12 W	0.69 "	54.5 mm	90 mm	3.54 "	2.15 "	17.5 mm	Industrial ITE (Commercial)	1	370 V	264 VAC	85 VAC	2.4 A	80 %	AC or DC	120 V
