AWHW2-14 Series

Catalog

CONN HEADER VERT 14POS 2MM

Part	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Mating	Contact Length - Mating	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Connector Type	Material Flammability Rating	Contact Shape	Contact Finish Thickness - Mating	Termination	Number of Positions	Contact Material	Number of Positions Loaded	Shrouding	Contact Finish - Mating	Insulation Color	Insulation Height	Insulation Height	Features	Current Rating (Amps)	Mounting Type	Style	Fastening Type	Contact Type	Contact Length - Post [custom]	Contact Length - Post	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]

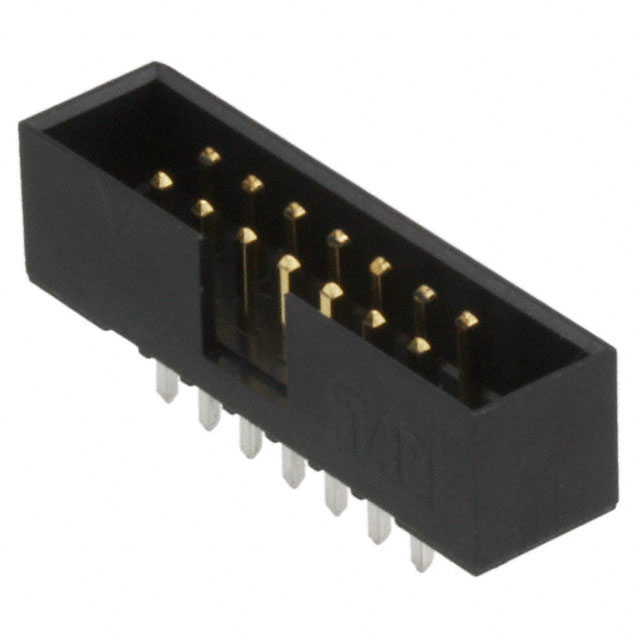

Assmann WSW Components AWHW2-14G-0202-T-R	2 mm	0.079 in	4 mm	0.157 in	2	-40 C	105 ░C	0.079 "	2 mm	Header	UL94 V-0	Square	Flash	Solder	14	Brass	All	Shrouded - 4 Wall	Gold	Black	5.74 mm	0.226 in	Keying Slot	1.5 A	Through Hole	Board to Cable/Wire	Push-Pull	Male Pin	0.11 in	2.79 mm	Glass Filled Nylon 9T Polyamide (PA9T)
Assmann WSW Components AWHW2-14G-SMD-R			4 mm	0.157 in	2	-40 C	105 ░C	0.1 "	2.54 mm	Header	UL94 V-0	Square	Flash	Solder	14	Brass	All	Shrouded - 4 Wall	Gold	Black	5.74 mm	0.226 in	Keying Slot Pick and Place	1.5 A	Surface Mount	Board to Cable/Wire	Push-Pull	Male Pin			Glass Filled Nylon 9T Polyamide (PA9T)	0.1 in	2.54 mm
