CFM21M090 Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K

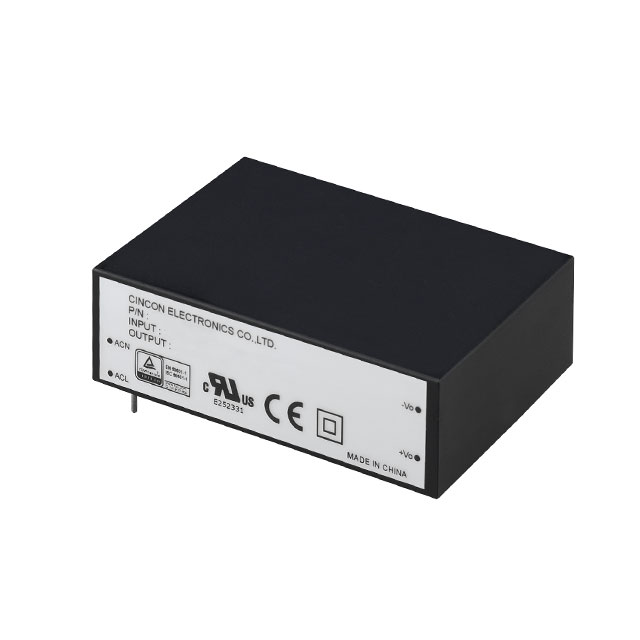

AC/DC CONVERTER 9V 21W
| Part | Load Regulation | Line Regulation | Number of Outputs | Package / Case | Applications | Voltage - Output 1 | Voltage - Input [Max] | Voltage - Input [Min] | Power (Watts) | Type | Standard Number | Features | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Approval Agency | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | ±1% | 0.5 % | 1 | Module | Household Appliances ITE (Commercial) | 9 V | 264 VAC | 90 VAC | 21 W | Enclosed | 60335-1 62368-1 | Universal Input | 1.74 " | 64.2 mm | 0.8 " | 20.4 mm | 44.2 mm | 2.53 in | Through Hole | 70 °C | -25 °C | 2.3 A | CE cURus TUV | 83 % |
