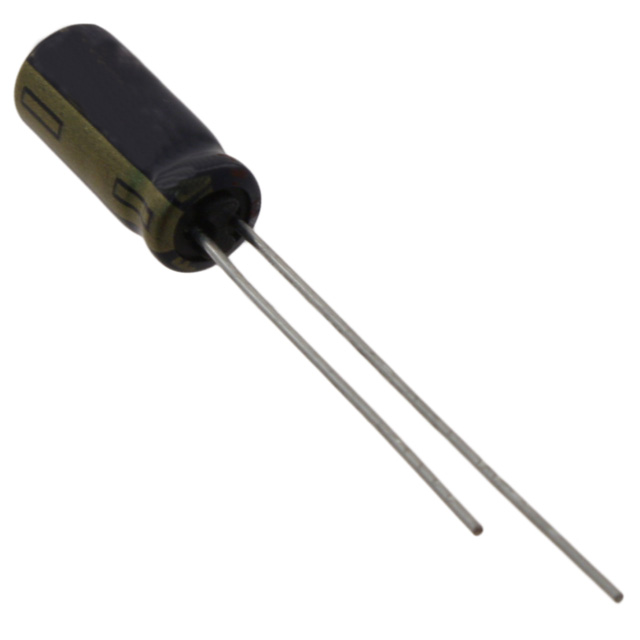

EEA-FC Series

Catalog

CAP ALUM 27UF 20% 6.3V RADIAL TH

Part	Capacitance	Ripple Current @ Low Frequency	Lead Spacing	Lead Spacing	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ripple Current @ High Frequency	Lifetime @ Temp.	Polarization	Ratings	Impedance	Applications
Panasonic Electronic Components EEA-FC0J270H	27 µF	42.25 mA	2.5 mm	0.098 in	Can Radial	-55 C	105 ░C	Through Hole	4 mm	0.157 in	6.3 VDC	20 %	8 mm	0.315 in	65 mA	1000 Hrs	Polar	AEC-Q200	2 Ohms	Automotive
Panasonic Electronic Components EEA-FC0J121H	120 µF	130 mA	2.5 mm	0.098 in	Can Radial	-55 C	105 ░C	Through Hole	6.3 mm	0.248 "	6.3 VDC	20 %	8 mm	0.315 in	200 mA	1000 Hrs	Polar	AEC-Q200	450 mOhms	Automotive
Panasonic Electronic Components EEA-FC0J270B	27 µF	42.25 mA	5 mm	0.197 "	Can Radial	-55 C	105 ░C	Through Hole	4 mm	0.157 in	6.3 VDC	20 %	9.5 mm	0.374 "	65 mA	1000 Hrs	Polar	AEC-Q200	2 Ohms	Automotive
Panasonic Electronic Components EEA-FC0J560H	56 µF	78 mA	2.5 mm	0.098 in	Can Radial	-55 C	105 ░C	Through Hole	5 mm	0.197 in	6.3 VDC	20 %	8 mm	0.315 in	120 mA	1000 Hrs	Polar	AEC-Q200	950 mOhms	Automotive
Panasonic Electronic Components EEA-FC0J121B	120 µF	130 mA	5 mm	0.197 "	Can Radial	-55 C	105 ░C	Through Hole	6.3 mm	0.248 "	6.3 VDC	20 %	9.5 mm	0.374 "	200 mA	1000 Hrs	Polar	AEC-Q200	450 mOhms	Automotive
