FI-S6 Series

Catalog

CONN HEADER SMD R/A 6POS 1.25MM

Part	Shrouding	Contact Type	Connector Type	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Termination	Contact Finish - Post	Mounting Type	Style	Features	Pitch - Mating	Pitch - Mating	Number of Rows	Insulation Color	Contact Material	Voltage Rating	Number of Positions	Contact Shape	Material Flammability Rating	Fastening Type	Number of Positions Loaded	Current Rating (Amps)

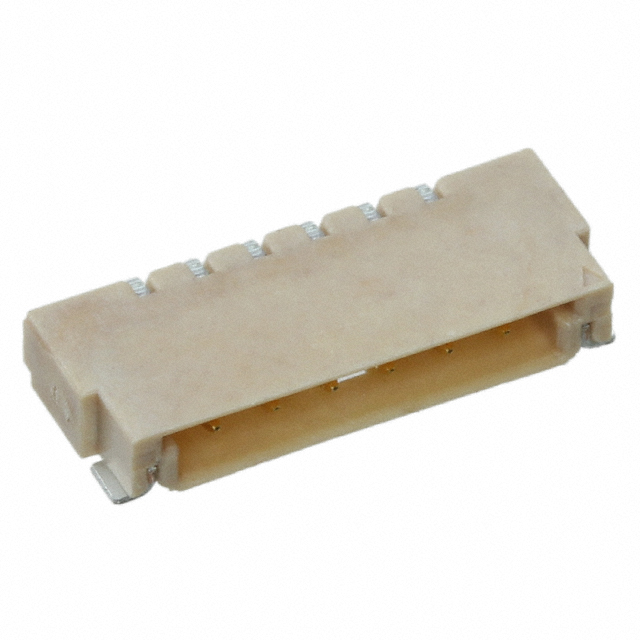

JAE Electronics FI-S6P-HFE-E1500	Shrouded - 4 Wall	Male Pin	Receptacle	1.8 mm	0.071 in	80 °C	-40 C	Gold	Solder	Tin Tin-Alloy	Right Angle Surface Mount	Board to Cable/Wire	Solder Retention	0.049 in	1.25 mm	1	Beige	Copper Alloy	200 V	6	Square	UL94 V-0	Friction Lock	All	1 A

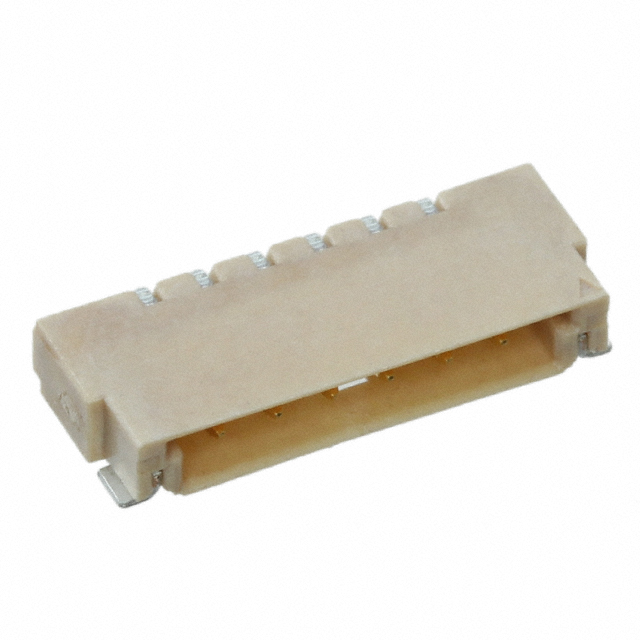

JAE Electronics FI-S6P-HFE	Shrouded - 4 Wall	Male Pin	Receptacle	1.8 mm	0.071 in	80 °C	-40 C	Gold	Solder	Tin Tin-Alloy	Right Angle Surface Mount	Board to Cable/Wire	Solder Retention	0.049 in	1.25 mm	1	Beige	Copper Alloy	200 V	6	Square	UL94 V-0	Friction Lock	All	1 A
