DME Series

Manufacturer: Adam Tech

Catalog

HEADERS & WIRE HOUSINGS 6.35MM PCB HEADER, 5 POSITION

Part	Contact Material	Insulation Material	Contact Shape	Applications	Insulation Height	Insulation Height	Contact Type	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Number of Rows	Mounting Type	Insulation Color	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Termination	Contact Finish - Post	Voltage Rating	Number of Positions Loaded	Fastening Type	Style	Features	Shrouding	Note	Contact Termination	Pitch	Pitch	Color	Contact Length - Post [x]	Row Spacing - Mating	Row Spacing - Mating	Number of Rows [custom]	Type	Wire Gauge [Max]	Wire Gauge [Min]	Pin or Socket	Contact Finish

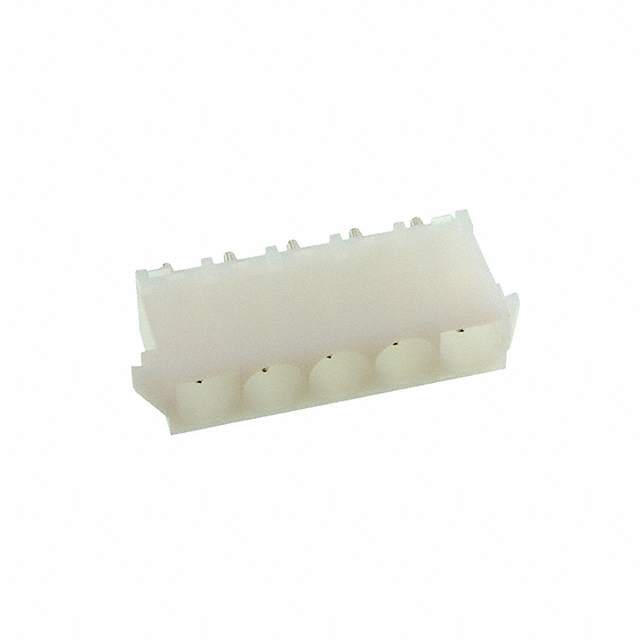

Adam Tech DME-05-S-S	Brass	Nylon 6/6 Polyamide (PA66)	Circular	General Purpose	0.55 in	13.97 mm	Female Socket	4.5 mm	0.177 in	UL94 V-2	1	Through Hole	Natural	Receptacle	85 °C	-25 °C	5	6.35 mm	0.25 in	13 A	Solder	Tin	600 VAC	All	Locking Ramp
Adam Tech DME-M-05-RA-E	Phosphor Bronze	Nylon 6/6 Polyamide (PA66)	Circular		0.36 in	9.14 mm	Male Pin	4.06 mm	0.16 in	UL94 V-2	1	Right Angle Through Hole	Natural	Header	105 ░C	-55 C	5	6.35 mm	0.25 in	13 A	Solder	Tin	600 VAC	All	Locking Ramp	Board to Cable/Wire	Mounting Flange	Shrouded - 4 Wall

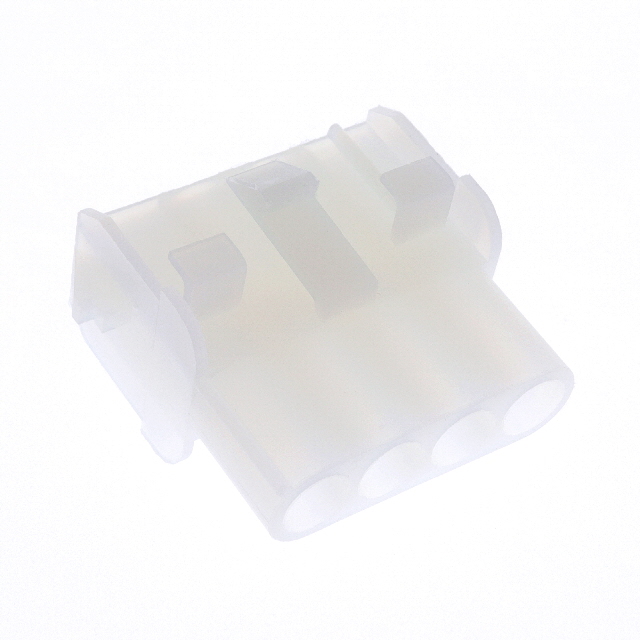

Adam Tech DME-F2-04		Nylon 6/6 Polyamide (PA66)					Female Socket				1	Free Hanging (In-Line)		Receptacle	105 ░C	-40 C	4								Locking Ramp				Contacts Not Included	Crimp	6.35 mm	0.25 in	Natural
Adam Tech DME-08-S-S					0.55 in	13.97 mm	Female Socket	4.5 mm	0.177 in	UL94 V-2	1	Through Hole	Natural	Receptacle	85 °C	-25 °C	8	6.35 mm	0.25 in	13 A	Solder	Tin	600 VAC	All	Locking Ramp

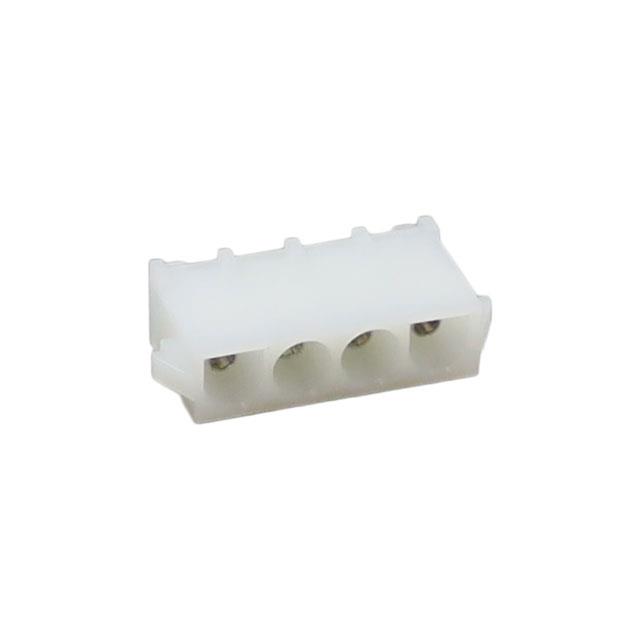

Adam Tech DME-F-04-S2-S	Phosphor Bronze	Nylon 6/6 Polyamide (PA66)	Circular		0.581 "	14.75 mm	Female Socket	4 mm		UL94 V-2	1	Through Hole	Natural	Receptacle	105 ░C	-40 C	4	6.35 mm	0.25 in	12 Amps	Solder	Tin		All	Locking Ramp									0.157 in

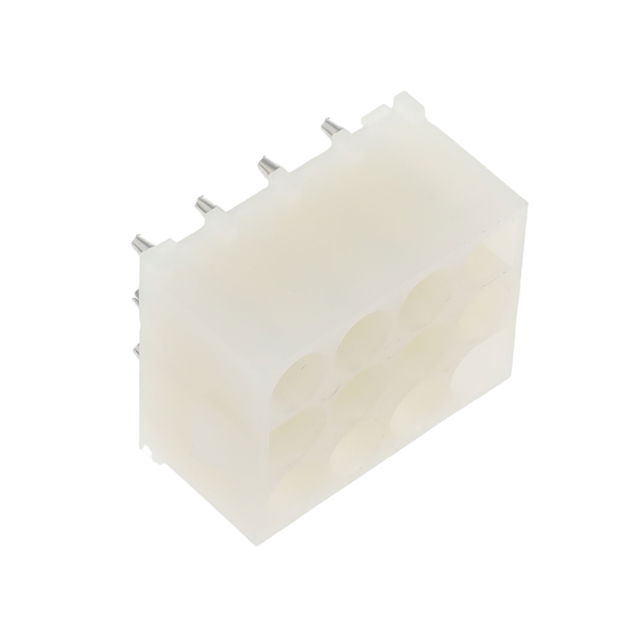

Adam Tech DME-F-12-S2-SQ	Phosphor Bronze	Nylon 6/6 Polyamide (PA66)	Circular		0.581 "	14.75 mm	Female Socket	4 mm		UL94 V-2		Through Hole	Natural	Receptacle	105 ░C	-40 C	12	6.35 mm	0.25 in	9 A	Solder	Tin		All	Locking Ramp									0.157 in	6.35 mm	0.25 in	3
Adam Tech DME-B2-C-M-R																														Crimp								Stamped	20 AWG	16 AWG	Pin	Tin
Adam Tech DME-15-S-P-SQ-V0					0.55 in	13.97 mm	Female Socket	4.5 mm	0.177 in	UL94 V-0		Through Hole	Natural	Header	105 ░C	-55 C	15	6.35 mm	0.25 in	13 A	Solder		600 VAC	All	Locking Ramp		Polarizing Key								6.35 mm	0.25 in	3
Adam Tech DME-02-S-P-S	Phosphor Bronze	Nylon 6/6 Polyamide (PA66)	Circular	General Purpose	0.55 in	13.97 mm	Female Socket	4.5 mm	0.177 in	UL94 V-2	1	Through Hole	Natural	Receptacle	85 °C	-25 °C	2	6.35 mm	0.25 in	13 A	Solder	Tin	600 VAC	All	Locking Ramp		Board Guide
