OSTT707 Series

Catalog

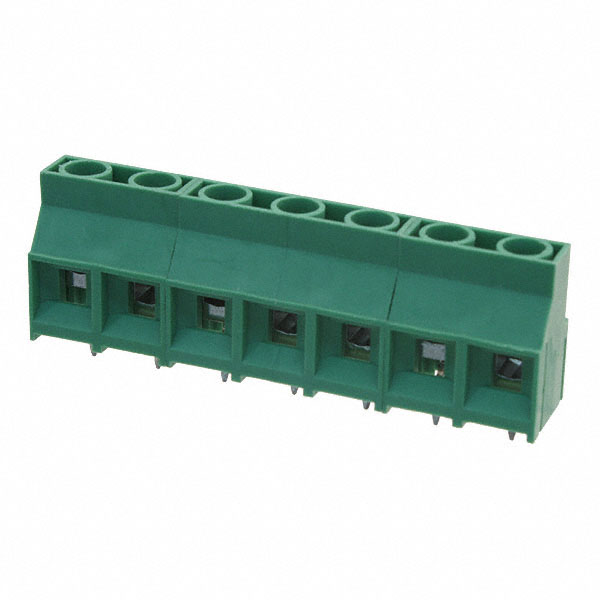

TERM BLK 7P SIDE ENT 9.53MM PCB

Part	Housing Material	Contact Material - Plating	Screw Thread	Screw Material - Plating	Torque - Screw	Torque - Screw	Clamp Material - Plating	Operating Temperature [Max]	Operating Temperature [Min]	Current	Number of Levels	Wire Termination	Voltage	Mating Orientation	Pitch	Pitch	Features	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Color	Positions Per Level [custom]
On Shore Technology Inc. OSTT7072150	Thermoplastic	Brass	M3	Steel - Zinc Plated	1 Nm	8.9 Lb-In	Brass	115 °C	-40 C	30 A	1	Screw - Rising Cage Clamp	300 VDC	Horizontal with Board	9.53 mm	0.375 in	Interlocking (Side)	24 AWG	10 AWG	Through Hole	Green	7
On Shore Technology Inc. OSTT7070150	Thermoplastic	Brass	M3	Steel - Zinc Plated	1 Nm	8.9 Lb-In	Brass	105 ░C	-30 ░C	25 A	1	Screw - Rising Cage Clamp	300 VDC	Horizontal with Board	6.35 mm	0.25 in	Interlocking (Side)	24 AWG	10 AWG	Through Hole	Green	7
On Shore Technology Inc. OSTT7074350	Thermoplastic	Brass	M3	Steel - Zinc Plated	0.49 Nm	4.3 Lb-In	Brass	105 ░C	-30 ░C	25 A	1	Screw - Rising Cage Clamp	300 VDC	Horizontal with Board	7.62 mm	0.3 in	Interlocking (Side)	24 AWG	12 AWG	Through Hole	Green	7
