R201L Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

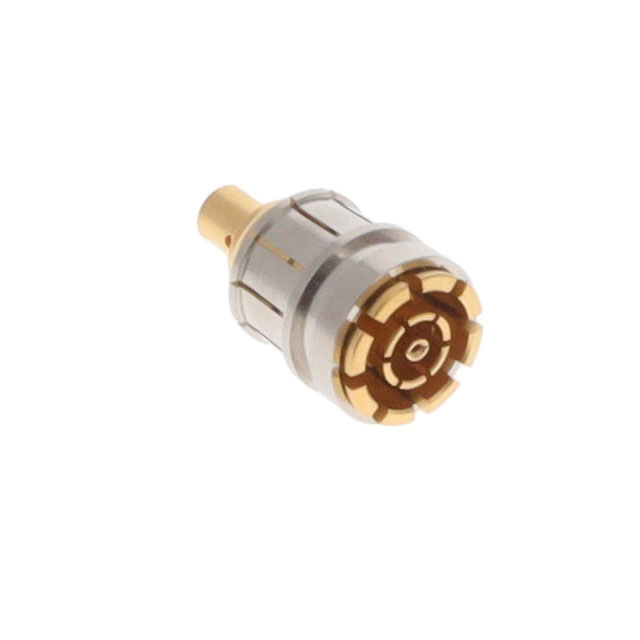

SMPM-LOCK / STRAIGHT PLUG SOLDER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Body Finish | Voltage Rating | Dielectric Material | Center Contact Plating | Mating Cycles | Center Contact Material | Frequency - Max [Max] | Number of Ports | Contact Termination | Fastening Type | Housing Color | Connector Style | Cable Group | Shield Termination | Mounting Type | Connector Type | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | Beryllium Copper | Gold | 125 VDC | Polyetheretherketone (PEEK) Polytetrafluoroethylene (PTFE) | Gold | 500 | Beryllium Copper | 65 GHz | 1 | Solder | Snap-On | Gold | SMPM | 0.047 in | Solder | Free Hanging (In-Line) | Female Socket Plug | 50 Ohms |

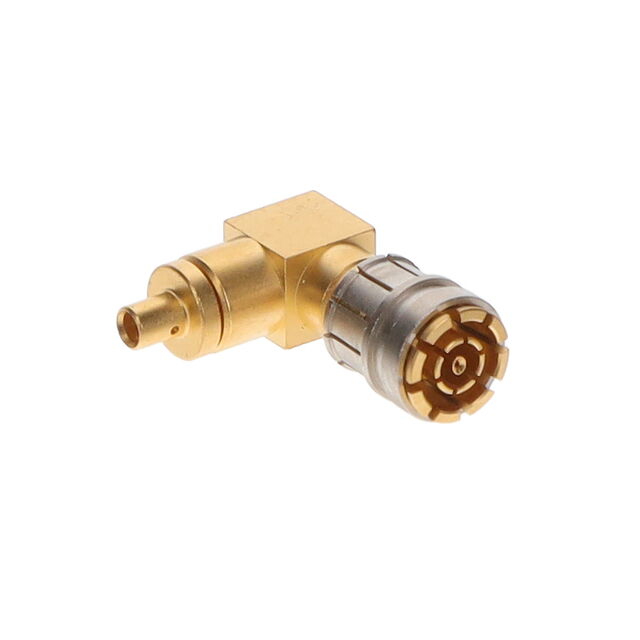

 Radiall USA, Inc. | 1 | Solder | Snap-On | Gold | SMPM | 0.047 in | Solder | Free Hanging (In-Line) Right Angle | Female Socket Plug | |||||||||||

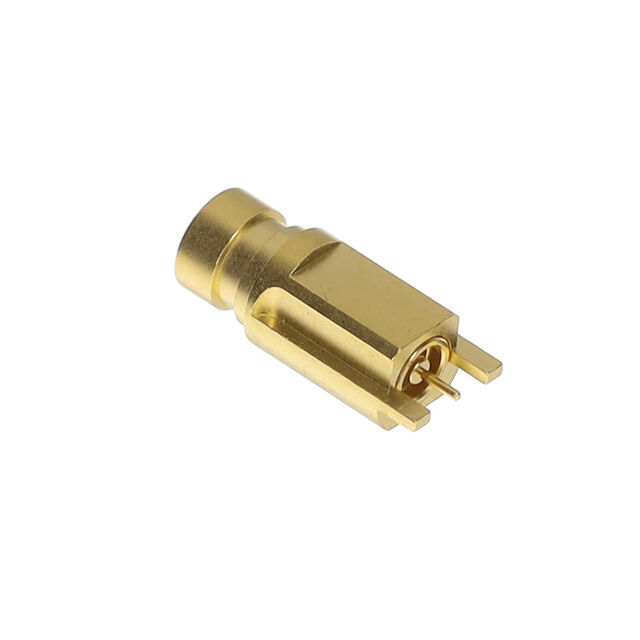

 Radiall USA, Inc. | -65 ░C | 165 °C | Beryllium Copper | Gold | 125 VDC | Polyetheretherketone (PEEK) | Gold | 500 | Beryllium Copper | 65 GHz | 1 | Solder | Snap-On | Gold | SMPM | Solder | Board Edge Cutout Surface Mount | Receptacle Male Pin | 50 Ohms | |
 Radiall USA, Inc. | -65 ░C | 165 °C | Beryllium Copper | Gold | 125 VDC | Polyetheretherketone (PEEK) | Gold | 500 | Beryllium Copper | 65 GHz | 1 | Solder | Snap-On | Gold | SMPM | Solder | Board Edge Cutout Surface Mount | Receptacle Male Pin | 50 Ohms |
