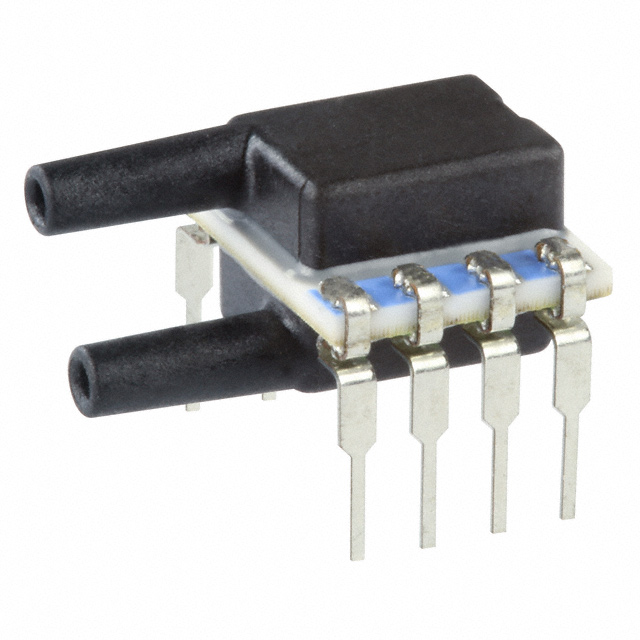

NSCDJJN Series

Catalog

SENSOR 0.58PSID 0.09" .0375V DIP

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Output	Output [Max]	Output [Min]	Applications	Termination Style	Operating Pressure	Operating Pressure	Supplier Device Package	Port Style	Output Type	Port Size [x]	Port Size [x]	Package / Case	Package / Case	Package / Case	Mounting Type	Maximum Pressure	Maximum Pressure	Pressure Type	Accuracy	Output
Honeywell Sensing and Productivity Solutions NSCDJJN040MDUNV	6.5 V	2.7 V	85 °C	-40 °C	5V	37.5 mV	0 mV	Board Mount	PC Pin	0.58 PSI	4 kPa	8-DIP	Barbless	Wheatstone Bridge	0.09 "	2.34 mm	8-DIP Dual Ports Same Side	13.3 mm	0.524 "	Through Hole	85 kPa	12.33 PSI	Differential	0.25 %
Honeywell Sensing and Productivity Solutions NSCDJJN005NDUNV	6.5 V	2.7 V	85 °C	-40 °C		327.5 mV	0 mV	Board Mount	PC Pin	0.18 PSI	1.25 kPa	8-DIP	Barbless	Wheatstone Bridge	0.09 "	2.34 mm	8-DIP Dual Ports Same Side	13.3 mm	0.524 "	Through Hole	74.75 kPa	10.84 PSI	Differential	0.25 %	5 V
Honeywell Sensing and Productivity Solutions NSCDJJN001PDUNV
