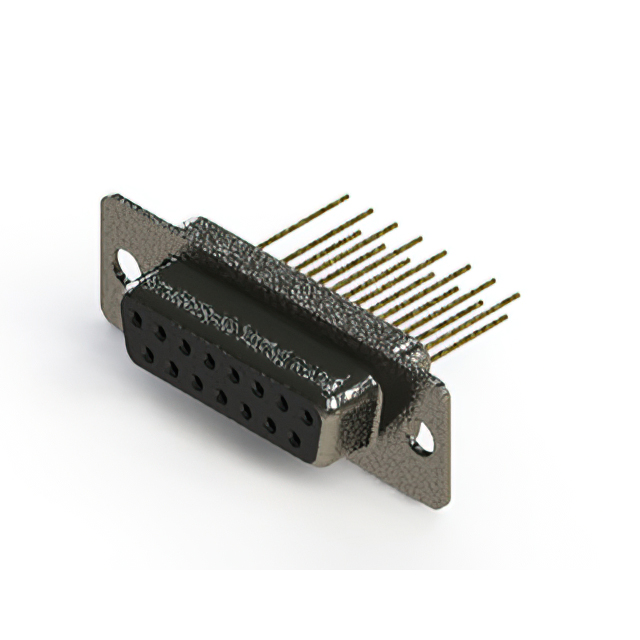

628-M15 Series
Manufacturer: EDAC Inc.
Beta
⌘K
D-SUB STANDARD CONNECTORS VERTICAL MACHINED D-SUB CONNECTOR
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Color | Number of Positions | Current Rating (Amps) | Termination | Shell Material, Finish | Material Flammability Rating | Flange Feature | Contact Type | Number of Rows [custom] | Connector Type | Mounting Type | Contact Finish | Features | Shell Size, Connector Layout | Connector Style | Contact Finish Thickness | Contact Finish Thickness | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

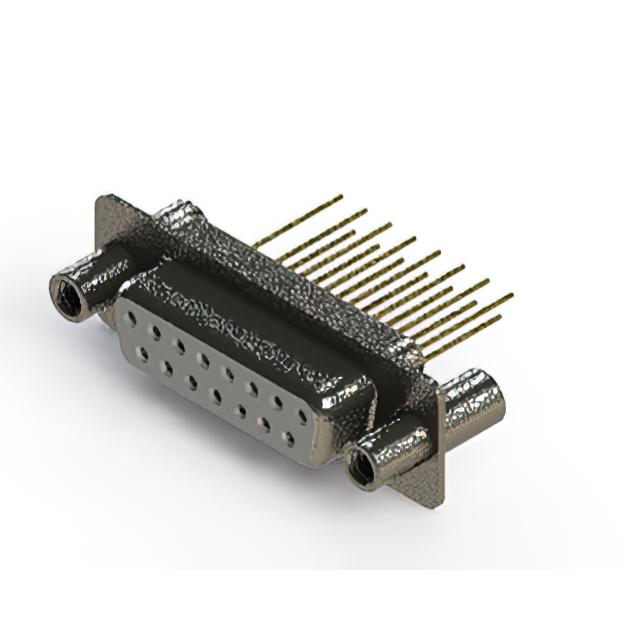

 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | White | 15 | 5 A | Solder | Nickel Plated Steel | UL94 V-0 | 4-40 | Signal and Power | 2 | Receptacle Female Sockets | Through Hole | Gold | Board Lock Shielded | 2 | D-Sub | 0.38 µm | 15 µin | ||

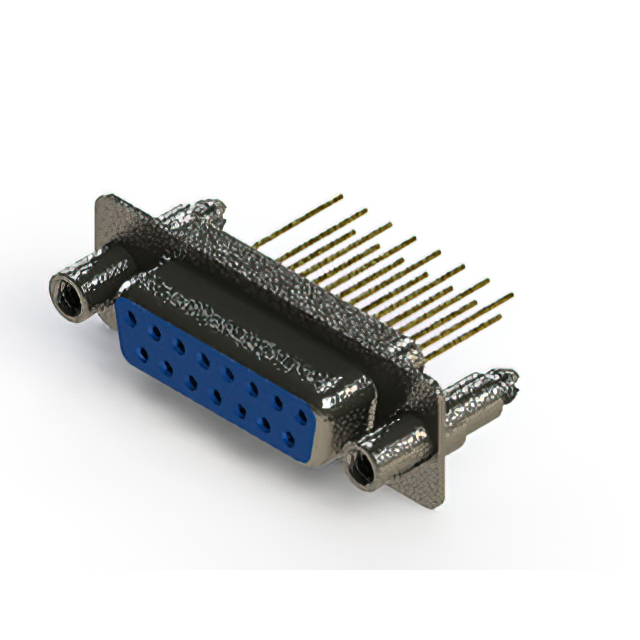

 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Blue | 15 | 5 A | Solder | UL94 V-0 | 4-40 | Signal and Power | 2 | Receptacle Female Sockets | Through Hole | Gold | Board Lock Shielded | 2 | D-Sub | 0.38 µm | 15 µin | |||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Black | 15 | 5 A | Solder | Nickel Plated Steel | UL94 V-0 | Housing/Shell (Unthreaded) | Signal and Power | 2 | Receptacle Female Sockets | Through Hole | Gold | Shielded | 2 | D-Sub | 0.76 Ám | 30 Áin | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Blue | 15 | 5 A | Solder | UL94 V-0 | 4-40 | Signal and Power | 2 | Receptacle Female Sockets | Through Hole | Gold | Board Lock Shielded | 2 | D-Sub | 0.38 µm | 15 µin | |||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Blue | 15 | 5 A | Solder | Nickel Plated Steel | UL94 V-0 | Board Side (4-40) | Signal and Power | 2 | Receptacle Female Sockets | Through Hole | Gold | Shielded | 2 | D-Sub | 0.38 µm | 15 µin | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Blue | 15 | 5 A | Solder | Nickel Plated Steel | UL94 V-0 | 4-40 | Signal and Power | 2 | Receptacle Female Sockets | Through Hole | Gold | Board Lock Shielded | 2 | D-Sub | Flash | |||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | White | 15 | 5 A | Solder | Nickel Plated Steel | UL94 V-0 | 4-40 | Signal and Power | 2 | Receptacle Female Sockets | Through Hole | Gold | Board Lock Shielded | 2 | D-Sub | Flash | |||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Blue | 15 | 5 A | Solder | UL94 V-0 | 4-40 | Signal and Power | 2 | Receptacle Female Sockets | Through Hole | Gold | Board Lock Shielded | 2 | D-Sub | Flash | ||||

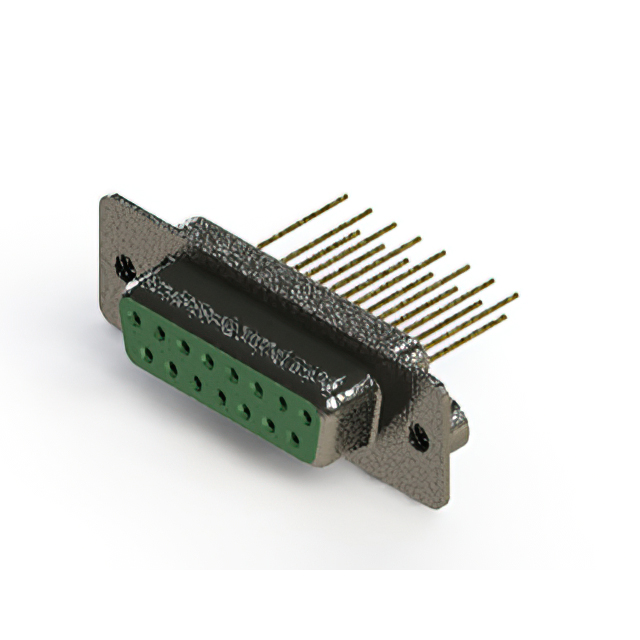

 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Green | 15 | 5 A | Solder | Nickel Plated Steel | UL94 V-0 | Housing/Shell | Signal and Power | 2 | Receptacle Female Sockets | Through Hole | Gold | Shielded | 2 | D-Sub | 0.76 Ám | 30 Áin | 4-40 | |

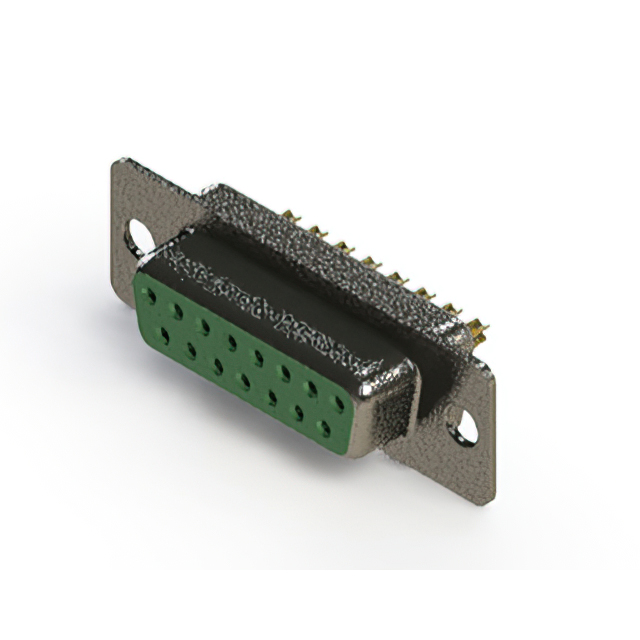

 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Green | 15 | 5 A | Nickel Plated Steel | UL94 V-0 | Housing/Shell (Unthreaded) | Signal and Power | 2 | Receptacle Female Sockets | Free Hanging (In-Line) | Gold | Shielded | 2 | D-Sub | Flash |
