C146 10F010 Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

CONN BASE BOTTOM ENTRY SZE10

Part	Housing Material	Lock Location	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Ingress Protection	Size	Connector Type	Style	Thread Size	Features

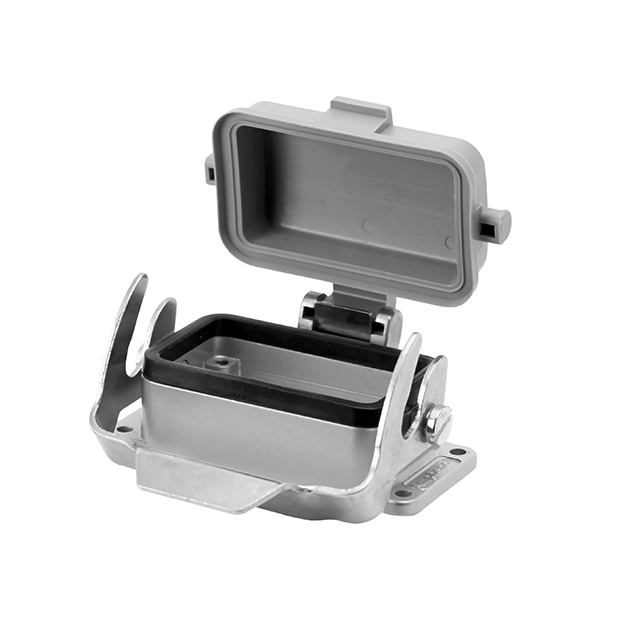

Amphenol Tuchel Industrial C146 10F010 003 1	Aluminum Alloy Die Cast	Locking Clip (1) on Base Bottom	-40 C	100 °C	3.661 "	28.5 mm	1.693 "	93 mm	43 mm	1.122 "	IP65 - Dust Tight Water Resistant	E10	Base - Panel Mount	Bottom Entry

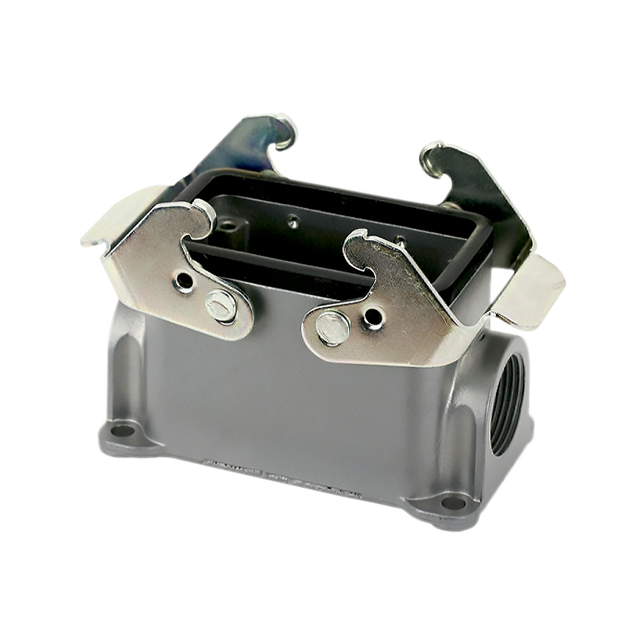

Amphenol Tuchel Industrial C146 10F010 600 1	Aluminum Alloy Die Cast	Locking Clip (2) on Base Bottom	-40 C	100 °C	3.701 in	57 mm	2.126 in	94 mm	54 mm	2.244 "	IP65 - Dust Tight Water Resistant	E10	Base - Box Mount	Side Entry	PG16	Feed Through

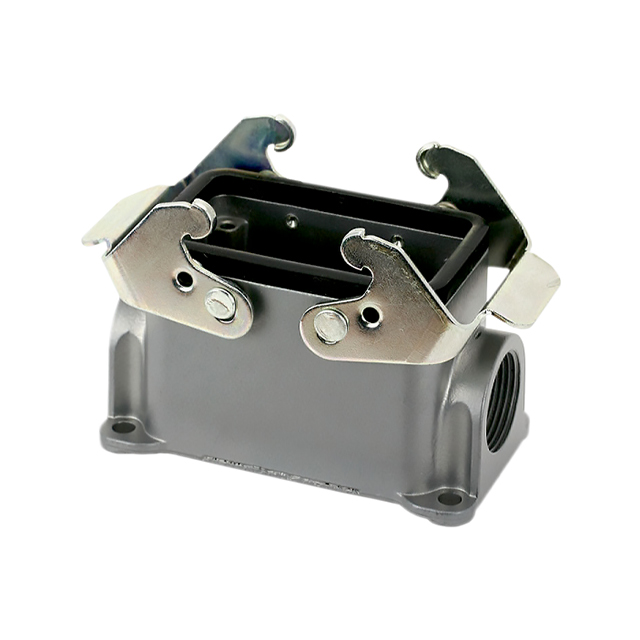

Amphenol Tuchel Industrial C146 10F010 606 1	Aluminum Alloy Die Cast	Locking Clip (1) on Base Bottom	-40 C	100 °C	3.701 in	57 mm	2.126 in	94 mm	54 mm	2.244 "	IP65 - Dust Tight Water Resistant	E10	Base - Box Mount	Side Entry	PG16
Amphenol Tuchel Industrial C146 10F010 000 3	Aluminum Alloy Die Cast	Locking Clip (2) on Base Bottom	-40 C	100 °C							IP65 - Dust Tight Water Resistant	E10	Base - Panel Mount	Bottom Entry

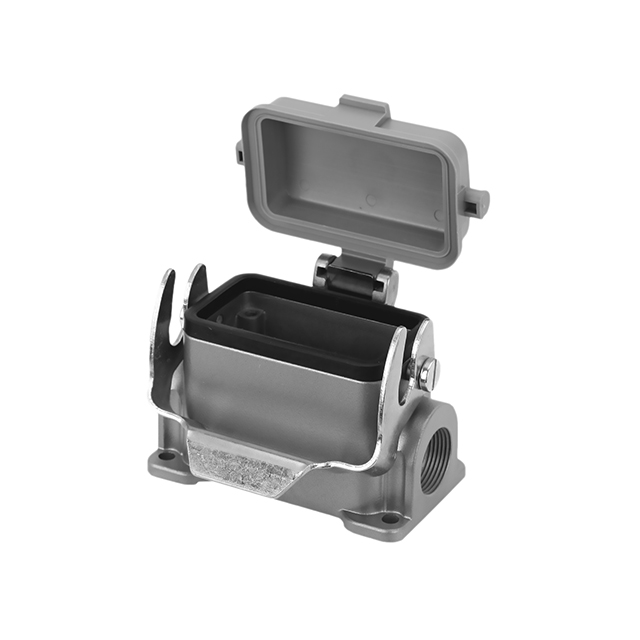

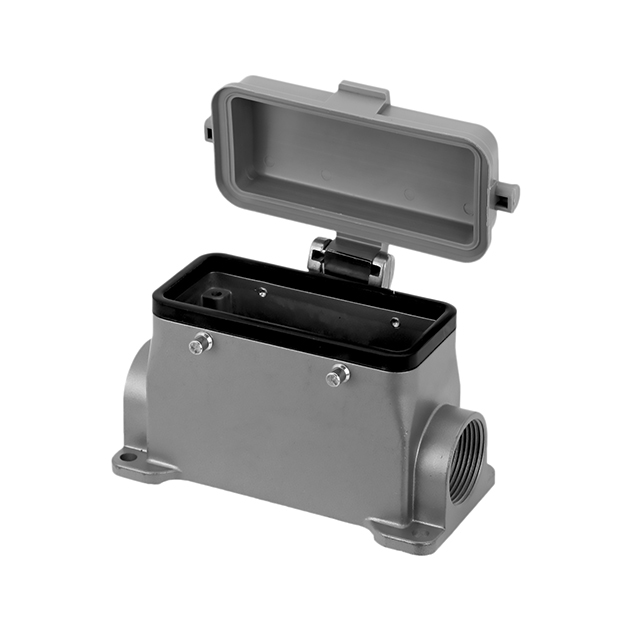

Amphenol Tuchel Industrial C146 10F010 804 1	Aluminum Alloy Die Cast	Locking Clip (2) on Hood	-40 C	100 °C	3.701 in	57 mm	2.126 in	94 mm	54 mm	2.244 "	IP65 - Dust Tight Water Resistant	E10	Base - Box Mount	Side Entry	PG16	Cover

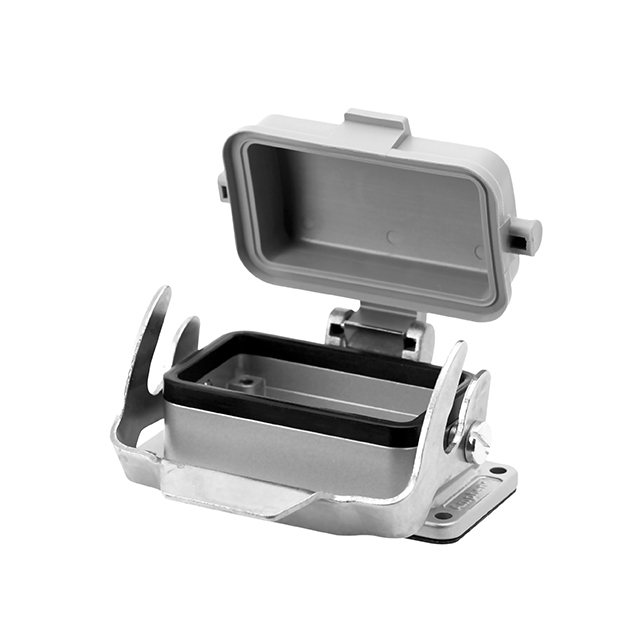

Amphenol Tuchel Industrial C146 10F010 002 1	Aluminum Alloy Die Cast	Locking Clip (2) on Hood	-40 C	100 °C	3.661 "	28.5 mm	1.693 "	93 mm	43 mm	1.122 "	IP65 - Dust Tight Water Resistant	E10	Base - Panel Mount	Bottom Entry
Amphenol Tuchel Industrial C146 10F010 500 1	Aluminum Alloy Die Cast	Locking Clip (2) on Base Bottom	-40 C	100 °C	3.701 in	57 mm	2.126 in	94 mm	54 mm	2.244 "	IP65 - Dust Tight Water Resistant	E10	Base - Box Mount	Side Entry	PG16
