628-11W Series
Manufacturer: EDAC Inc.
Beta
⌘K

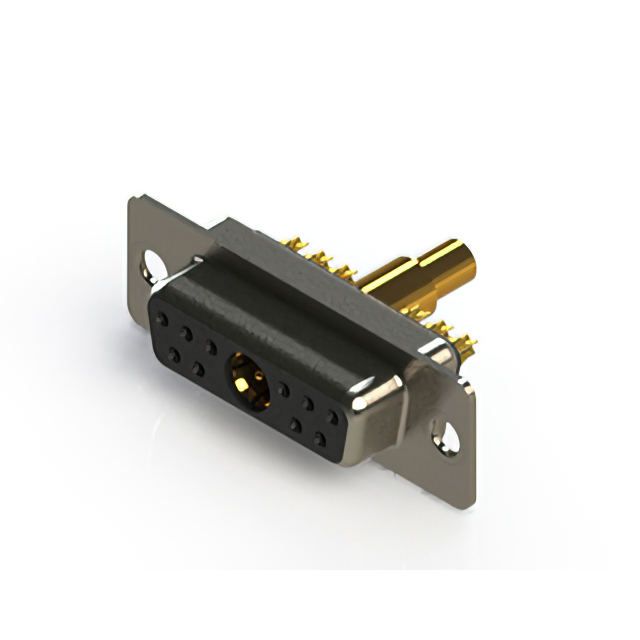

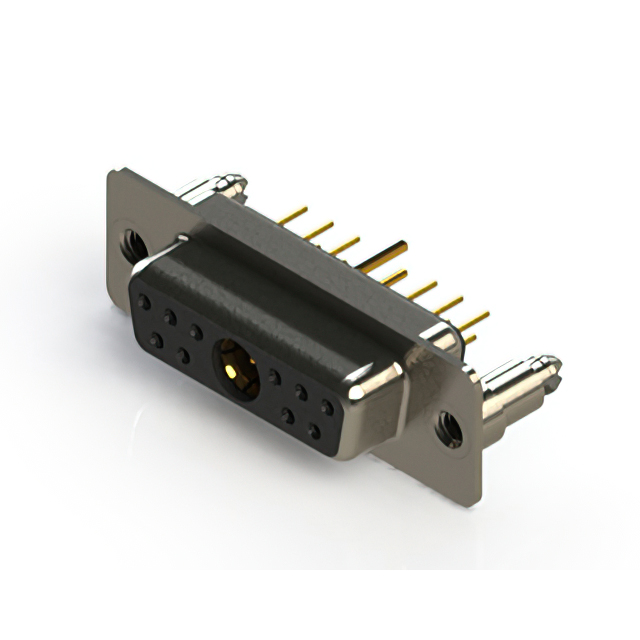

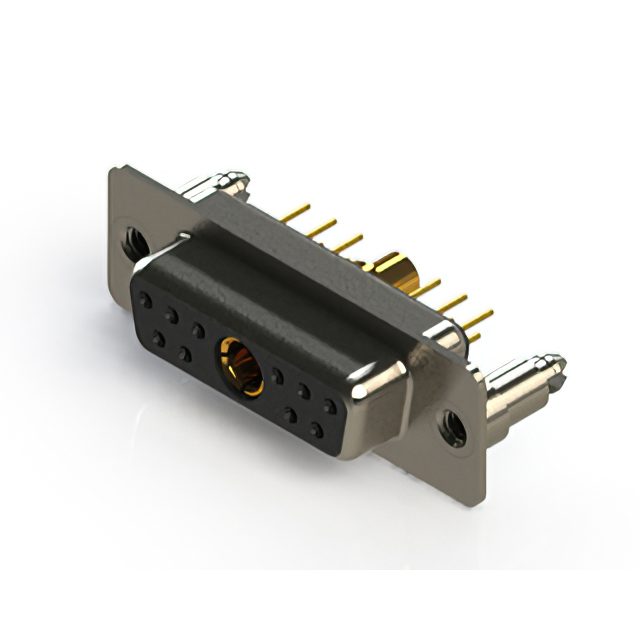

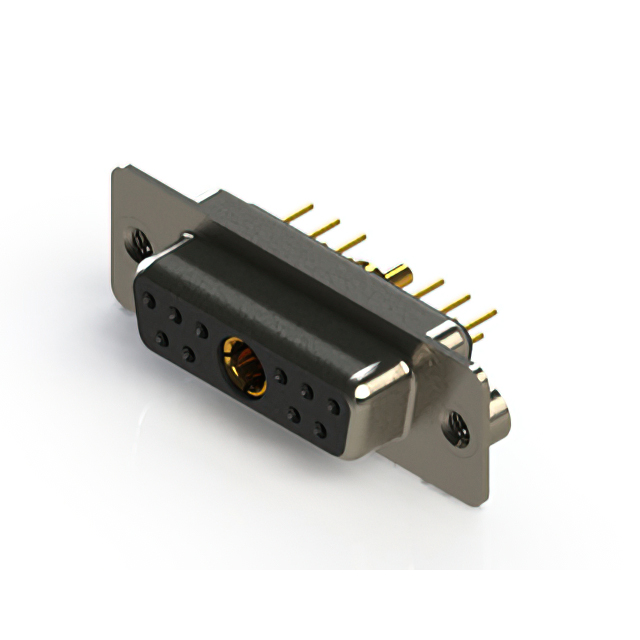

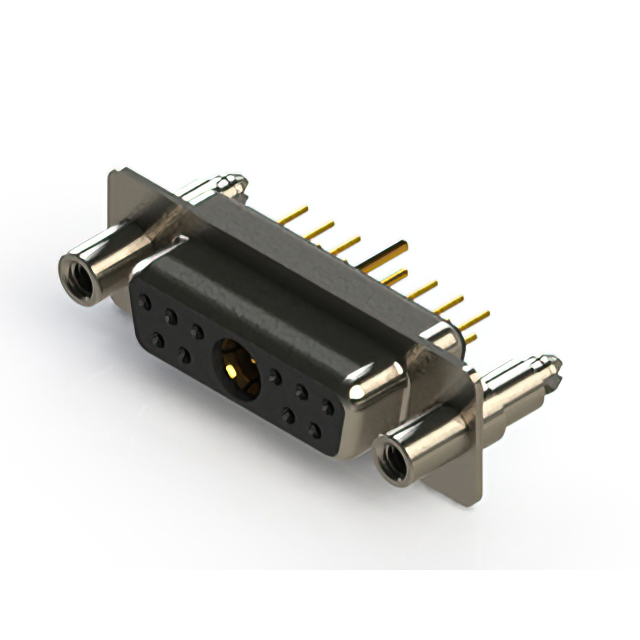

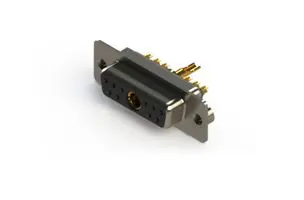

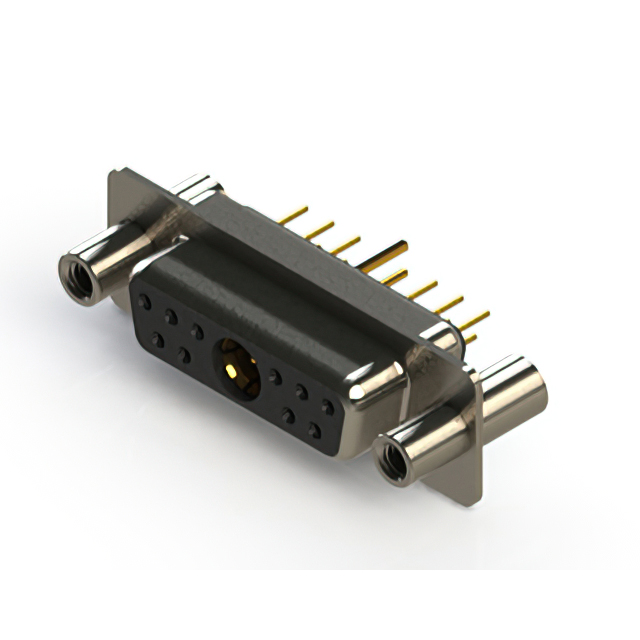

COMBINATION LAYOUT D SUB CONNECTOR, 628C SERIES, DA-11W1, RECEPTACLE, 11 CONTACTS
| Part | Color | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Contact Material | Connector Style | Material Flammability Rating | Contact Type | Shell Size, Connector Layout | Connector Type | Contact Finish Thickness | Flange Feature | Number of Rows [custom] | Contact Finish | Mounting Type | Number of Positions [custom] | Number of Positions [custom] | Features | Termination | Current Rating (Amps) | Shell Material, Finish | Current Rating (Amps) | Number of Positions [custom] | Number of Positions [custom] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Black | Polyester Thermoplastic | -55 C | 125 °C | 125 VDC | Copper Alloy | Combo D-Sub | UL94 V-0 | Signal and Power | 2 (DA A) - 11C1 11W1 | Receptacle Female Sockets | Flash | Board Side (4-40) | 2 | Gold | Through Hole | 10 | 1 | Board Lock Shielded | Solder | 5 A 40 A | Nickel Plated Steel | |||||
 EDAC Inc. | Black | Polyester Thermoplastic | -55 C | 125 °C | 125 VDC | Copper Alloy | Combo D-Sub | UL94 V-0 | Signal and Power | 2 (DA A) - 11C1 11W1 | Receptacle Female Sockets | Flash | M3 | 2 | Gold | Through Hole | 10 | 1 | Shielded | Solder | Nickel Plated Steel | 10A 5A | |||||
 EDAC Inc. | Black | Polyester Thermoplastic | -55 C | 125 °C | 125 VDC | Copper Alloy | Combo D-Sub | UL94 V-0 | Signal and Power | 2 (DA A) - 11C1 11W1 | Receptacle Female Sockets | Flash | Board Side (M3) | 2 | Gold | Through Hole | 10 | 1 | Shielded | Solder | 5 A 30 A | Nickel Plated Steel | |||||
 EDAC Inc. | Black | Polyester Thermoplastic | -55 C | 125 °C | 125 VDC | Copper Alloy | Combo D-Sub | UL94 V-0 | Coax Signal | 2 (DA A) - 11C1 11W1 | Receptacle Female Sockets | Flash | Housing/Shell (Unthreaded) | 2 | Gold | Free Hanging (In-Line) | Shielded | Nickel Plated Steel | 1 | 10 | |||||||
 EDAC Inc. | Black | Polyester Thermoplastic | -55 C | 125 °C | 125 VDC | Copper Alloy | Combo D-Sub | UL94 V-0 | Signal and Power | 2 (DA A) - 11C1 11W1 | Receptacle Female Sockets | Flash | Board Side (4-40) | 2 | Gold | Through Hole | 10 | 1 | Shielded | Solder | 5 A 40 A | Nickel Plated Steel | |||||
 EDAC Inc. | Black | Polyester Thermoplastic | -55 C | 125 °C | 125 VDC | Copper Alloy | Combo D-Sub | UL94 V-0 | Coax Signal | 2 (DA A) - 11C1 11W1 | Receptacle Female Sockets | 4-40 | 2 | Gold | Through Hole | Board Lock Shielded | Solder | 1 | 10 | 30 Áin | 0.76 Ám | ||||||
 EDAC Inc. | Black | Polyester Thermoplastic | -55 C | 125 °C | 125 VDC | Copper Alloy | Combo D-Sub | UL94 V-0 | Signal and Power | 2 (DA A) - 11C1 11W1 | Receptacle Female Sockets | Board Side (M3) | 2 | Gold | Free Hanging (In-Line) | 10 | 1 | Shielded | 10A 5A | 30 Áin | 0.76 Ám | ||||||
 EDAC Inc. | Black | Polyester Thermoplastic | -55 C | 125 °C | 125 VDC | Copper Alloy | Combo D-Sub | UL94 V-0 | Coax Signal | 2 (DA A) - 11C1 11W1 | Receptacle Female Sockets | Flash | Board Side (M3) | 2 | Gold | Through Hole | Shielded | Solder | 1 | 10 | |||||||
 EDAC Inc. | Black | Polyester Thermoplastic | -55 C | 125 °C | 125 VDC | Copper Alloy | Combo D-Sub | UL94 V-0 | Coax Signal | 2 (DA A) - 11C1 11W1 | Receptacle Female Sockets | Flash | Board Side (4-40) | 2 | Gold | Through Hole | Board Lock Shielded | Solder | 1 | 10 | |||||||
 EDAC Inc. | Black | Polyester Thermoplastic | -55 C | 125 °C | 125 VDC | Copper Alloy | Combo D-Sub | UL94 V-0 | Signal and Power | 2 (DA A) - 11C1 11W1 | Receptacle Female Sockets | Board Side (M3) | 2 | Gold | Through Hole | 10 | 1 | Shielded | Solder | 10A 5A | 30 Áin | 0.76 Ám |
