S-1133 Series

Catalog

IC REG LINEAR 1.6V 300MA SOT89-5

Part	Protection Features	Voltage - Input (Max) [Max]	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Current - Supply (Max) [Max]	Number of Regulators	Voltage - Output (Min/Fixed)	PSRR	Voltage Dropout (Max) [Max]	Current - Output	Current - Quiescent (Iq)	Mounting Type	Output Configuration	Package / Case	Voltage Dropout (Max)	Voltage - Output (Min/Fixed) [Min]	Voltage - Output (Max) [Max]	Output Type
ABLIC Inc. S-1133B16-U5T1U	Over Current Thermal Shutdown	10 V	Enable	85 C	-40 ¯C	SOT-89-5	90 µA	1	1.6 V	65 dB	0.58 V	300 mA	1 µA	Surface Mount	Positive	SOT-89-5/6
ABLIC Inc. S-1133B14-U5T1G	Over Current Thermal Shutdown	10 V	Enable	85 C	-40 ¯C	SOT-89-5	90 µA	1		70 db		300 mA	1 µA	Surface Mount	Positive	SOT-89-5/6	0.68 V	1.4 V
ABLIC Inc. S-1133B00-U5T1U	Over Current Thermal Shutdown	10 V	Enable	85 C	-40 ¯C	SOT-89-5	90 µA	1	1.8 V			300 mA	1 µA	Surface Mount	Positive	SOT-89-5/6			8.2 V	Adjustable
ABLIC Inc. S-1133B32-U5T1U	Over Current Thermal Shutdown	10 V	Enable	85 C	-40 ¯C	SOT-89-5	90 µA	1	3.2 V	60 dB	0.19 V	300 mA	1 µA	Surface Mount	Positive	SOT-89-5/6
ABLIC Inc. S-1133B40-U5T1U	Over Current Thermal Shutdown	10 V	Enable	85 C	-40 ¯C	SOT-89-5	90 µA	1	4 V	60 dB	0.15 V	300 mA	1 µA	Surface Mount	Positive	SOT-89-5/6
ABLIC Inc. S-1133B21-U5T1U	Over Current Thermal Shutdown	10 V	Enable	85 C	-40 ¯C	SOT-89-5	90 µA	1	2.1 V	65 dB	0.23 V	300 mA	1 µA	Surface Mount	Positive	SOT-89-5/6
ABLIC Inc. S-1133B56-U5T1U	Over Current Thermal Shutdown	10 V	Enable	85 C	-40 ¯C	SOT-89-5	90 µA	1	5.6 V	60 dB	0.15 V	300 mA	1 µA	Surface Mount	Positive	SOT-89-5/6

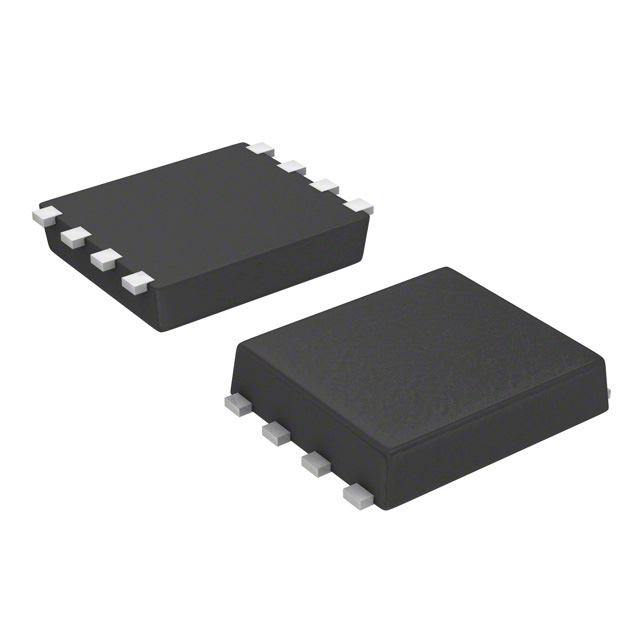

ABLIC Inc. S-1133B56-I8T1U	Over Current Thermal Shutdown	10 V	Enable	85 C	-40 ¯C	SNT-8A	90 µA	1	5.6 V	60 dB	0.15 V	300 mA	1 µA	Surface Mount	Positive
ABLIC Inc. S-1133B42-I8T1U	Over Current Thermal Shutdown	10 V	Enable	85 C	-40 ¯C	SNT-8A	90 µA	1	4.2 V	60 dB	0.15 V	300 mA	1 µA	Surface Mount	Positive
ABLIC Inc. S-1133B52-U5T1U	Over Current Thermal Shutdown	10 V	Enable	85 C	-40 ¯C	SOT-89-5	90 µA	1	5.2 V	60 dB	0.15 V	300 mA	1 µA	Surface Mount	Positive	SOT-89-5/6
