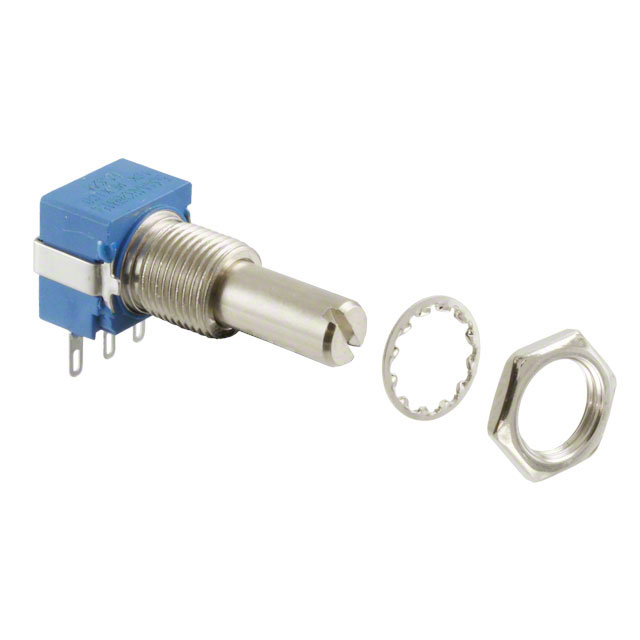

53AAD Series
Manufacturer: Bourns Inc.
Beta
⌘K
PANEL CONTROL - 1/2" (12.5MM) SQ 1-TURN /TRAY PACKAGING ROHS COMPLIANT: YES
| Part | Size - Body [y] | Size - Body [x] | Size - Body [y] | Size - Body [x] | Rotation | Resistive Material | Features | Adjustment Type | Tolerance | Number of Gangs | Mounting Type | Taper | Actuator Type | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Resistance (Ohms) | Power (Watts) | Power (Watts) | Temperature Coefficient | Number of Turns | Actuator Length [x] | Actuator Length [x] | Bushing Thread | Built in Switch | Termination Style | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | 290 ° | Conductive Plastic | Sealed | User Defined | 20 % | 1 | Panel Mount | Linear | Slotted | 6.35 mm | 0.25 in | 1k | 0.5 W | 0.5 W | 1000 ppm/°C | 1 | 0.875 in | 22.23 mm | 3/8-32 | None | Solder Lug | |
Bourns Inc. | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | 290 ° | Conductive Plastic | Sealed | User Defined | 10 % | 1 | Panel Mount | Logarithmic | Slotted | 6.35 mm | 0.25 in | 0.25 W | 0.25 W | 1000 ppm/°C | 1 | 0.875 in | 22.23 mm | 3/8-32 | None | Solder Lug | 1 MΩ | |
Bourns Inc. | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | 290 ° | Conductive Plastic | Sealed | User Defined | 10 % | 1 | Panel Mount | Logarithmic | Slotted | 6.35 mm | 0.25 in | 0.25 W | 0.25 W | 1000 ppm/°C | 1 | 0.875 in | 22.23 mm | 3/8-32 | None | Solder Lug | 500 kOhms | |
Bourns Inc. | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | 290 ° | Conductive Plastic | Sealed | User Defined | 10 % | 1 | Panel Mount | Linear | Slotted | 6.35 mm | 0.25 in | 0.5 W | 0.5 W | 1000 ppm/°C | 1 | 0.875 in | 22.23 mm | 3/8-32 | None | Solder Lug | 250000 Ohms |
