86BS Series

Catalog

SENSOR 15PSIG 14BIT

Part	Pressure Type	Applications	Port Style	Output	Package / Case	Termination Style	Output Type	Accuracy	Features	Operating Temperature [Max]	Operating Temperature [Min]	Operating Pressure [custom]	Operating Pressure [custom]	Maximum Pressure [Max]	Maximum Pressure [Max]	Voltage - Supply	Operating Pressure	Operating Pressure
TE Connectivity Measurement Specialties 86BSD015PG-3AIC	Vented Gauge	Board Mount	No Port	14 b	Module	Cable with Connector	I2C SPI	0.25 %	Amplified Output Temperature Compensated	125 °C	-40 °C	15 PSI	103.42 kPa	30 PSI	206.84 kPa	3.3 V
TE Connectivity Measurement Specialties 86BSD030PA-3AIC		Board Mount	No Port	14 b	Module	Cable with Connector	I2C SPI	0.25 %	Amplified Output Temperature Compensated	125 °C	-40 °C			60 PSI	413.69 kPa	3.3 V	206.84 kPa	30 PSI

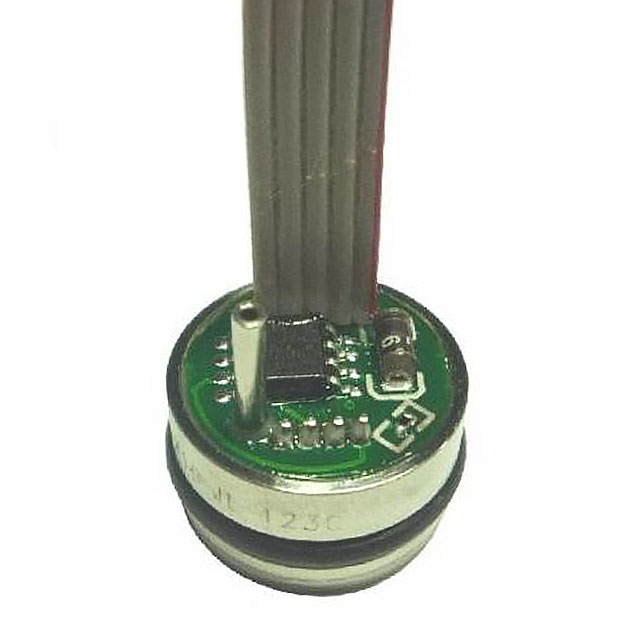

TE Connectivity Measurement Specialties 86BSD150PA-3AIC		Board Mount	No Port	14 b	Module	Cable with Connector	I2C	0.25 %	Amplified Output Temperature Compensated	125 °C	-40 °C			300 PSI	2068.43 kPa	3.3 V	1034.21 kPa	150 PSI
