PE826 Series

Catalog

DC BLOCK: BNC 0.01-4GHZ

Part	Insertion Loss	Center Contact Material	Body Material	Frequency - Max [Max]	Convert To (Adapter End)	Center Contact Plating	Style	Fastening Type	Conversion Type	Mounting Type	Impedance	Adapter Series	Convert From (Adapter End)	Adapter Type	Adapter Series [Min]	Adapter Series [Max]	Convert From (Adapter End)	Convert From (Adapter End)	Convert To (Adapter End) [custom]	Body Finish	Fastening Type

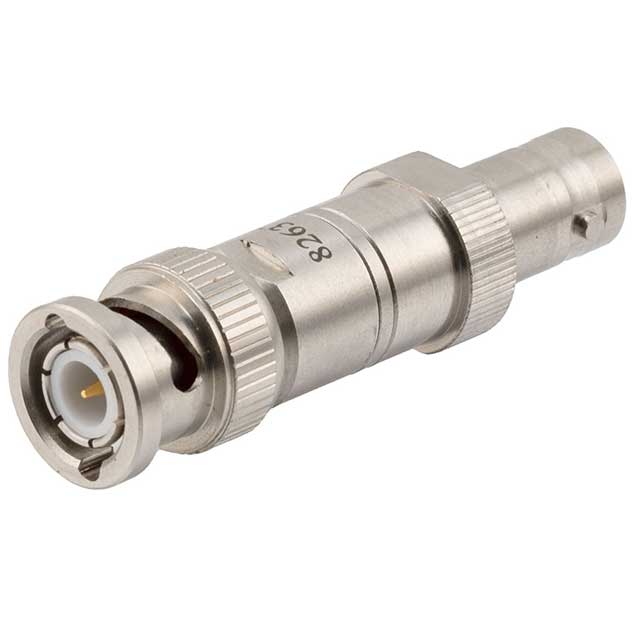

Pasternack PE8263	0.5 dB	Bronze	Stainless Steel	4 GHz	BNC Plug Male Pin	Gold	Straight	Bayonet Lock	Same Series	Free Hanging (In-Line)	50 Ohms	BNC to BNC	BNC Jack Female Socket	Plug to Jack

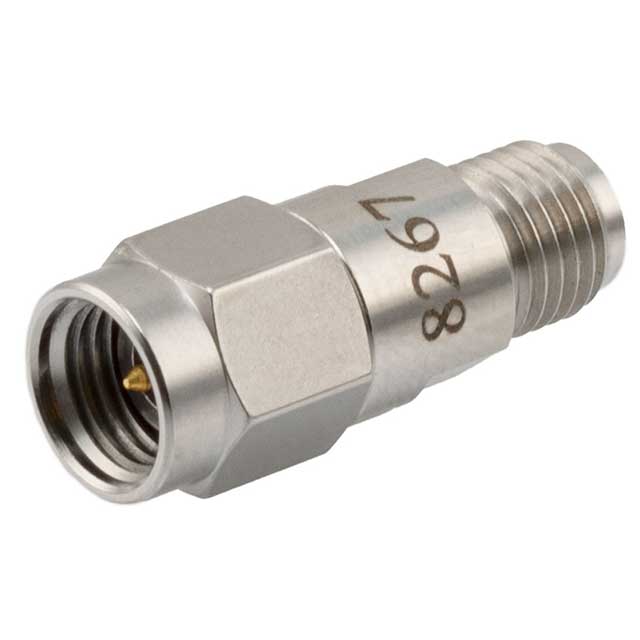

Pasternack PE8267	1.3 dB	Beryllium Copper	Stainless Steel	40 GHz	2.92mm (OS-2.9) Plug Male Pin	Gold	Straight		Same Series	Free Hanging (In-Line)	50 Ohms		Jack Female Socket	Plug to Jack	2.92 mm	2.92 mm	OS-2.9	2.92 mm

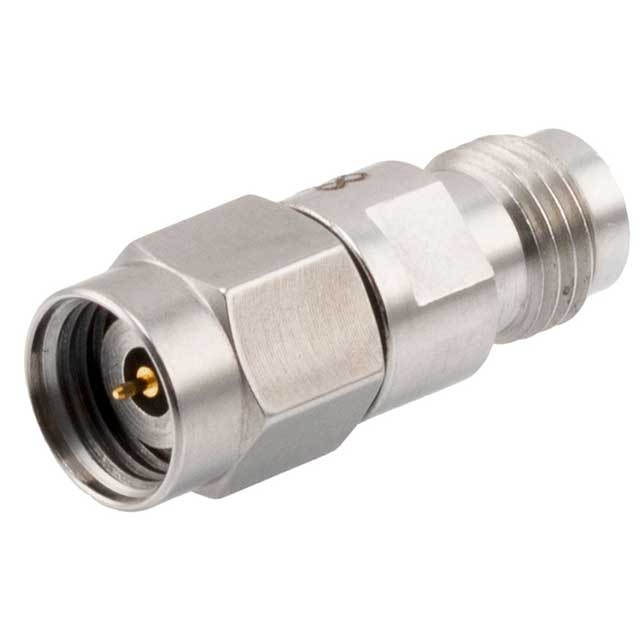

Pasternack PE8268	1.3 dB	Beryllium Copper	Stainless Steel	50 GHz		Gold	Straight		Same Series	Free Hanging (In-Line)	50 Ohms		APC-2.4 Female Socket Jack OS-50	Plug to Jack	2.4 mm	2.4 mm		2.4 mm	2.4 mm

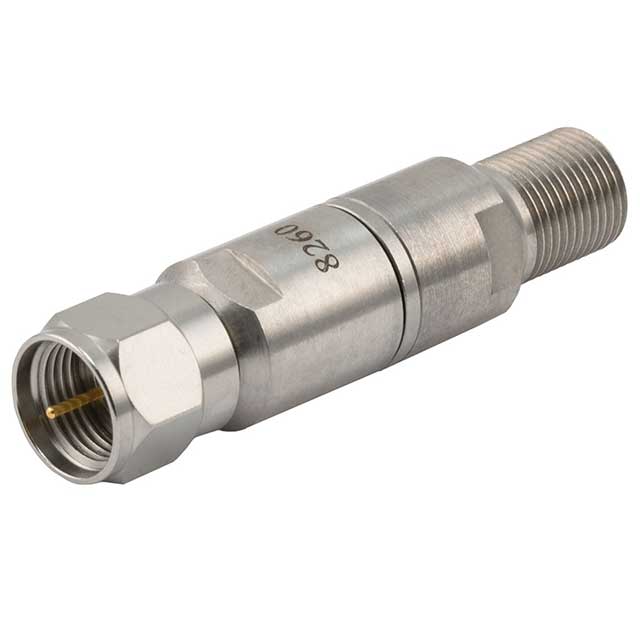

Pasternack PE8260	0.5 dB	Beryllium Copper Bronze	Stainless Steel	3 GHz	F Plug Male Pin	Gold	Straight		Same Series	Free Hanging (In-Line)	75 Ohms	F to F	F Jack Female Socket	Plug to Jack

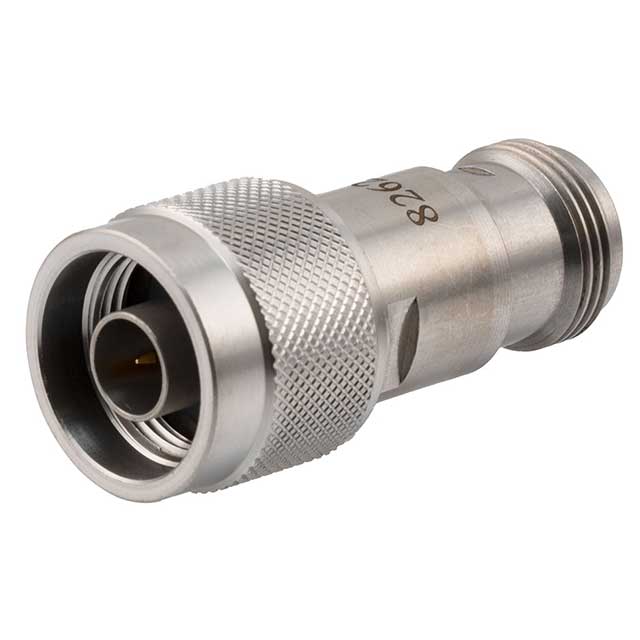

Pasternack PE8262	0.5 dB	Beryllium Copper Brass	Stainless Steel	3 GHz	N Plug Male Pin	Gold	Straight		Same Series	Free Hanging (In-Line)	75 Ohms	N to N	Female Socket N Jack	Plug to Jack

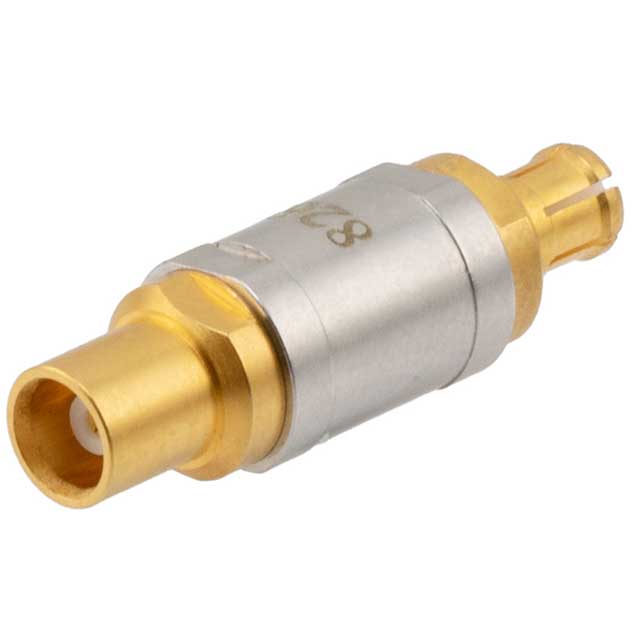

Pasternack PE8269	0.5 dB	Beryllium Copper Brass	Brass	6000 MHz	MCX Plug Male Pin	Gold	Straight	Snap-On	Same Series	Free Hanging (In-Line)	50 Ohms	MCX to MCX	Female Socket MCX Jack	Plug to Jack						Tri-Metal	Snap-On

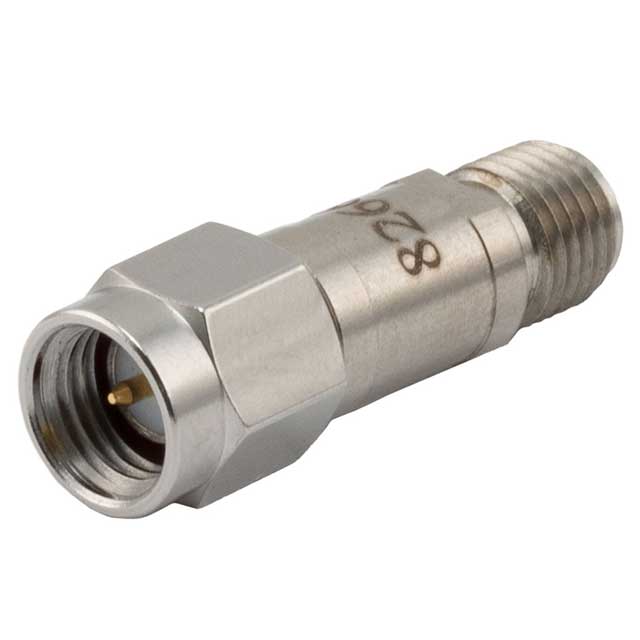

Pasternack PE8266	0.6 dB	Beryllium Copper	Stainless Steel	18 GHz	SMA Plug Male Pin	Gold	Straight		Same Series	Free Hanging (In-Line)	50 Ohms	SMA to SMA	Female Socket SMA Jack	Plug to Jack

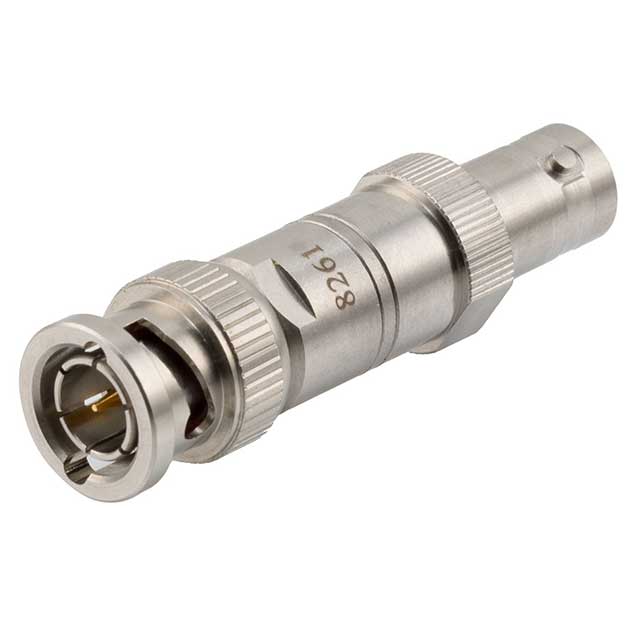

Pasternack PE8261	0.5 dB	Brass Bronze	Stainless Steel	3 GHz	BNC Plug Male Pin	Gold	Straight	Bayonet Lock	Same Series	Free Hanging (In-Line)	75 Ohms	BNC to BNC	BNC Jack Female Socket	Plug to Jack

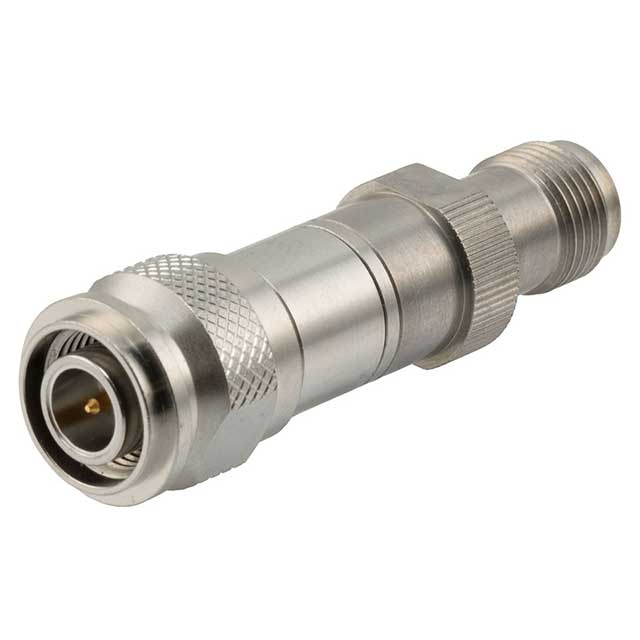

Pasternack PE8264	0.75 dB	Beryllium Copper	Stainless Steel	18 GHz	TNC Plug Male Pin	Gold	Straight		Same Series	Free Hanging (In-Line)	50 Ohms	TNC to TNC	Female Socket TNC Jack	Plug to Jack

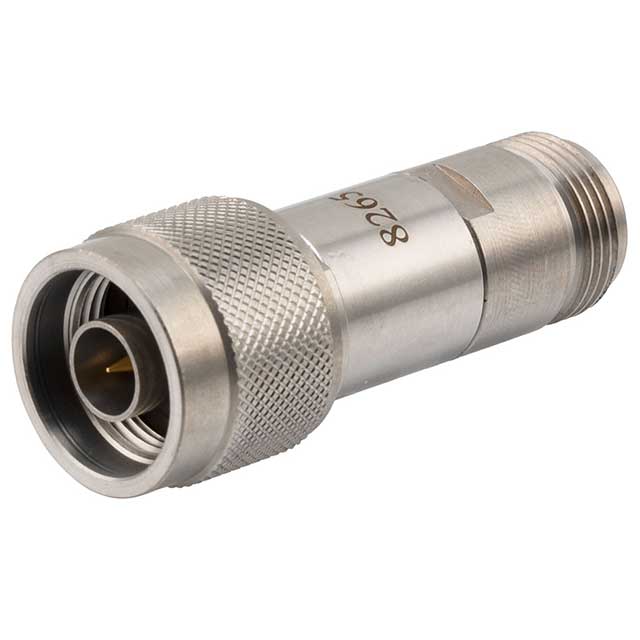

Pasternack PE8265	0.75 dB	Beryllium Copper	Stainless Steel	18 GHz	N Plug Male Pin	Gold	Straight		Same Series	Free Hanging (In-Line)	50 Ohms	N to N	Female Socket N Jack	Plug to Jack
