LD09S24 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

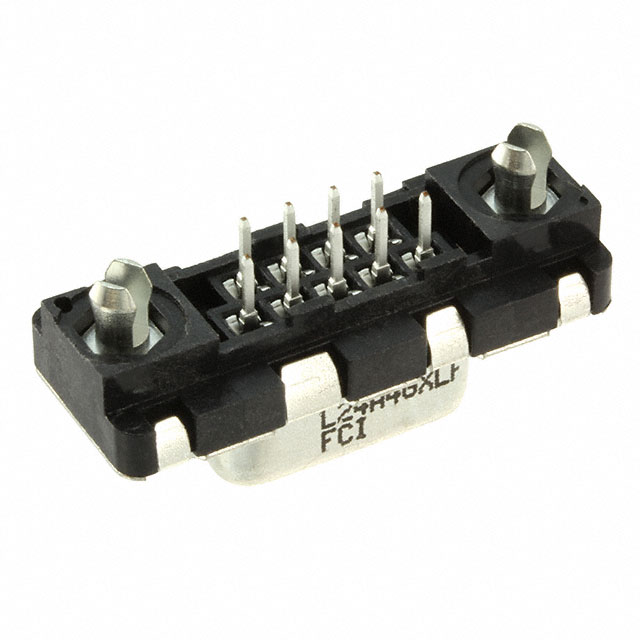

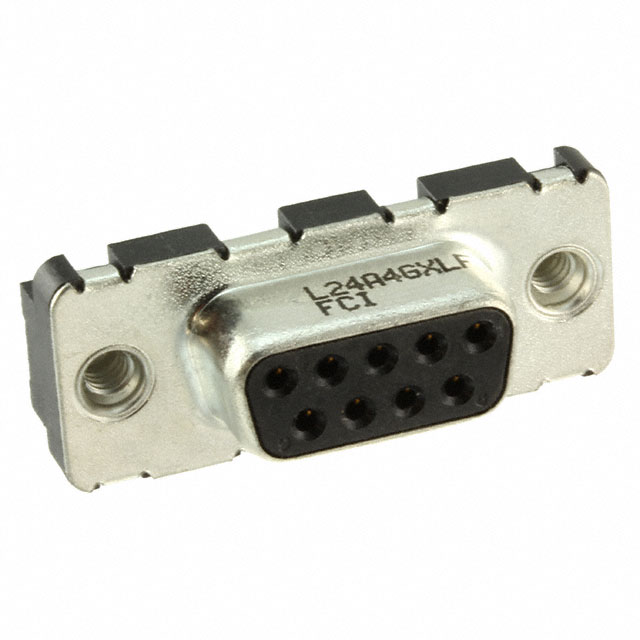

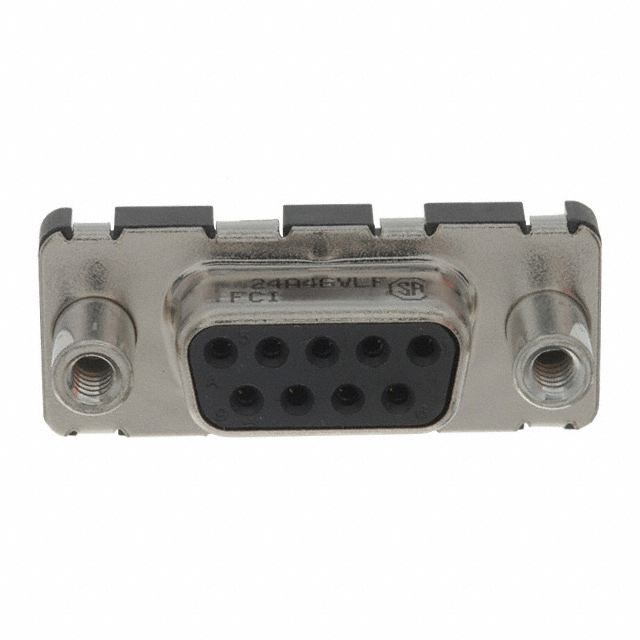

CONN D-SUB RCPT 9POS VERT SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Material | Color | Voltage Rating | Termination | Flange Feature | Connector Type | Features | Contact Finish | Mounting Type | Material Flammability Rating | Number of Rows [custom] | Number of Positions | Contact Finish Thickness | Current Rating (Amps) | Shell Material, Finish | Connector Style | Contact Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | -55 C | 105 ░C | Thermoplastic | Copper Alloy | Black | 250 V | Solder | 4-40 Mating Side Female Screwlock | Receptacle Female Sockets | Board Lock | Gold | Through Hole | UL94 V-0 | 2 | 9 | Flash | 5 A | Steel Tin-Nickel Plated | D-Sub | Signal | 1 | DE E | |
 Amphenol ICC (FCI) | -55 C | 105 ░C | Thermoplastic | Copper Alloy | Black | 250 V | Solder | Housing/Shell | Receptacle Female Sockets | Board Lock | Gold | Through Hole | UL94 V-0 | 2 | 9 | Flash | 5 A | Steel Tin-Nickel Plated | D-Sub | Signal | 1 | DE E | 4-40 |
