04JQ Series

Catalog

CONN RCPT 4POS 0.098 TIN PCB R/A

Part	Contact Material	Contact Shape	Insulation Material	Mounting Type	Insulation Color	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Number of Positions Loaded	Termination	Fastening Type	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Material Flammability Rating	Insulation Height [custom]	Insulation Height [custom]	Connector Type	Number of Positions	Contact Type	Mated Stacking Heights	Insulation Height [z]	Insulation Height [z]
JST Sales America Inc. 04JQ-ST	Phosphor Bronze	Square	Nylon 6/6 Polyamide (PA66)	Right Angle Through Hole	Natural	2.5 mm	0.098 in	3 A	All	Press-Fit Solder	Friction Lock	250 V	85 °C	-25 °C	1	UL94 V-0	0.236 "	6 mm	Receptacle	4	Female Socket

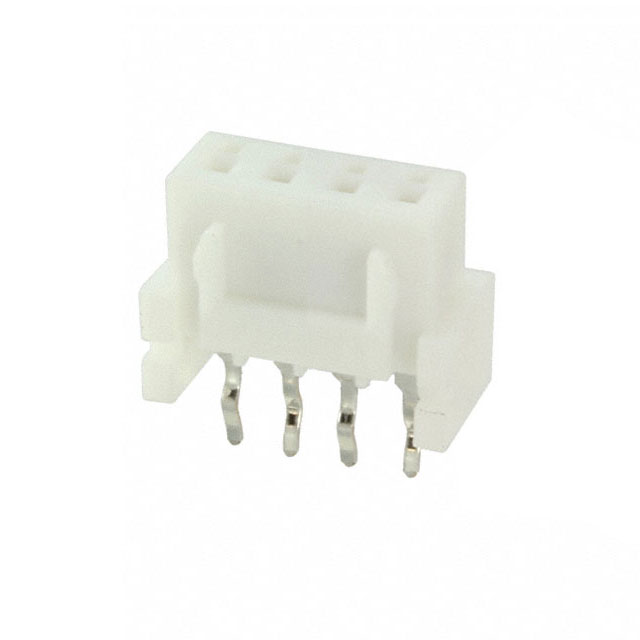

JST Sales America Inc. 04JQ-BT	Phosphor Bronze	Square	Nylon 6/6 Polyamide (PA66)	Through Hole	Natural	2.5 mm	0.098 in	3 A	All	Press-Fit Solder	Friction Lock	250 V	85 °C	-25 °C	1	UL94 V-0			Receptacle	4	Female Socket	11.8 mm	9.5 mm	0.374 in
