TLC59282 Series

16-channel constant current LED driver with 4-channel Grouped delay

Catalog

16-channel constant current LED driver with 4-channel Grouped delay

Part	Voltage - Output	Number of Outputs	Type	Current - Output / Channel [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	Topology	Supplier Device Package	Voltage - Supply (Min) [Min]	Package / Case	Mounting Type	Voltage - Supply (Max)	Utilized IC / Part	Outputs and Type	Outputs and Type	Supplied Contents	Voltage - Input [Max]	Voltage - Input [Min]	Package / Case [custom]
Texas Instruments TLC59282RGER	17 V	16	Linear	45 mA	85 °C	-40 °C	35 MHz	Shift Register	24-VQFN (4x4)	3 V	24-VFQFN Exposed Pad	Surface Mount	5.5 V

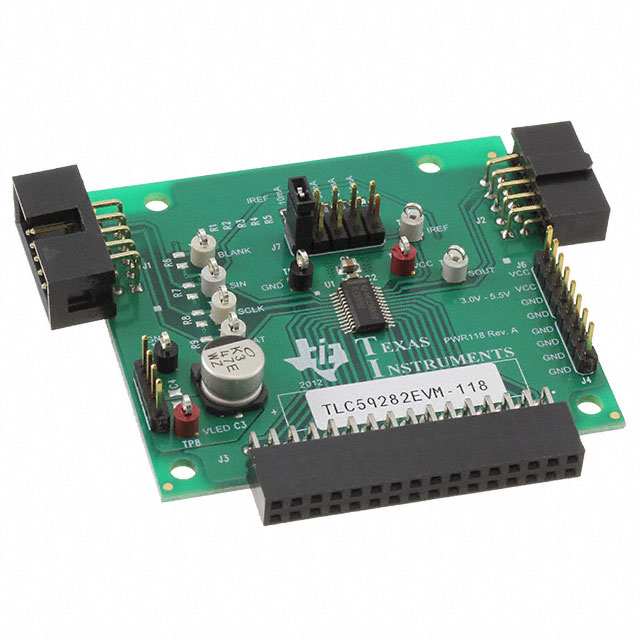

Texas Instruments TLC59282EVM-118				40 mA										TLC59282	16	Non-Isolated	Board(s)	5.5 V	3 V
Texas Instruments TLC59282RGET	17 V	16	Linear	45 mA	85 °C	-40 °C	35 MHz	Shift Register	24-VQFN (4x4)	3 V	24-VFQFN Exposed Pad	Surface Mount	5.5 V
Texas Instruments TLC59282DBQR	17 V	16	Linear	45 mA	85 °C	-40 °C	35 MHz	Shift Register	24-SSOP	3 V	24-SSOP	Surface Mount	5.5 V							0.154 " 3.9 mm

Catalog

16-channel constant current LED driver with 4-channel Grouped delay

Key Features

• 16 Channels, Constant-Current Sink Output with On/Off ControlCapability (Constant-Current Sink):35 mA (VCC≤ 3.6 V), 45 mA (VCC> 3.6 V)LED Power-Supply Voltage up to 17 VVCC= 3 V to 5.5 VConstant-Current Accuracy:Channel-to-Channel = ±0.6% (typ),±2% (max)Device-to-Device = ±1% (typ), ±3% (max)Low Saturation Voltage: 0.31 V at 20 mA (typ)TA= +25°C, One Channel OnCMOS Logic Level I/OData Transfer Rate: 35 MHzBLANK Pulse Width: 30 nsFour-Channel Grouped Delay forNoise ReductionOperating Temperature: –40°C to +85°C16 Channels, Constant-Current Sink Output with On/Off ControlCapability (Constant-Current Sink):35 mA (VCC≤ 3.6 V), 45 mA (VCC> 3.6 V)LED Power-Supply Voltage up to 17 VVCC= 3 V to 5.5 VConstant-Current Accuracy:Channel-to-Channel = ±0.6% (typ),±2% (max)Device-to-Device = ±1% (typ), ±3% (max)Low Saturation Voltage: 0.31 V at 20 mA (typ)TA= +25°C, One Channel OnCMOS Logic Level I/OData Transfer Rate: 35 MHzBLANK Pulse Width: 30 nsFour-Channel Grouped Delay forNoise ReductionOperating Temperature: –40°C to +85°C

Description

The TLC59282 is a 16-channel, constant-current sink driver. Each channel can be individually controlled via a simple serial communications protocol that is compatible with 3.3 V or 5 V CMOS logic levels, depending on the operating VCC. Once the serial data buffer is loaded, a rising edge on LATCH transfers the data to the LEDx outputs. The BLANK pin can be used to turn off all OUTn outputs during power-on and output data latching to prevent unwanted image displays during these times. The constant-current value of all 16 channels is set by a single external resistor. Multiple TLC59282s can be cascaded together to control additional LEDs from the same processor. The TLC59282 is a 16-channel, constant-current sink driver. Each channel can be individually controlled via a simple serial communications protocol that is compatible with 3.3 V or 5 V CMOS logic levels, depending on the operating VCC. Once the serial data buffer is loaded, a rising edge on LATCH transfers the data to the LEDx outputs. The BLANK pin can be used to turn off all OUTn outputs during power-on and output data latching to prevent unwanted image displays during these times. The constant-current value of all 16 channels is set by a single external resistor. Multiple TLC59282s can be cascaded together to control additional LEDs from the same processor.
