745-068 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 68POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Number of Positions/Bay/Row	Number of Rows [custom]	Pitch	Pitch	Color	Number of Positions	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Gender	Mounting Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Read Out	Card Type	Termination Rows	Number of Rows
EDAC Inc. 745-068-520-206	2	Polyester Thermoplastic	34	2	0.1 "	2.54 mm	Black	68 positions	Cantilever	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	Through Hole	Press-Fit	-40 C	105 ░C	Gold	Dual	Non Specified - Dual Edge
EDAC Inc. 745-068-522-201	2	Polyester Thermoplastic	34	2	0.1 "	2.54 mm	Black	68 positions	Cantilever	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	Through Hole	Press-Fit	-40 C	105 ░C	Gold	Dual	Non Specified - Dual Edge
EDAC Inc. 745-068-540-101		Polyester Thermoplastic	68		0.1 "	2.54 mm	Black	68 positions	Cantilever	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	Through Hole	Press-Fit Wire Wrap	-40 C	105 ░C	Gold	Single	Non Specified - Single Edge	1	1

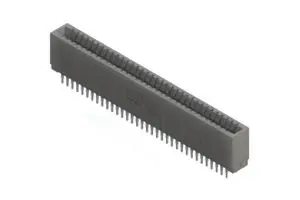

EDAC Inc. 745-068-520-201	2	Polyester Thermoplastic	34	2	0.1 "	2.54 mm	Black	68 positions	Cantilever	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	Through Hole	Press-Fit	-40 C	105 ░C	Gold	Dual	Non Specified - Dual Edge
EDAC Inc. 745-068-545-106		Polyester Thermoplastic	68		0.1 "	2.54 mm	Black	68 positions	Cantilever	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	Through Hole	Press-Fit	-40 C	105 ░C	Gold	Single	Non Specified - Single Edge	1	1
EDAC Inc. 745-068-525-206	2	Polyester Thermoplastic	34	2	0.1 "	2.54 mm	Black	68 positions	Cantilever	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	Through Hole	Press-Fit	-40 C	105 ░C	Gold	Dual	Non Specified - Dual Edge
EDAC Inc. 745-068-522-206	2	Polyester Thermoplastic	34	2	0.1 "	2.54 mm	Black	68 positions	Cantilever	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	Through Hole	Press-Fit	-40 C	105 ░C	Gold	Dual	Non Specified - Dual Edge

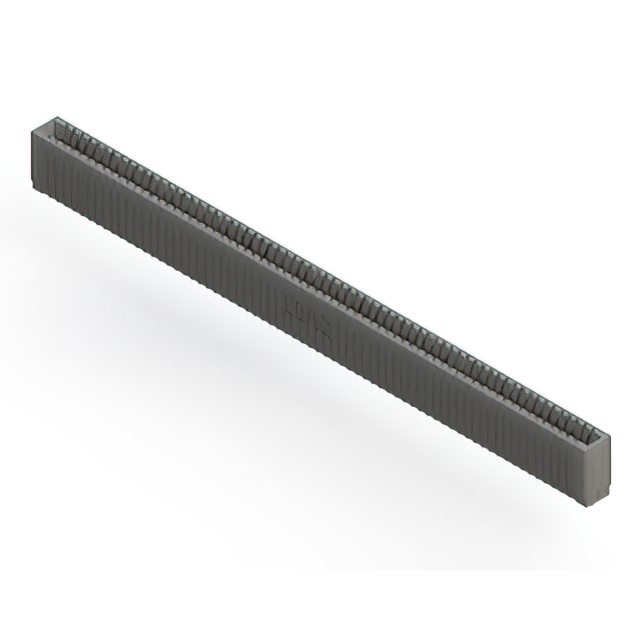

EDAC Inc. 745-068-525-101		Polyester Thermoplastic	68		0.1 "	2.54 mm	Black	68 positions	Cantilever	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	Through Hole	Press-Fit	-40 C	105 ░C	Gold	Single	Non Specified - Single Edge	1	1
EDAC Inc. 745-068-541-106		Polyester Thermoplastic	68		0.1 "	2.54 mm	Black	68 positions	Cantilever	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	Through Hole	Press-Fit Wire Wrap	-40 C	105 ░C	Gold	Single	Non Specified - Single Edge	1	1

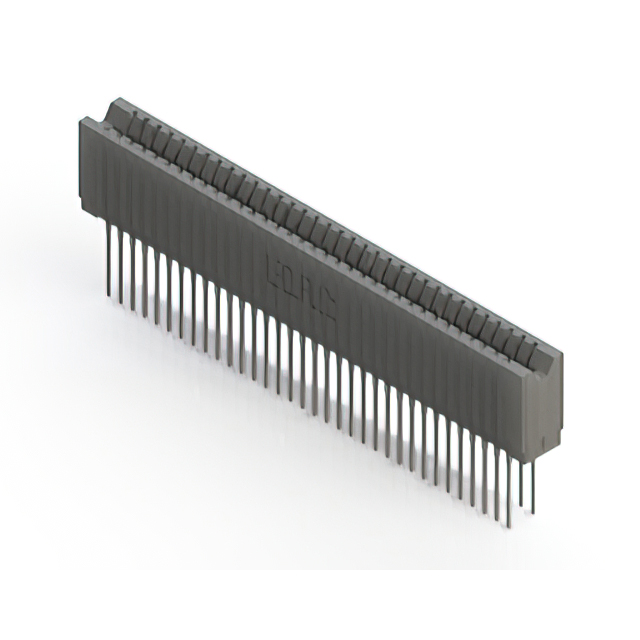

EDAC Inc. 745-068-540-206	2	Polyester Thermoplastic	34	2	0.1 "	2.54 mm	Black	68 positions	Cantilever	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	Through Hole	Press-Fit Wire Wrap	-40 C	105 ░C	Gold	Dual	Non Specified - Dual Edge
