APETD3528 Series

Catalog

SINGLE COLOR LEDS BLUE 470NM 400MCD 60DEG WATER CLR

Part	Lens Color	Color	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Configuration	Wavelength - Peak	Size / Dimension [x]	Size / Dimension [y]	Current - Test	Lens Style	Lens Size [diameter]	Supplier Device Package	Package / Case	Package / Case	Mounting Type	Lens Transparency	Wavelength - Dominant	Viewing Angle	Height (Max) [Max] [z]
Kingbright APETD3528QBC/D	Colorless	Blue	400 mcd	3.3 V	Standard	468 nm	3.5 mm	2.8 mm	20 mA	Round with Domed Top	2.6 mm Dia	Chip LED	3528 Metric	1411	Surface Mount	Clear	470 nm	60 °	3.2 mm

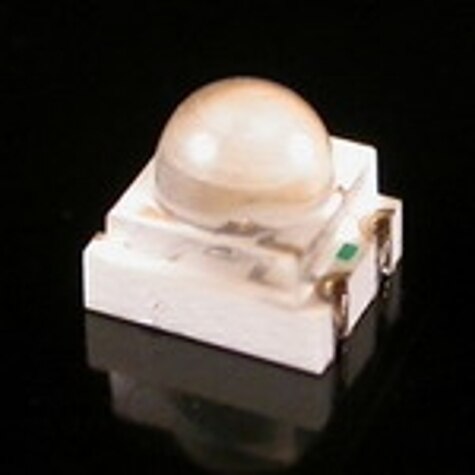

Kingbright APETD3528SYC/J3-PRV	Colorless	Yellow	1500 mcd	2 V	Standard	590 nm	3.5 mm	2.8 mm	20 mA	Round with Domed Top	2.6 mm Dia	Chip LED	3528 Metric	1411	Surface Mount	Clear	589 nm	60 °	3.2 mm
Kingbright APETD3528SEC/J3-PRV	Colorless	Red	4200 mcd	2.2 V	Standard	640 nm	3.5 mm	2.8 mm	20 mA	Round with Domed Top	2.6 mm Dia	Chip LED	3528 Metric	1411	Surface Mount	Clear	625 nm	60 °	3.2 mm
Kingbright APETD3528ZGC	Colorless	Green	1800 mcd	3.3 V	Standard	515 nm	3.5 mm	2.8 mm	20 mA	Round with Domed Top	2.6 mm Dia	Chip LED	3528 Metric	1411	Surface Mount	Clear	525 nm	60 °	3.2 mm
Kingbright APETD3528CGCK	Colorless	Green	200 mcd	2.1 V	Standard		3.5 mm	2.8 mm	20 mA	Round with Domed Top	2.6 mm Dia	Chip LED	3528 Metric	1411	Surface Mount	Clear	570 nm	60 °	3.2 mm
Kingbright APETD3528SEC	Colorless		900 mcd	2 V	Standard	610 nm	3.5 mm	2.8 mm	20 mA	Round with Domed Top	2.6 mm Dia	Chip LED	3528 Metric	1411	Surface Mount	Clear	601 nm	60 °	3.2 mm
