TTGD Series

Catalog

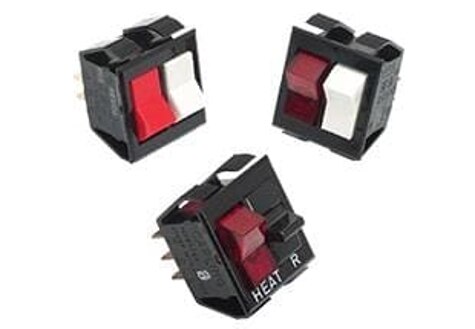

ROCKER SWITCHES TTGDTC101TBB

Part	Color - Actuator/Cap	Actuator Marking	Electrical Life	Operating Temperature [Max]	Circuit	Voltage Rating - AC	Switch Function	Mounting Type	Approval Agency	Current Rating (Amps)	Actuator Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination Style
Carling Technologies TTGD-TC101-TB-B	Black	No Marking	50000 Cycles	85 °C	DPDT	125 V	On-Off-On	Panel Mount Snap-In	CSA UL	10 A	Concave (Standard V)	25.4 mm	28.57 mm
Carling Technologies TTGD-TC101-TR-B	Red	No Marking	50000 Cycles	85 °C	DPDT	125 V	On-Off-On	Panel Mount Snap-In	CSA UL	10 A	Concave (Standard V)	25.4 mm	28.57 mm
Carling Technologies TTGD-TC201-TW-W	White	No Marking	50000 Cycles	85 °C	DPDT	125 V	On-Off-On	Panel Mount Snap-In	CSA UL	15 A	Concave (Standard V)	25.4 mm	28.57 mm
Carling Technologies TTGD-TC205-TB-B	Black	No Marking	50000 Cycles	85 °C	DPDT	125 V	On-Off-On	Panel Mount Snap-In	CSA UL	15 A	Concave (Standard V)	25.4 mm	28.57 mm	Wire Leads
Carling Technologies TTGD-TC201-TB-B	Black	No Marking	50000 Cycles	85 °C	DPDT	125 V	On-Off-On	Panel Mount Snap-In	CSA UL	15 A	Concave (Standard V)	25.4 mm	28.57 mm
Carling Technologies TTGD-TB101-TW-B	White	No Marking	50000 Cycles	85 °C	DPDT	125 V	On-On	Panel Mount Snap-In	CSA UL	10 A	Concave (Standard V)	25.4 mm	28.57 mm
