45173 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

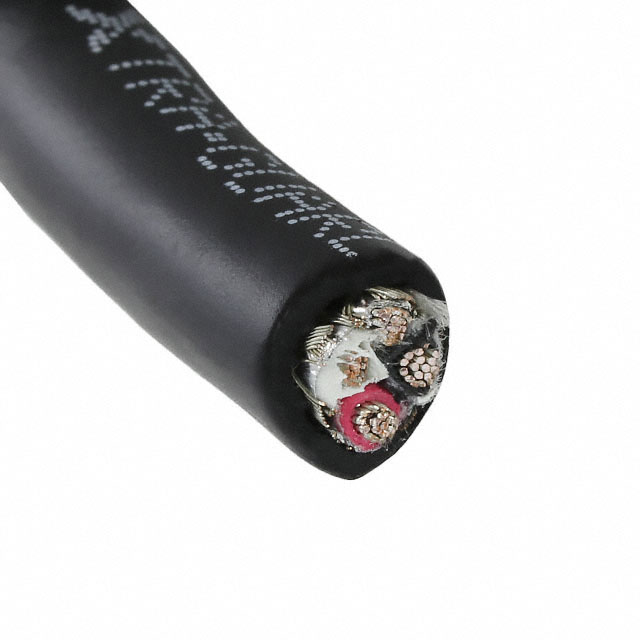

CABLE 3COND 16AWG BLK SHLD FEET
| Part | Conductor Material | Jacket Color | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Spool Size | Spool Size | Operating Temperature [Min] | Operating Temperature [Max] | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Length | Ratings | Wire Gauge | Cable Type | Shield Coverage | Shield Material | Features | Number of Conductors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | Black | Braid Foil | 8.08 mm | 0.318 in | Thermoplastic Elastomer (TPE) | 1.143 mm | 0.045 in | 1000 ft | 304.8 m | -50 °C | 125 °C | 300 V | 19 | 0.0117 in | Thermoplastic Elastomer (TPE) | Enter Number of Feet in Order Quantity | ISO 10993 | 16 AWG | Multi-Conductor | 70 % 100 % | Copper Tinned Suprashield® | Biological Compatibility Drain Wire Rip Cord | 3 |
