052689 Series

Manufacturer: Molex

Catalog

CONN FFC FPC 16POS 0.5MM R/A

Part	Cable End Type	FFC, FCB Thickness	Number of Positions	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Termination	Mounting Type	Current Rating (Amps)	Features	Flat Flex Type	Contact Material	Pitch [x]	Pitch [x]	Housing Material	Connector/Contact Type	Voltage Rating	Number of Positions
Molex 0526891687	Straight Tapered	0.3 mm	16	UL94 V-0	85 °C	-20 C	20	0.079 in	2 mm	39.4 Áin	1 Ám	Tin Bismuth	Solder	Surface Mount Right Angle	0.5 A	Solder Retention	FFC FPC	Phosphor Bronze	0.5 mm	0.02 in	Polyamide (PA46) Nylon 4/6	Contacts Top and Bottom	50 V
Molex 0526893087	Straight Tapered	0.3 mm		UL94 V-0	85 °C	-20 C	20	0.079 in	2 mm	39.4 Áin	1 Ám	Tin Bismuth	Solder	Surface Mount Right Angle	0.5 A	Solder Retention	FFC FPC	Phosphor Bronze	0.5 mm	0.02 in	Polyamide (PA46) Nylon 4/6	Contacts Top and Bottom	50 V	30

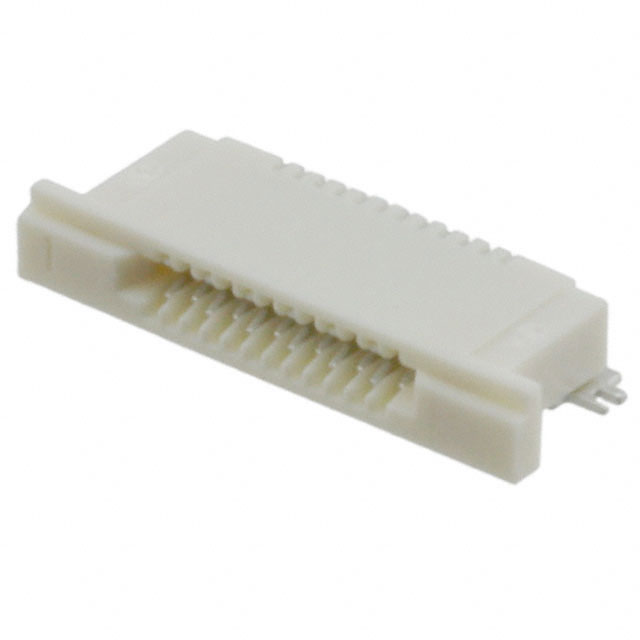

Molex 0526891287	Straight Tapered	0.3 mm		UL94 V-0	85 °C	-20 C	20	0.079 in	2 mm	39.4 Áin	1 Ám	Tin Bismuth	Solder	Surface Mount Right Angle	0.5 A	Solder Retention	FFC FPC	Phosphor Bronze	0.5 mm	0.02 in	Polyamide (PA46) Nylon 4/6	Contacts Top and Bottom	50 V	12

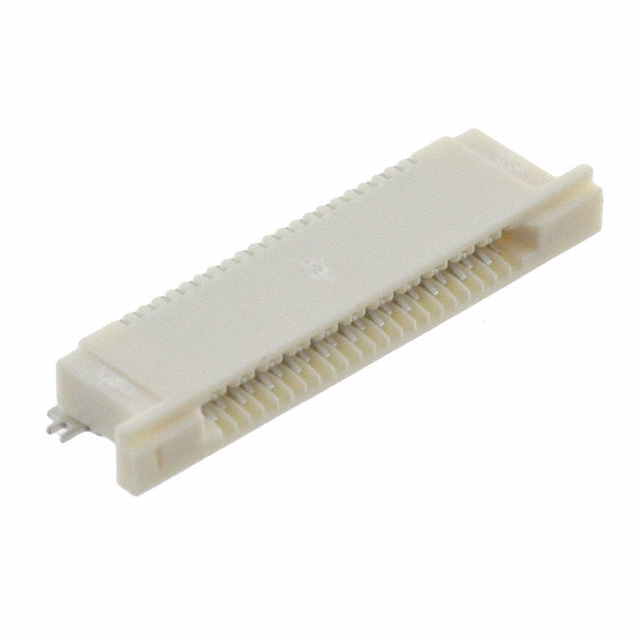

Molex 0526892287	Straight Tapered	0.3 mm		UL94 V-0	85 °C	-20 C	20	0.079 in	2 mm	39.4 Áin	1 Ám	Tin Bismuth	Solder	Surface Mount Right Angle	0.5 A	Solder Retention	FFC FPC	Phosphor Bronze	0.5 mm	0.02 in	Polyamide (PA46) Nylon 4/6	Contacts Top and Bottom	50 V	22 positions
Molex 0526892475	Straight Tapered	0.3 mm		UL94 V-0	85 °C	-20 C	20	0.079 in	2 mm			Gold	Solder	Surface Mount Right Angle	0.5 A	Solder Retention	FFC FPC	Phosphor Bronze	0.5 mm	0.02 in	Polyamide (PA46) Nylon 4/6	Contacts Top and Bottom	50 V	24
Molex 0526891087	Straight Tapered	0.3 mm		UL94 V-0	85 °C	-20 C	20	0.079 in	2 mm	39.4 Áin	1 Ám	Tin Bismuth	Solder	Surface Mount Right Angle	0.5 A	Solder Retention	FFC FPC	Phosphor Bronze	0.5 mm	0.02 in	Polyamide (PA46) Nylon 4/6	Contacts Top and Bottom	50 V	10
